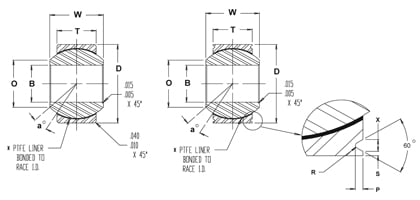

WSSX-T Wide Series, PTFU Lined Spherical Bearings

WSSX-T Wide Series, PTFU Lined Spherical Bearing

  • Ball - 440C, Stainless Steel, Heat Treated
  • Race - 14-4 PH, Stainless Steel, Heat Treated
  • Liner - PTFE Fabric
  • Sold Individually
Bearing B
Dia.
D
Dia.
W
Width
T
Width
O
Dia.
Ball
Dia.

Mis.
Angle
Ult.
Static
Radial
Ult.
Static
Axial
Ult.
Static
Osilating
Corresponding
Cup #
Plain
Part #
Grooved
Part #
+.0015
-.0005
+.0000
-.0005
+.005
-.002
+.005
-.005
REF. REF. REF. Load
(LBS)
Load
(LBS)
Load
(LBS)
WSSX3T WSSX3TV .1900 .6250 .437 .327 .301 .531 15 2,500 1,770 4,900 -
WSSX4T WSSX4TV .2500 .6250 .437 .327 .301 .531 15 5,500 1,770 4,900 -
WSSX5T WSSX5TV .3125 .6875 .437 .317 .360 .593 14 9,400 1,640 6,050 -
WSSX6T WSSX6TV .3750 .8125 .500 .406 .466 .687 8 13,700 2,630 8,310 LRP-15065
WSSX7T WSSX7TV .4375 .9375 .562 .442 .537 .781 10 20,700 3,650 11,750 -
WSSX8T WSSX8TV .5000 1.0000 .625 .505 .607 .875 9 21,400 4,970 14,950 LRP-15060
WSSX9T WSSX9TV .5625 1.1250 .687 .536 .721 1.000 10 26,600 5,370 18,100 -
WSSX10T WSSX10TV .6250 1.1875 .750 .567 .747 .062 12 29,000 6,130 20,250 LRP-15055
WSSX12T WSSX12TV .7500 1.3750 .875 .630 .845 1.250 13 37,000 7,730 26,200 LRP-15050
WSSX14T WSSX14TV .8750 1.6250 .875 .755 .995 1.375 6 65,200 10,800 33,600 LRP-15045
WSSX16T WSSX16TV 1.000 2.1250 1.375 1.005 1.269 1.875 12 104,000 19,300 56,250 LRP-15040
FKB-COMH24 - 1.5000 2.7500 1.375 1.094 1.860 2.312 8.5 135,950 - - PPM-UNIBALLCUP
* A trade mark of E.I Dupont de Nemours & Co., Inc.
NOTES: DIAMETER "B" AND "D" ARE CONCENTRIC WITHIN .005 T.I.R

Staking Groove Data
Bore Size S
Land
X
Groove
R
Rad.
P
Depth
Min. +.000
-.010
+.022
-.005
+.000
-.010
3 thru 5 .020 .045 .015 .030
6 thru 10 .030 .055 .020 .040
12 thru 16 .030 .080 .020 .060
