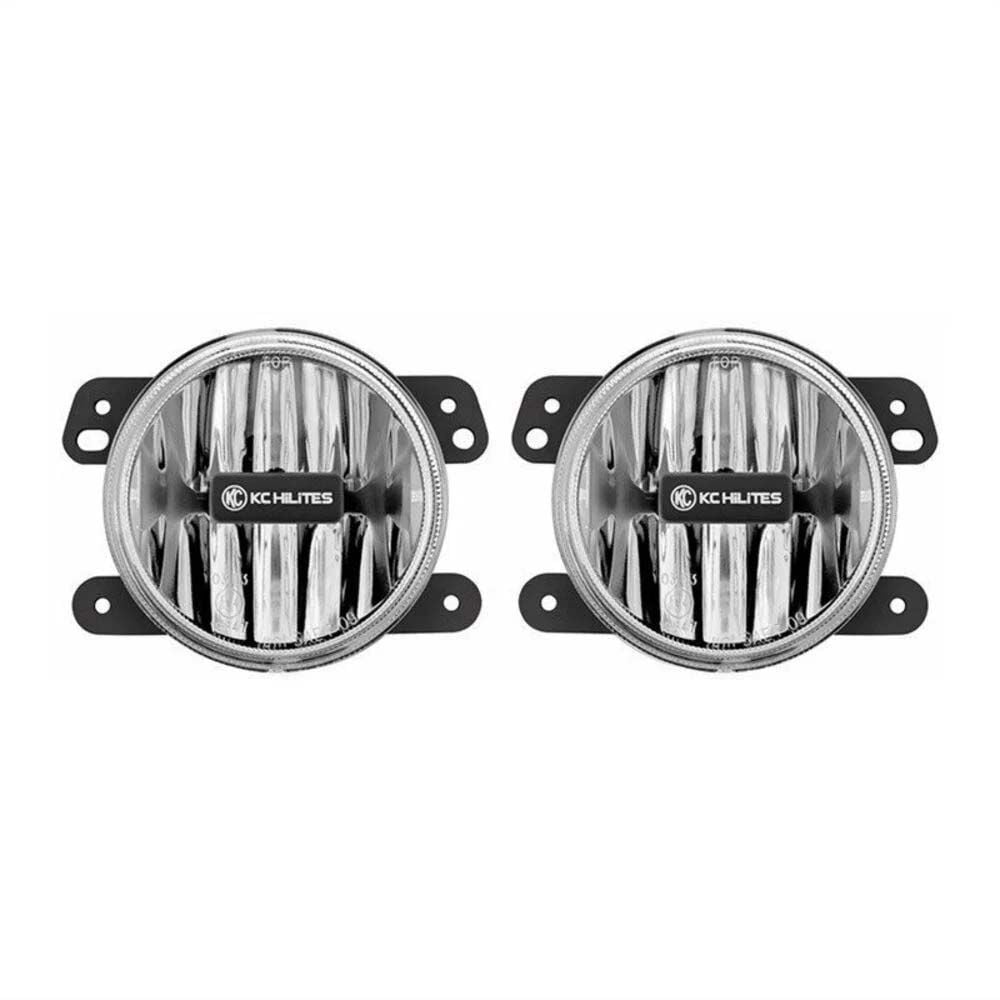

KC HiLiTES 2010+ Jeep JK / JL / JT Gravity LED G4 Fog Light Pair Pack System

KC Hilites 4" Gravity LED Fog Light features bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-25 Jeep JK/JL/JTs. Note: Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpers.

Features:

• 2 x 10W 4" Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• Street Legal 10-25 Jeep JK/JL/JT Applications
• Shatter Resistant Polycarbonate Lens
• Fog Beam Pattern (SAE & ECE Street Legal)

Fitment:

• 2010-2018 Jeep JK
• 2018+ Jeep JL
• 2020+ Jeep JT

Notes:

• Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpers

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: 866 lm
• Compliance: SAE J583 & ECE-R19 Street Legal
• Lux @ 10 Meters: 150 lx
• Candela: 150,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT)

• Wattage: 10W
• LED Source: CREE LED
• Color Temperature: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP68
• Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"

Includes:

• (2) 10W 4" Gravity® G4 LED Fog lights
• Universal Adjustable Bracket
• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• 30A LED Switch w/Panel

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
4" Gravity® LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK / 18-25 Jeep JL / 20-25 Jeep JT bumper and fog light harness.

STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

Specifications:

• Weight: 3.000000
• Compliance DOT/SAE/ECE: SAE J583, ECE R19 (Fog)
• Wattage Per Light 10W
• Total Wattage 20W
• Amp Draw Per Light: 1.67 a
• Voltage 9V-32V
• Lumens Per Light: 866 lm
• Lux Per Light 150 lx
• Candela Per Light 150,000 cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color White
• Beam Pattern: Fog
• Beam Distance 245 m
• Light Technology: LED
• Mount Location: Bumper, Fog Pocket
• Size of Products: 4"
• Material: Magnesium Alloy
• Product Finish: Black
• Included Components 2 x Gravity LED™ G4 SAE/ECE Fog Light (Jeep JK
• 10-18 / Jeep JL 18-25 / Jeep JT 20-25)
• Color Black
• Product Dimensions: W: 3.94 " x H: 3.94 " x D: 3.44 "
• UPC 084709004972
• IP Rating IP68
