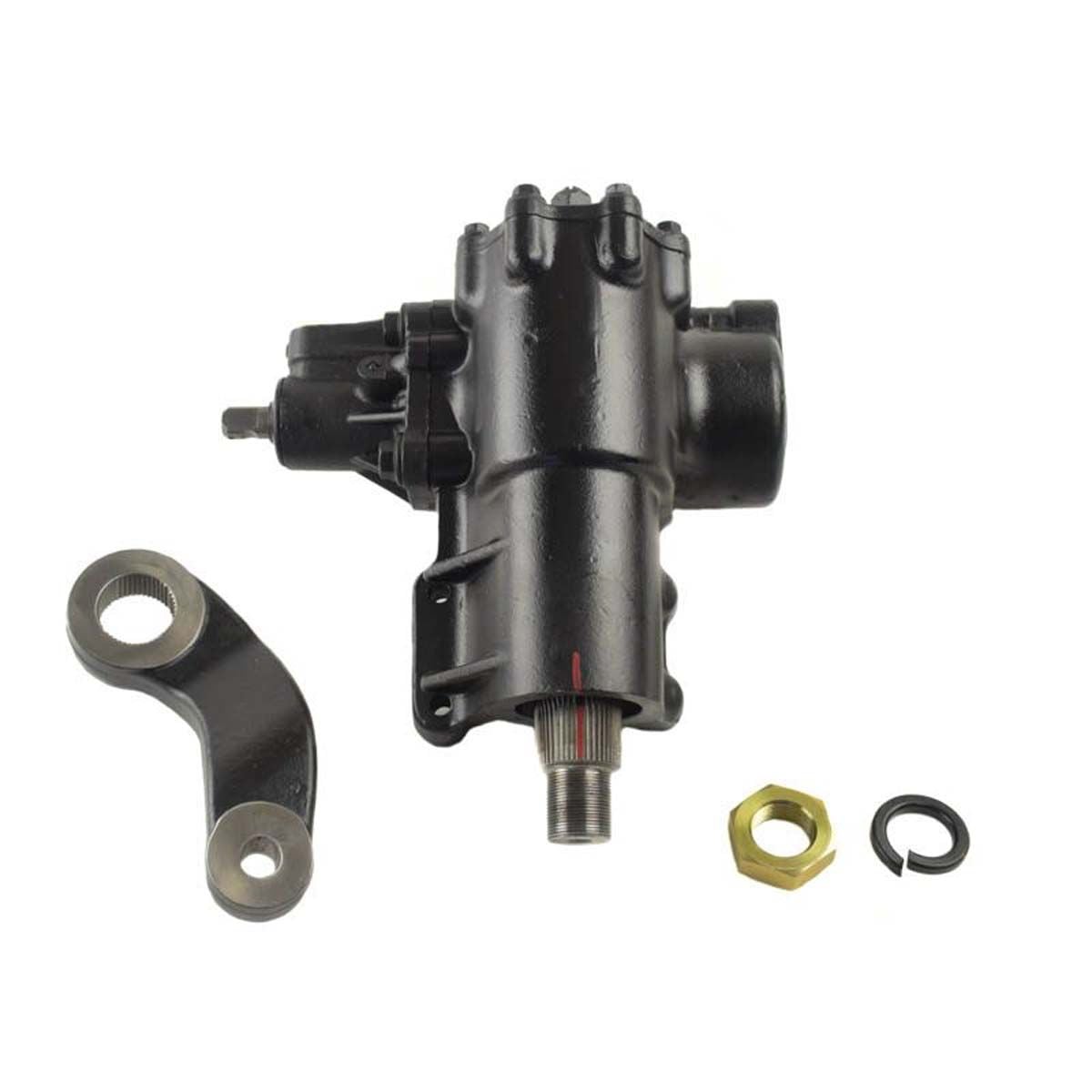

PSC Big Bore XD2 Steering Gearbox for 2007-18 Jeep JK

The BIG BORE XD2 is the most powerful and strongest replacement steering gearbox on the market for the Jeep JK. Any Jeep JK with larger tires and/or locking front differential needs this bolt-on upgrade. The BIG BORE XD2, when combined with our PK1858 XD Pump Kit, provides up to 35% more turning power over the OEM steering gearbox.

The sector shaft diameter has been increased from 35MM to 45MM to handle the extra torque output and prevent shear in extreme duty environments. Every Big Bore XD2 Steering Gearbox includes a NEW proprietary Pitman arm designed for the larger sector shaft.

Improved on-the-road driving characteristics and significantly increased torque output are achieved by using a 16:1 85MM piston assembly. This increased torque output will turn tire sizes up to 37" without the installation of cylinder assist, and will enable you to enjoy superb on-the-road handling as well as tackle 1-4 rated trails with ease.

Features:

• 45MM Sector Shaft
• NEW proprietary Pitman arm
• 16:1 Ratio 85MM Piston Assembly
• Reinforced mounting pad and case

Notes:

• The supplied Pitman arm does not have any additional drop to it, therefore some applications may require a drag link flip kit.
• The mounting pad of the BIG BORE XD2 has been up significantly reinforced to reduce frame flex, unwanted sector shaft deflection, and to prevent catastrophic failure of the case, resulting in a steering gearbox that weighs 15 LBS heavier than the OEM component.

Warning:

• Add HWK-688-PP hardware kit when installing any Synergy MFG Front Track Bar Brace (or similar) with this product.
• Using the Factory or the PSC supplied bolts with a Synergy MFG Track Bar Brace could result in steering gearbox case failure.
• The larger size of the BIG BORE XD2 Steering Gearbox may prohibit the use of some aftermarket track bars.
