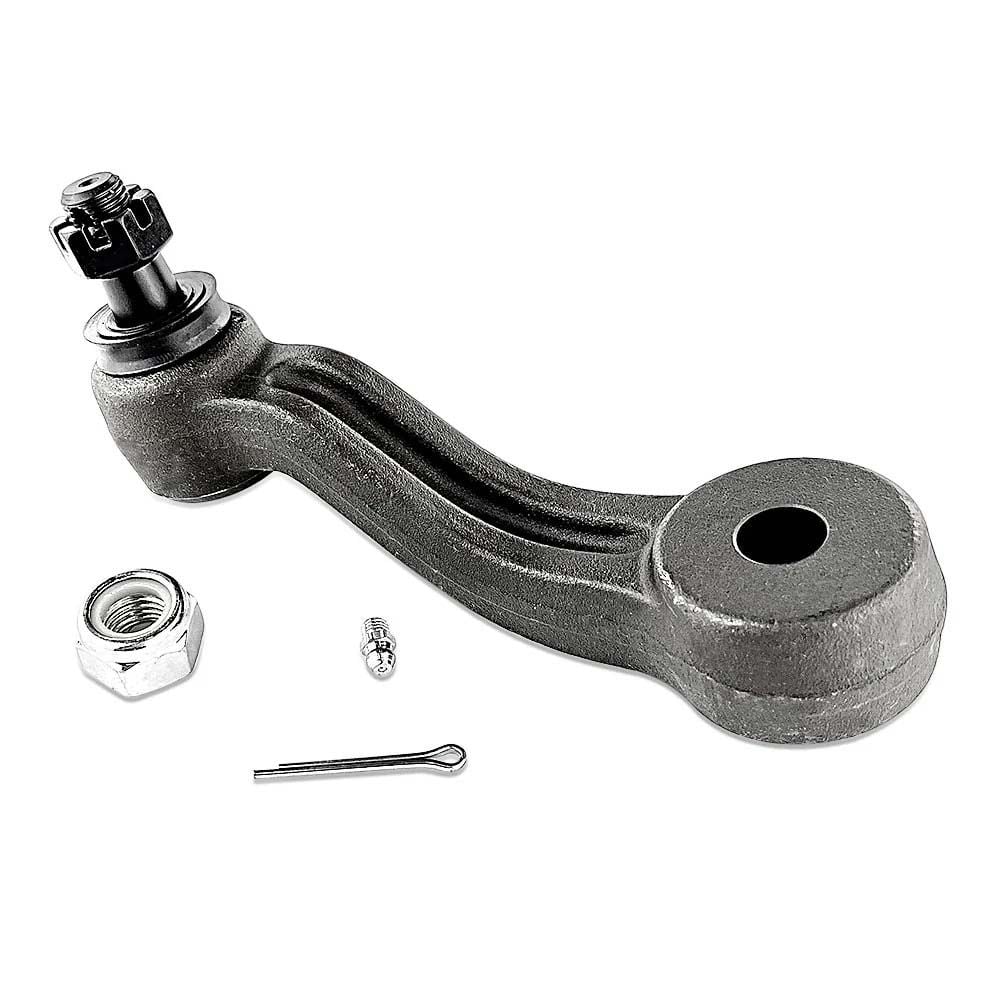

Apex Chassis Heavy Duty Front Idler Arm for 1993-2000 Chevy/GMC

Vehicle Position: Front
Quantity per Vehicle: 1
Moog Interchange: K6447

HOUSING

• SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
• CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

• SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
• Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
• Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
• Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

• Rugged Metal to Metal Bearing

BOOTS

• CR Rubber Boots:The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
• Integral Pancake Boot

HARDWARE

• Grade 8 - Class 10.9 Hardware: Superior tensile strength.
• Castle Nut: Industry standard where high vibration loads occur.

LUBRICATION

• Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
• Greaseable: Because it should be.
• Pre-Greased: Just in case you forget, we have you covered.
• Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
• Zerk Fittings: Included for every application.

Fitment:

• Cadillac Escalade (1999-2000) 2WD or 4WD

• Chevrolet Blazer (1993-1994) 2WD or 4WD

• Chevrolet C1500 (1993-1999) 2WD

• Chevrolet C1500 Suburban (1993-1999) 2WD

• Chevrolet C2500 (1993-2000) 2WD

• Chevrolet C2500 Suburban (1993-1999) 2WD

• Chevrolet C3500 (1993-2000) 2WD

• Chevrolet C1500 (1993-1999) 4WD

• Chevrolet K1500 Suburban (1993-1999) 4WD

• Chevrolet K2500 (1993-2000) 4WD

• Chevrolet K2500 Suburban (1993-1999) 4WD

• Chevrolet K3500 (1993-2000) 4WD

• Chevrolet Tahoe (1995-2000) 2WD or 4WD

• GMC C1500 (1993-1999) 2WD

• GMC C1500 Suburban (1993-1999) 2WD

• GMC C2500 (1993-2000) 2WD

• GMC C2500 Suburban (1993-1999) 2WD

• GMC C3500 (1993-2000) 2WD

• GMC K1500 (1993-1999) 4WD

• GMC K1500 Suburban (1993-1999) 4WD

• GMC K2500 (1993.-2000) 4WD

• GMC K2500 Suburban (1993-1999) 4WD

• GMC K3500 (1993.-2000) 4WD

• GMC Yukon (1993-2000) 2WD or 4WD
