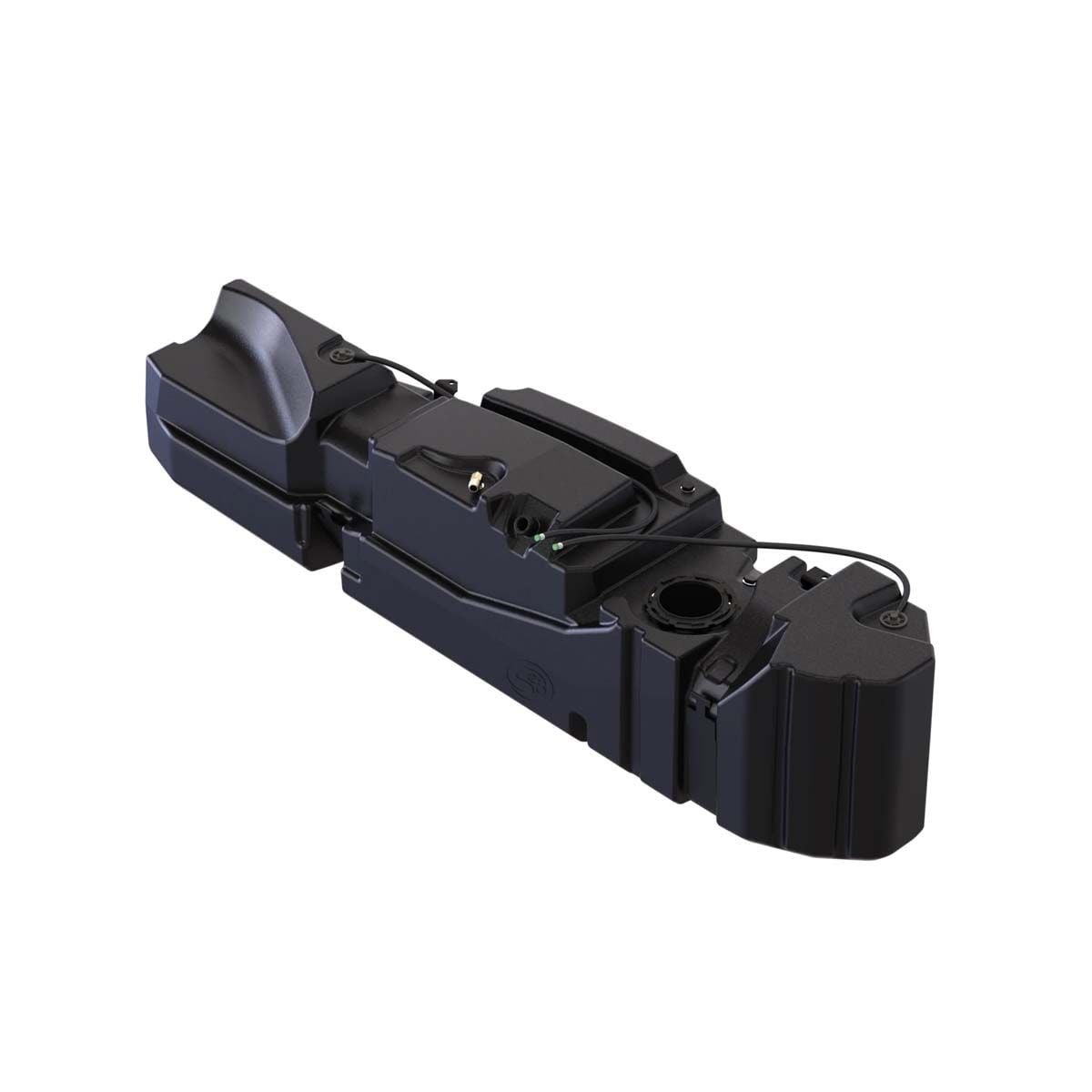

S&B 60 Gallon Replacement Fuel Tank for 2005-2012 Dodge/Ram 2500/3500 Crew Cab Long Bed

DOUBLE YOUR RANGE

S&B's 60-gallon fuel tank directly replaces the OEM 31-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!

LOCKED IN FOR A TRUE SEAL

The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect seal and securely retain the fuel pump in the tank.

BUILT TO LAST

S&B Tanks are made out of extremely strong crosslink polyethylene and are backed by S&B Filters lifetime warranty.

Important Notes:

• This tank won't fit trucks with aftermarket or one-piece drivelines.
• The nozzle at high flow fuel stations(truck stops) will not be able to fill automatically.
• OEM sending unit & float are reused because the S&B Tank is taller the gauge will stay on full for the first 8-10 gallons.

Details:

• COMPATIBLE WITH GOOSENECK AND 5TH WHEEL: YES
• COMPATIBLE WITH OE SKID PLATE: NO
• DIMENSIONS: 82.31" X 17.68" X 18.99"
• DRAIN: NO
• EMBEDDED FITTING THREAD SIZE: 1/2" NPT
• GROUND CLEARANCE COMPARE TO OE TANK: 2.75" LOWER
• OEM CAPACITY: 35 GALLONS
• SENDING UNIT: OE
• STRAPS INCLUDED: YES
• SUMP:NO
• S&B CAPACITY (APPROXIMATE): 60 GALLONS
• TANK TYPE: MIDSHIP
• TRANSFER PUMP READY: YES
• WEIGHT DRY: 48LBS
