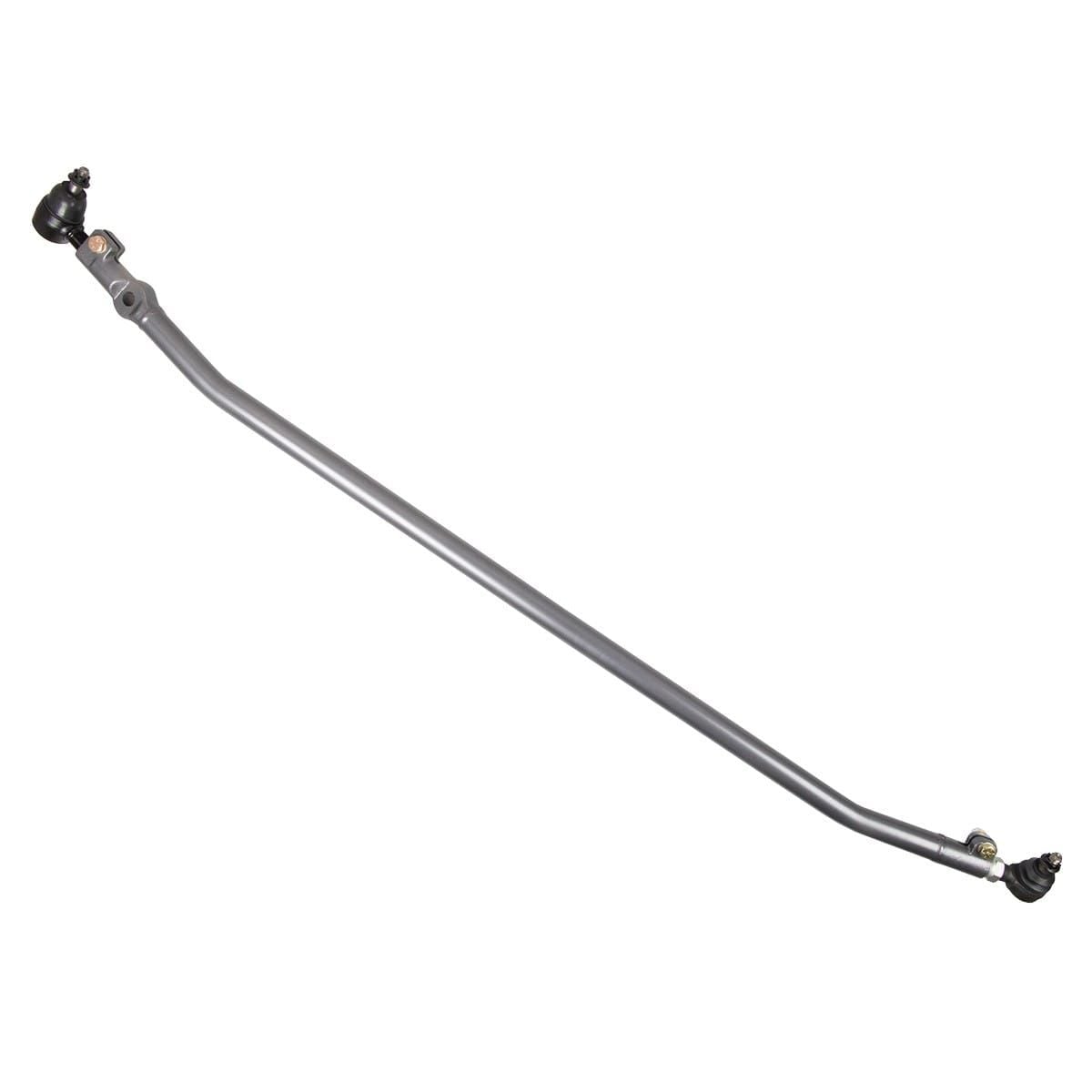

Synergy 1994-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Tie Rod

The Synergy 1994-2013 Dodge Ram 1500 / 2500 / 3500 Heavy Duty Tie Rod delivers increased durability without the need for drilling or reaming. Designed around the updated factory T-style steering geometry, it eliminates the toe change commonly associated with Y-style steering systems while avoiding the bump steer often introduced by aftermarket crossover kits.

Engineered for strength, precision, and straightforward installation, this tie rod is designed to be used in conjunction with the Synergy Drag Link and built to handle oversized tires, heavy loads, and aggressive use both on and off road. Complete with Synergy's signature metal-on-metal tie rod ends, this tie rod delivers exceptional longevity and precision. Unlike weaker tie rod ends that still contain a nylon liner, Synergy's metal-on-metal ends are fully greaseable and engineered to perform under extreme loads — providing unmatched durability and steering feel in all conditions.

When paired with the Synergy Heavy Duty Drag Link, Steering Stabilizer Mount Kit, and one of Synergy's Tuned Steering Stabilizers, it becomes part of a complete steering solution that sets the benchmark for performance, stability, and reliability.

Pro-Tip: Pair one of Synergy's heavy duty steering kits with Synergy's Heavy Duty Track Bar for the most reliable front end upgrade to your Ram!

SYN-8568-21

Fitment:

• 2003 - 2013 Dodge Ram 2500 4x4
• 2003 - 2012 Dodge Ram 3500 4x4
• 2006 - 2008 Dodge Ram 1500 Mega Cab 4x4

Benefits:

• Precision built from 1.5" x .188 wall heat treated chromoly tubing, providing over 200% more strength over the stock tie rod
• Improves strength and steering feel and eliminates any chance of bending
• Offers a more direct connection to the road compared to stock; no  more bent drag links and constantly having to align your vehicle
• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
• Bent to clear factory sway bar mounts and pitman arm
• Provides 2" of additional ground clearance from stock tie rod
• Synergy metal on metal tie rod ends are stronger and more durable than stock, greaseable for easy maintenance, and feature a heat treated ball bearing and forged bearing housing for maximum durability
• Single plane tie rod ends eliminate unwanted tie rod flop and prevent the "dead spot" commonly associated with Y-style steering
• Fully adjustable without removing from the vehicle with Synergy's Double Adjuster Sleeve and Pinch Bolt Assembly
• Sealed from the elements with Synergy's pinch bolt forgings, preventing your tie rod from corroding from the inside out
• Compatible with stock wheels and tires

Features:

• Engineered and precision bent from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Lengths:
Measured in a straight line from center of tie rod end to center of tie rod end

• Min Collapsed: 59.75"
• Max Extended: 62"

Includes:

• (1) Heavy Duty Tie Rod
• (1) Grade 8 Pinch Bolt Hardware Kit

Notes:

• This is a component of the 2003 - 2013 Heavy Duty Steering Kit and is designed to be used in conjunction with the Synergy Heavy Duty Drag
• Link part number SYN-8567-11
• Not backwards compatible with the stock drag link


• Replacement Tie Rod Ends:
  (1) Driver Side - SYN-4134-L
  (1) Passenger Side - SYN-4167-L


• New single plane tie rod end - part number SYN-4167-L - is not compatible with the metal misalignment caps (part number SYN-4134-02)
• If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new poly boot part number SYN-4131-01
• If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear
• Synergy High Performance Grease recommended (SYN-4119) to be used with all Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize (SYN-4118) to be used with all threaded components


• Recommended Fox Steering Stabilizers:
  IFP - Internal Floating Piston (SYN-6401-01)
  TS - Through Shaft (SYN-6402-03)
  ATS - Adjustable Through Shaft (SYN-6403-03)


• Recommended King Stabilizers:
  King 2.0 (SYN-6410-01)


• Synergy cannot guarantee fitment with aftermarket differential covers.
• Known compatibility with the following diff covers: aFe Power
• Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the Tie Rod), Synergy Part # SYN-8525-01. The late model trucks use cross over steering (Drag link is attached to the knuckle), Synergy Part # SYN-8725-01. Please check what style you have before ordering.

SYN-8568-22 / SYN-8568-23

Fitment:

SYN-8568-22

• 2000 - 2002 Dodge Ram 2500 / 3500 4x4
• 2000 - 2001 Dodge Ram 1500 4x4

SYN-8568-23

• 1994 - 1999 Dodge Ram 1500 / 2500 / 3500 4x4

Benefits:

• Precision built from 1.5" x .188 wall heat treated chromoly tubing, providing over 200% more strength over the stock tie rod
• Improves strength and steering feel and eliminates any chance of bending
• Offers a more direct connection to the road compared to stock; no  more bent drag links and constantly having to align your vehicle
• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance
• Bent to clear factory sway bar mounts and pitman arm
• Synergy metal on metal tie rod ends are stronger and more durable than stock, greaseable for easy maintenance, and feature a heat treated ball bearing and forged bearing housing for maximum durability
• Single plane tie rod ends eliminate unwanted tie rod flop and prevent the "dead spot" commonly associated with Y-style steering
• Fully adjustable without removing from the vehicle with Synergy's Double Adjuster Sleeve and Pinch Bolt Assembly
• Sealed from the elements with Synergy's pinch bolt forgings, preventing your tie rod from corroding from the inside out
• Compatible with stock wheels and tires

Features:

• Engineered and precision bent from 1.5" x .188 wall 4130 Chromoly and Heat Treated for maximum strength
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly eliminates jam nuts and allows for easy adjustability
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools

Min/max Measurements:
Measured from center of mounting point to center of mounting point

• Minimum - 59.75"
• Maximum - 62"

Includes:

• (1) Heavy Duty Track Bar
• (1) Grade 8 Hardware Kit

Notes:

• These drag links are a component of Synergy's 1999 - 2002 Heavy Duty
• Steering Kit and are designed to be used in conjunction with the Synergy
• Heavy Duty Drag Link part number SYN-8567-12 or SYN-8567-13
• Not backwards compatible with the stock drag link


• 2000 - 2002 Replacement Tie Rod Ends
  SYN-4134-L (Driver)
  SYN-4167-L (Passenger)


• 1994 - 1999 Replacement Tie Rod Ends
  SYN-4136-L (Driver)
  SYN-4169-L (Passenger)


• New single plane tie rod end - part number SYN-4167-L - is not compatible with the metal misalignment caps (part number SYN-4134-02)
• If upgrading to the new single plane tie rod end on older model tie rods that include the metal caps, the opposing tie rod end will require a new poly boot part number SYN-4131-01
• If the cotter pin does not engage the castle nut upon install, a washer is required; Washer may not be required on all knuckles depending on casting differences and wear


• Recommended Fox Steering Stabilizers:
  IFP - Internal Floating Piston (SYN-6401-01)
  TS - Through Shaft (SYN-6402-03)
  ATS - Adjustable Through Shaft (SYN-6403-03)


• Recommended King Stabilizers:
  King 2.0 (SYN-6410-01)
  8568-23 uses SYN-8568-13 steering stabilizer clamp kit
  8568-22 uses SYN-4050-50 steering stabilizer clamp


• Superseded parts numbers -
  SYN-8568-22 supersedes SYN-8568-02
  SYN-8568-23 supersedes SYN-8568-03
