Carli 4.5" Dominator System for 2008-10 F250/F350 4x4

The most travel, softest on-road ride and the second most off-road capability combine to make this the ultimate utilitarian setup in our 4.5" height range. This system options full leaf springs and Fabricated Radius arms are recommended.

This is the true, Jack of all trades suspension system offering the most wheel travel of any Carli system. The Dominator rides better than any other system on the road while boasting off-road manners to rival the Coilover Bypass. No tubes to adjust or user-tunability in this system; we’ve done the hard work for you.

The truck will sit 4.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs that mount into the Fabricated Carli Spring Buckets. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. The included Bump Stop Drops protect the shocks from over-compressing while the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli include Caster Shims to tighten the steering.

The rear is outfitted with a Full Progressive Spring Pack requiring no block to achieve proper ride height; thus, travel is extended and wheel hop/axle wrap minimized at the cost of 15% less load capacity than a stock F250. If capacity is a concern, Carli offer Long Travel Airbags to restore the payload capacity to that of a SRW F350.

This system boasts Carli Signature tuned, King 3.0" Remote Reservoir shocks so large, Carli needed to fabricate custom mounts to fit them; as the old adage goes, there’s no replacement for displacement. The 3.0" shock has a piston surface area 45% greater than a 2.5" King and 126% larger than a factory 2.0" shock making it far more efficient in all situations. The massive surface area also ensures Carli can achieve amazing off-road performance while offering the best on-road ride of any of Carli systems. To fit these shocks, Carli provide fabricated mounts that lift the upper mounting point and position the shock away from the frame while the standard bump stop extensions were shortened to allow for more up-travel to compliment the additional down-travel from the longer shock. In an effort to provide customers with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; Carli then tuned the shocks based on seat-of-the-pants feel. Carli round off ALL Carli King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, Carli recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Aesthetically, there will be one huge shock at each corner. The purpose for which the truck’s being built does not need to be a consideration when purchasing the Dominator. On Road, it’s the best; Off-Road, it’s a monster and cycles more travel than any other system Carli offer. All the aforementioned with only 4 completely rebuildable shocks to maintain and stupidly simple operation with the tuning left to the experts. If it’s in the budget, this is the Carli recommendation for everyone.

As with the Coilover Bypass, it’s recommended that users purchase a Differential Guard for axle protection, High Mount Steering Stabilizer to keep the steering as controlled as the suspension and Fabricated Radius Arms for strength and Limit Strap mounting. At this level of suspension, a roll cage is also recommended if the system will be used to its full off-road potential.

Wheel and Tire:
On Carli 4.5" Ford Systems, Carli recommend 17"-18" wheels, no more than 9" wide with 5" of backspacing with a 37", E-Rated Tire. If running the Carli Fabricated Radius Arms, up to 5.5" of backspacing is possible given the additional tire clearance provided by the arm. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Note: A "Base Kit" must be accompanied by a Sway Bar and Leaf Spring option to form a complete system.

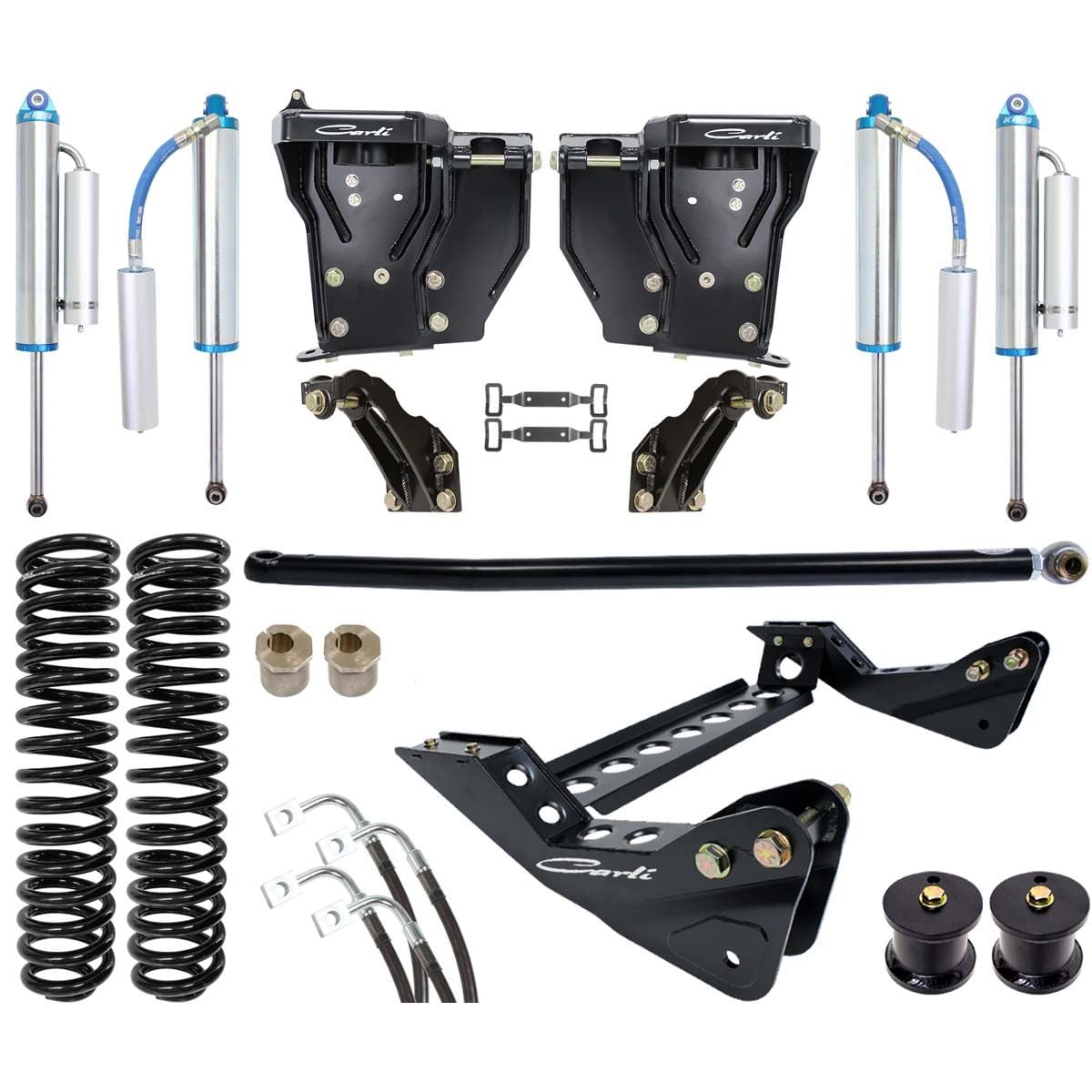

Base Kit:

• (1) CS-FMRC-05 - Multi-Rate Coils

• (1) CS-FD30SPKG-45-05 - Carli Custom Tuned KING 3.0" Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts

• (1) CS-FFCB-08 - Fabricated Coil Buckets

• (1) CS-FRSM-08 - Fabricated Rear Shock Mounts

• (1) CS-FORDBBL-08 - Brake Lines

• (1) CS-FRAD-05 - Radius Arm Drops

• (1) CS-FBDF-05-4.5-SHORT - Dominator Bump Stop Drops

• (1) CS-FCASTERSHIM-4.5 - 1° Caster Shims

• (1) CS-FPRB-05 - Track Bar

OPTIONS:

Extended Sway Bar End Links, 2008-10 - CS-FEL-08

• Corrects Sway Bar Geometry on 4.5" Lift

• Direct Bolt-in

• Unhindered Articulation, 100% Rebuildable

• 3/4" .120" wall material, Spherical Joints

• Fitment: 2008-10 F250/F350 4x4

Carrier Bearing Drop - CS-CARRIERDROP-F

• Drops Carrier Bearing on 2-Piece Driveshafts

• Prevents take-off shudder/driveline vibration

• Stackable 3/8" Shims for 1"-4" Rear Lift

Long Travel Air Bag System, 2008-16 4.5" Systems - CS-FLTB-08

• Supports up to 12 inches of travel

• Compatible with rear lifts that level to a 4.5" Front Suspension System ONLY

• Restore Factory Payload to Full Progressive Springs

• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi

• Use Manually (included) or with onboard air System (1/4" airline compatible)

• Fitment: 2008-2016 F250/F350 4x4 with 3.5" Axle Tube

Low Mount Steering Stabilizer - CS-FLMSS-05

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Includes Differential Guard and Clamp
• Combines with High-Mount Stabilizer for Opposing Setup
• Fitment: 2005+ F250/350 4x4
• Optimized for Carli 2.5"-5.5" Systems

High Mount Steering Stabilizer - CS-FHMSS-17

• Stainless Steel Body and High Misalignment Pin

• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure

• Hardened Nitride Shafts and Precision Bearings

• Long Lasting Performance and Appearance

• Bolt in Replacement for OEM Stabilizer

• Fitment: 2017+ F250/350 4x4

• Works on leveled and lifted trucks ONLY

Fabricated Radius Arms, 4.5" Lift - CS-FARA-4.5-05

• 1° of Caster correction engineered into arm

• 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance

• Limit Straps Kit Included

• Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling

• Combines with Radius Arm Drop Brackets for 4.5"-5.5" Carli Systems

• Fitment: 2005+ F250/350 4x4

Ford 2008-2010 Full Progressive Leaf Packs For 4.5" Systems - CS-FFSP-08

• Block eliminating, Full Progressive Spring Pack

• "Light" 3/4-Ton Capacity, Max Bed-load 2,000lbs.

• Includes new U-Bolts and Rear Bump Stop Drops

• Provides a 1", rear high stance on Matching 4.5" Suspension Systems

• 37" Tire Fitment

• Fitment: 2008-10 F250/350 4x4, 3.5" Axle Tube
