Carli 4.5" Pintop Suspension System for 2008-10 F250/F350 4x4

Carli's most popular system, the Pintop kit boasts 2.5", Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride, yet more control and bottom-out resistance than the Back-Country.

The Super Duty Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the commuter for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. Utilizing Fox 2.0" Remote Reservoir Shocks, we’ve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The Fox 2.0s boast extruded aluminum construction with a clear anodizing for corrosion resistance, are fully rebuildable and are built with hour-glass bushings in the rod-ends. Fox builds these shocks with their legendary red shock oil that flows well down to -55° F.

The truck will sit 4.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli include Caster Shims to tighten the steering.

The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light" ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 3-5/8" block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. Carli recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity of a SRW F350 with the addition of Carli Long-Travel Airbags. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37" M/T at full compression.

If ordering this kit with an Add-a-Pack, Super Duties equipped with a 2″ tall block from the factory will require the factory 3-5/8″ tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-HB, 7C3Z-5598-JB

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but Carli DO NOT recommend running oversized tires on factory wheels. On Carli 4.5" Ford Systems, Carli recommend 17"-18" wheels, no more than 9" wide with 5" of backspacing with a 37", E-Rated Tire. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Note: A "Base Kit" must be accompanied by a Sway Bar and Leaf Spring option to form a complete system.

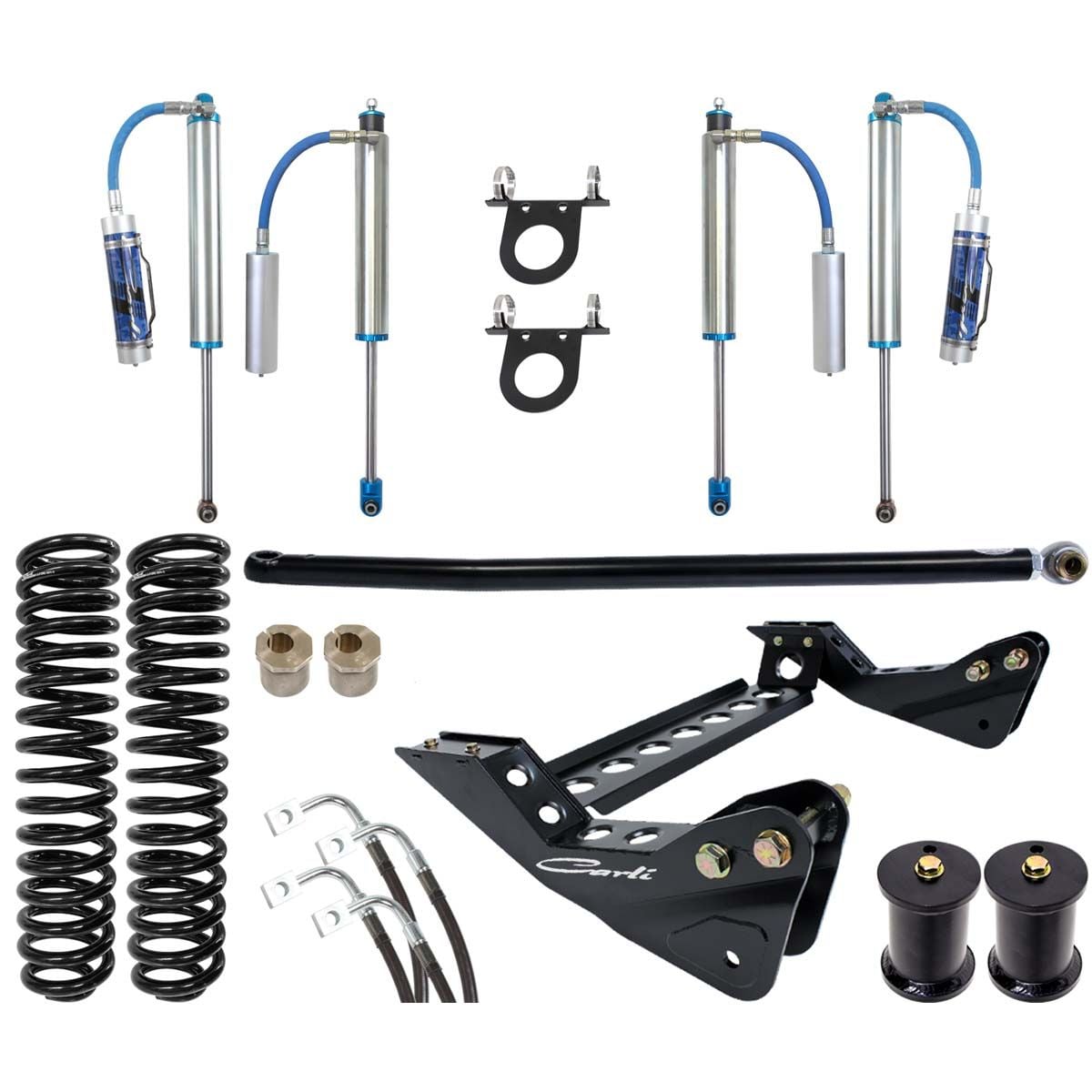

Base Kit:

• (1) CS-FMRC-05 - Multi-Rate Coils

• (1) CS-FPT25SPKG-05 - Carli Custom Tuned KING 2.5" Remote Reservoir Shocks, Front and Rear with Stainless Shafts & Reservoir Mounts

• (1) CS-FORDBBL-08 - Brake Lines

• (1) CS-FRAD-05 - Radius Arm Drops

• (1) CS-FBDF-05-4.5 - Bump Stop Drops

• (1) CS-FCASTERSHIM-4.5 - 1° Caster Shims

• (1) CS-FPRB-05 - Track Bar

OPTIONS:

Extended Sway Bar End Links, 2008-10 - CS-FEL-08

• Corrects Sway Bar Geometry on 4.5" Lift

• Direct Bolt-in

• Unhindered Articulation, 100% Rebuildable

• 3/4" .120" wall material, Spherical Joints

• Fitment: 2008-10 F250/F350 4x4

Carrier Bearing Drop - CS-CARRIERDROP-F

• Drops Carrier Bearing on 2-Piece Driveshafts

• Prevents take-off shudder/driveline vibration

• Stackable 3/8" Shims for 1"-4" Rear Lift

Long Travel Air Bag System, 2008-16 4.5" Systems - CS-FLTB-08

• Supports up to 12 inches of travel

• Compatible with rear lifts that level to a 4.5" Front Suspension System ONLY

• Restore Factory Payload to Full Progressive Springs

• Adjustable Rear Loaded height, 2,000lb Capacity per bag at 100psi

• Use Manually (included) or with onboard air System (1/4" airline compatible)

• Fitment: 2008-2016 F250/F350 4x4 with 3.5" Axle Tube

Low Mount Steering Stabilizer - CS-FLMSS-05

• Stainless Steel Body and High Misalignment Pin
• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure
• Hardened Nitride Shafts and Precision Bearings
• Includes Differential Guard and Clamp
• Combines with High-Mount Stabilizer for Opposing Setup
• Fitment: 2005+ F250/350 4x4
• Optimized for Carli 2.5"-5.5" Systems

High Mount Steering Stabilizer - CS-FHMSS-17

• Stainless Steel Body and High Misalignment Pin

• Custom Valved for Larger Tires, Adjustable Nitrogen Pressure

• Hardened Nitride Shafts and Precision Bearings

• Long Lasting Performance and Appearance

• Bolt in Replacement for OEM Stabilizer

• Fitment: 2017+ F250/350 4x4

• Works on leveled and lifted trucks ONLY

Fabricated Radius Arms, 4.5" Lift - CS-FARA-4.5-05

• 1° of Caster correction engineered into arm

• 3/16 Construction, Fully Internal Gusseted with 1/2" Additional Tire Clearance

• Limit Straps Kit Included

• Serviceable 17-4 Stainless Spherical Joint at Frame Connection for longevity and bind free Cycling

• Combines with Radius Arm Drop Brackets for 4.5"-5.5" Carli Systems

• Fitment: 2005+ F250/350 4x4

Ford 2008-2010 Progressive Add-A-Packs - CS-FPAP-08

• Built in the U.S.A. By Deaver Leaf Spring

• Smooth, Progressive Design

• Supplied with Bump Stop Drops, U-bolts and hardware

• Pairs to Carli Leveling Lifts, provides 1/2"-1" high rear stance

• Eliminates the Factory Block

• Load capacity is maintained, ride quality is improved

• Fitment: 2017+ F250/350 4x4

Ford 2008-2010 Full Progressive Leaf Packs For 4.5" Systems - CS-FFSP-08

• Block eliminating, Full Progressive Spring Pack

• "Light" 3/4-Ton Capacity, Max Bed-load 2,000lbs.

• Includes new U-Bolts and Rear Bump Stop Drops

• Provides a 1", rear high stance on Matching 4.5" Suspension Systems

• 37" Tire Fitment

• Fitment: 2008-10 F250/350 4x4, 3.5" Axle Tube
