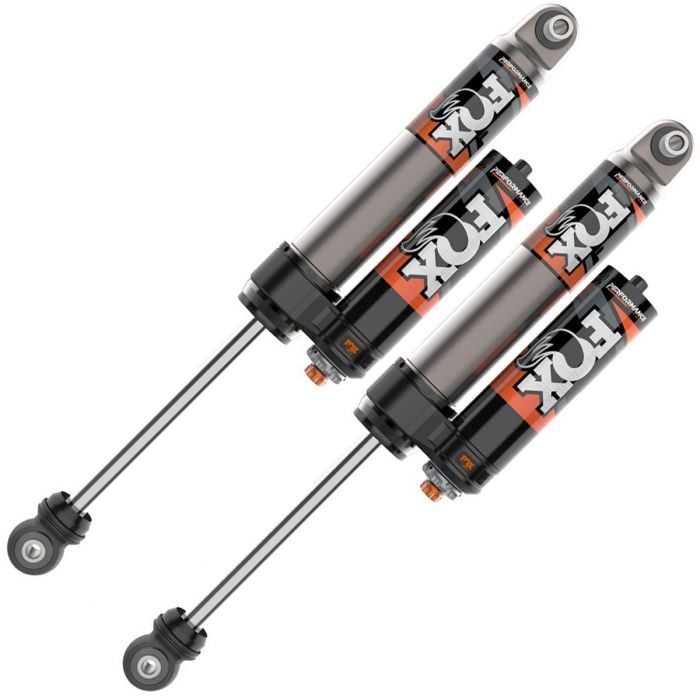

Fox 2.5 Performance Elite Series Piggyback Reservoir Rear Shock Kit with DSC for 2005+ Ford SuperDuty F250 / F350
Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from Fox's Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Fox's athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Fox's complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
ADAPTABILITY WITH DUAL SPEED COMPRESSION (DSC) ADJUSTER
Add remarkable versatility and precise tuning with Fox's external DSC adjuster. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression adjustments to quickly adapt the shocks to a variety of terrain any vehicle loads. DSC adjusters provide the ideal settings to tackle the trickiest of off-road obstacles or tame the twists and turns on the asphalt with the twist of a knob.
Features:
- Body - 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
- Body Plating - Hard-anodized for a durable finish
- Reservoir - External reservoir design separates shock oil from the high-pressure nitrogen
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 7/8"" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Bearing - PTFE-lined, heat-treated, alloy steel spherical
- Adjuster Type - DSC - Dual Speed Compression
Sold as a PAIR
| Part # | Lift | Extended | Compressed | Travel |
|---|---|---|---|---|
| FOX-883-26-096 | 0" - 1.5" | 29.83" | 18.35" | 11.48" |
| FOX-883-26-098 | 2" - 3.5" | 32.33" | 19.85" | 12.48" |
| FOX-883-26-100 | 4" - 6" | 34.93" | 21.35" | 13.58" |
Notes:
- 2005-2016 requires 14mm bolt upgrade. The factory rear lower mount will need to be drilled out to 14mm. Customer must source 14mm bolt.
