ICON 17+ Ford F250/F350 4WD 4.5" Suspension System (Stage 1-3)

This ICON 4.5” suspension system is a great way to lift your 4WD 2017-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.

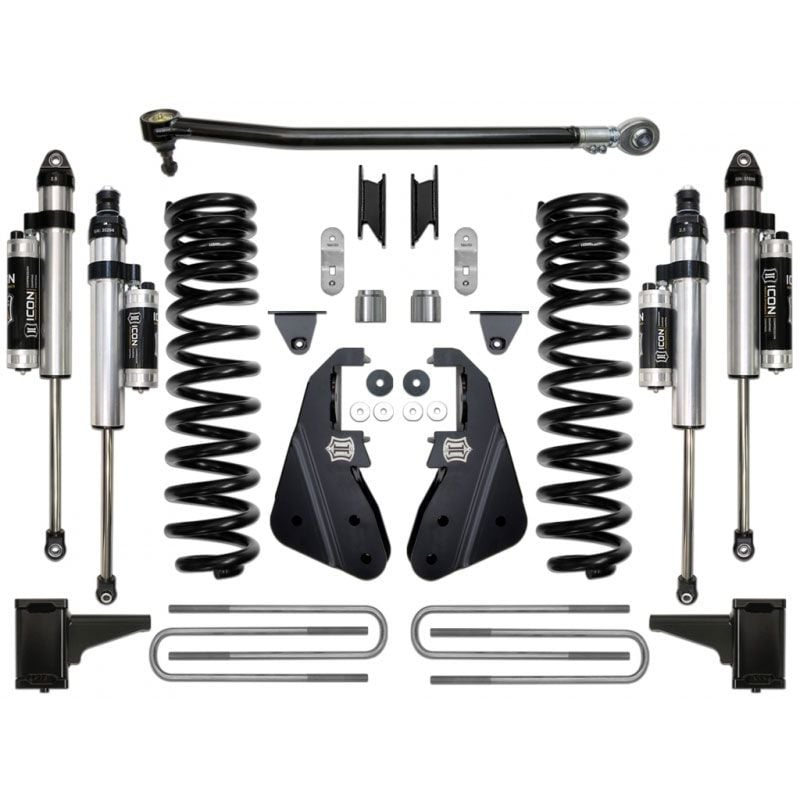

ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks.

ICON's Stage 2 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.5 Series internal reservoir front and piggyback reservoir rear shocks.

ICON's Stage 3 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON CDC Valve 2.5 Series front and rear piggyback reservoir shocks.

With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Fits 2017-UP F250 / F350 4WD applications
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Made in the USA

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8.5-9" Wide, 5" Backspace
• Aftermarket Tires: 37 x 12.5"
  • (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

• 08-17 Ford Super Duty Front 4.5" Box Kit
• 05-UP Ford Super Duty Front 4.5" Dual Rate Sprint Kit
• 17-UP Ford Super Duty Adjustable Track Bar Kit
• 17-UP Ford Super Duty Radius Arm Drop Bracket Kit
• 99-UP Ford Super Duty 5" Block Kit
• 11-UP Ford Super Duty Rear 17" U-Bolt Kit
• 05-17 Ford Super Duty 4WD 4.5" Front 2.0 VS IR (Pair) (Stage 1)
• 17-UP Ford Super Duty Rear 0-2" 2.0 VS IR (Pair) (Stage 1)
• 05-17 Ford Super Duty 4WD 4.5" Front 2.5 VS IR (Pair) (Stage 2)
• 99-17 Ford Super Duty Rear 0-3" 2.5 VS PB (Pair) (Stage 2)
• 05-17 Ford Super Duty 4WD 4.5" Front 2.5 VS PB CDCV (Pair) (Stage 3)
• 99-17 Ford Super Duty Rear 0-3" 2.5 VS PB CDCV (Pair) (Stage 3)
