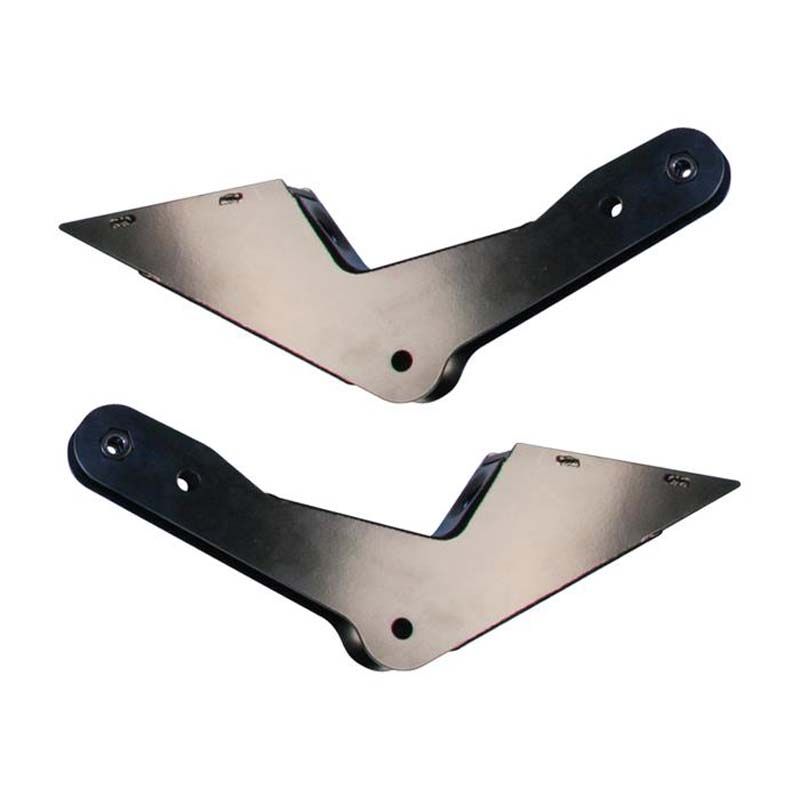

ICON 2005+ Ford F-250/F-350 Super Duty 4WD, 4 Link Frame Bracket Kit

IVD-164500

The 4-link bracket kit is an essential component of the ICON 2005-2010 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Features:

• 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
• Improves front end articulation and overall drivability
• Allows on-vehicle caster adjustment via ICON double adjusters in lower links
• Brackets are fabricated from CNC laser cut and brake-formed steel plate
• Corrosion resistant semi-gloss black powder coat finish
• 100% Bolt-on system - no cutting or welding necessary for install
• Fabricated components covered under ICON's Limited Lifetime Warranty

Notes:

• Only fits 2005-2010 Ford Super Duty 4WD models
• Compatible with 2.5"-7" of front lift
• Requires ICON 4-Link Arms Part numbers IVD-164501 & IVD-164502 to complete installation.

IVD-164503

The 4-link bracket kit is an essential component of the ICON 2011-2016 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Features:

• 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
• Improves front end articulation and overall drivability
• Allows on-vehicle caster adjustment via ICON double adjusters in lower links
• Brackets are fabricated from CNC laser cut and brake-formed steel plate
• Corrosion resistant semi-gloss black powder coat finish
• 100% Bolt-on system - no cutting or welding necessary for install
• Fabricated components covered under ICON's Limited Lifetime Warranty

Notes:

• Only fits 2011-2016 Ford Super Duty 4WD models
• Compatible with 2.5"-7" of front lift
• Requires ICON 4-Link Arms Part numbers IVD-164501 & IVD-164502 to complete installation.

IVD-164504

The 4-link bracket kit is an essential component of the ICON 2017-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Features:

• 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
• Improves front end articulation and overall drivability
• Allows on-vehicle caster adjustment via ICON double adjusters in lower links
• Brackets are fabricated from CNC laser cut and brake-formed steel plate
• Corrosion resistant semi-gloss black powder coat finish
• 100% Bolt-on system - no cutting or welding necessary for install
• Fabricated components covered under ICON's Limited Lifetime Warranty

Notes:

• Only fits 2017-2022 Ford Super Duty 4WD models
• Compatible with 2.5"-7" of front lift
• Requires ICON 4-Link Arms Part numbers IVD-164501 & IVD-164502 to complete installation.
