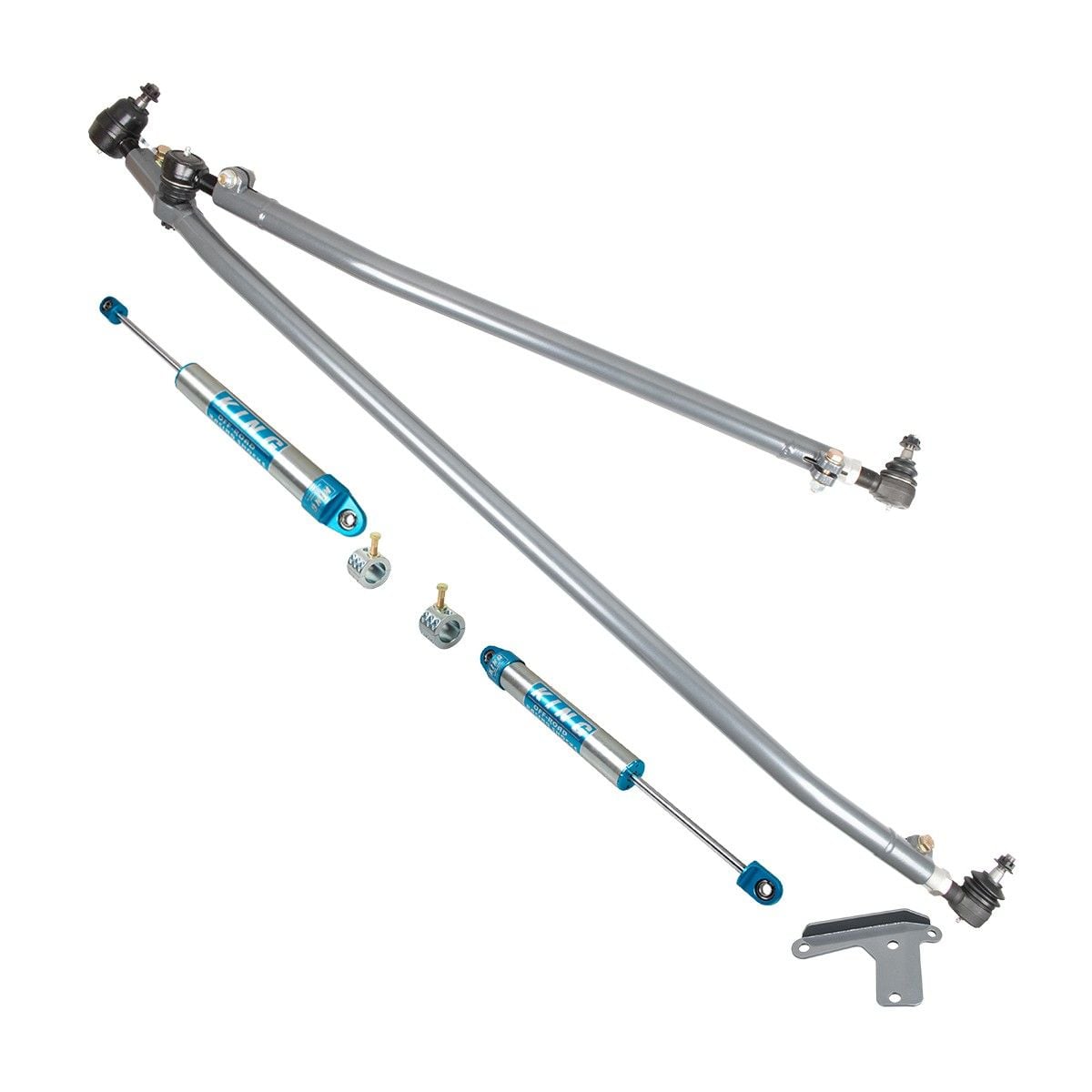

Synergy 1999 - 2004 Ford Super Duty F-250 / F-350 Heavy Duty Steering Kit

Built for Strength and tuned for precision, the Synergy 1999 - 2004 Ford Super Duty F-250 / F-350 Heavy Duty Steering Kit transforms the steering performance of your Super Duty. Engineered to deliver an instant boost in strength, stability, and control, this kit is built to handle oversized tires, demanding terrain, and the daily punishment tough trucks endure.

At the heart of the system is our heat-treated 1.5" chromoly tie rod, delivering unmatched rigidity to resist bending under heavy loads or aggressive off-road driving. Paired with a 1.5" USA-made DOM drag link, precision-bent for optimal clearance, the result is a rock-solid, confidence-inspiring connection to the road. Best of all, no wheel size requirements! This kit works flawlessly with factory wheels and tires. Outfitted with Synergy Heavy Duty Metal-on-Metal Tie Rod Ends, you get maximum durability, crisp steering response, and long service life in even the harshest environments.

Upgrade even further with one of our KING or FOX steering stabilizers, delivering modern shock technology to complement the high-strength steering components for exceptional handling and drivability on and off the pavement.

Fitments:

• 1999 - 2004 Ford Super Duty F-250 / F-350

Benefits:

• Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4" lifted vehicles; Vehicles over 4" of lift will require a drop pitman arm for compatibility
• Heat treated tie rod is over 40% stronger than OEM and formed post heat treating for superior strength
• Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm
• Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
• Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction
• Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
• Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
• Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX or KING Stabilizers, or other aftermarket stabilizers with 1/2" mounting bolts
• Synergy single and dual stabilizer brackets can be ran while retaining a stabilizer in the factory position on the drag link
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep
• Compatible with stock wheels and tires

Features:

• Drag link is precision bent from 1.5" x .250 wall 1026 USA made DOM
• Tie rod is engineered and bent from 1.50" x .188 wall heat treated 4130 chromoly
• Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
• Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end

Drag Link:

• Max extended length: 39.50"
• Min collapsed length: 36.75"

Tie Rod:

• Max extended length: 59.5"
• Min collapsed length: 56.75"

Includes:

Notes:

• Drag Link Replacement Tie Rod Ends:
  • Driver Side - SYN-4152-L
  • Passenger Side - SYN-4136-L
• Tie Rod Replacement Tie Rod Ends:
  • Driver Side - SYN-4163-L
  • Passenger Side - SYN-4167-L
• Additional Fox Steering Stabilizer Options:
  • TS - Through Shaft - Part Number SYN-6402-11
• Compatible on vehicles with up to 4" of ride height with stock pitman arm & track bar bracket. Compatible on vehicles with 4"+ lift with drop pitman arm and track bar drop bracket.
• Synergy High Performance Grease, part number SYN-4119 to be used with all Tie Rod Ends
• Synergy recommend Synergy Premium Copper Infused Anti-Seize part number 4118 on all threaded components
• Synergy Dual Steering Stabilizers coming soon for this steering kit!

Installation Instructions:

• Drag Link Installation Instructions

• Tie Rod Installation Instructions
