JE Reel 2012-2018 Jeep Wrangler JK 1310 Heavy Duty Front Driveshaft with Double Cardan Joint, 2 / 4 Door
JE Reel 2012-2018 Jeep Wrangler JK 1310 Heavy Duty Front Driveshaft with Double Cardan Joint, 2 / 4 Door

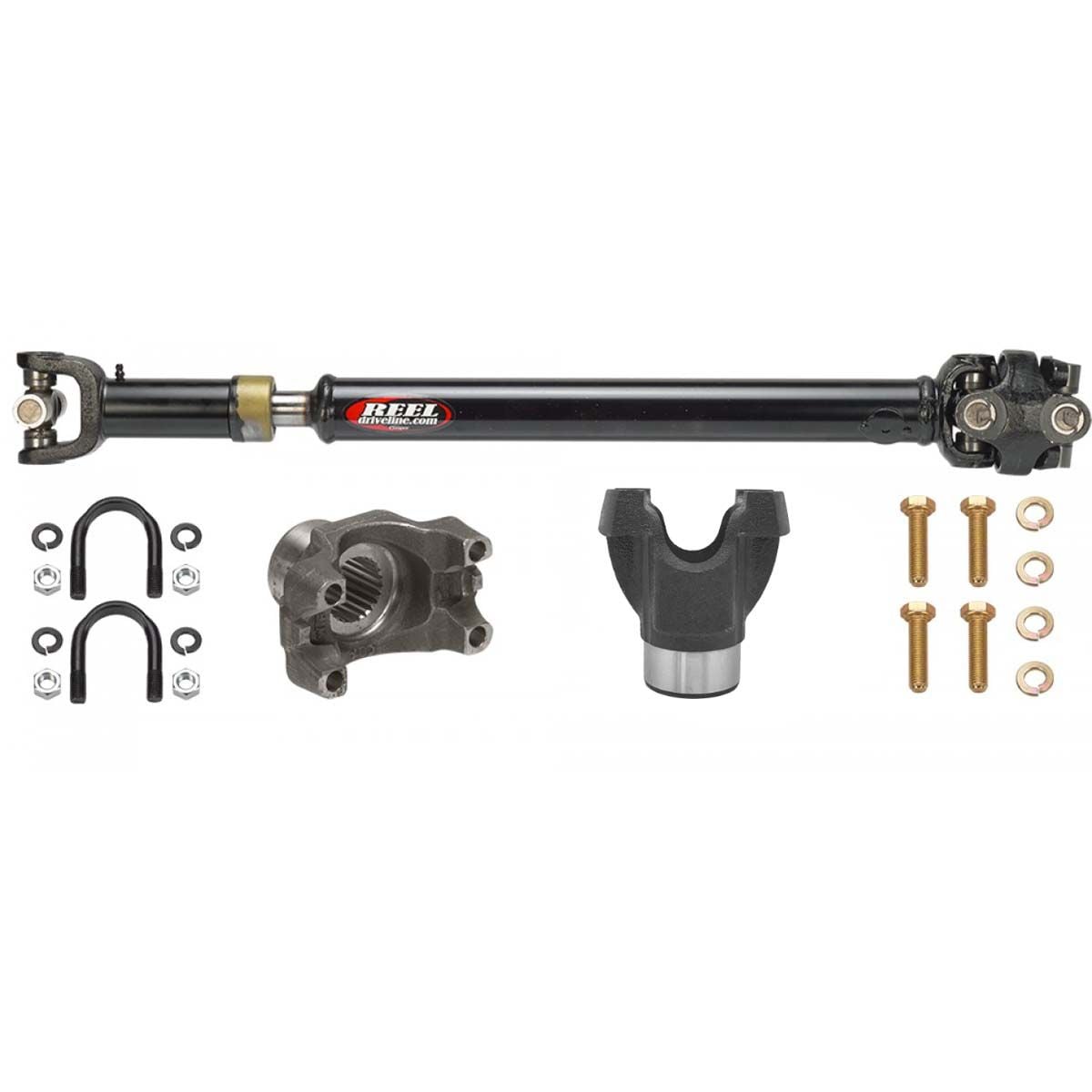

Kit Includes:
- 2 inch x.120 Tubing
- 1310 U-Joints
- Cast U-Bolt Style Yoke
- 1310 U-bolts
- T/C Yoke
- Grade 8 Hardware
- Installation Instructions
| Part # | Description | Transmission |
|---|---|---|
| JER-3112JK-24F | 2012+ Jeep JK Wrangler 1310 C.V. Front 2 / 4 Door Replacement Drive Shafts | Automatic |
| JER-3112JK-24FM | 2012+ Jeep Wrangler JK 1310 Heavy Duty Front Driveshaft with Double Cardan Joint, 2 / 4 Door | Manual |
JER-3112JK-24F (Automatic Transmission)
1310 Heavy Duty front driveshaft for 2 and 4 door Jeep JK models with an automatic transmission. This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use.
2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.54.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length.
Requirements:
- 0-4.5 inch short arm suspension kit installed.
- Dana 44 or Dana 30 Front axle
- Up to 35 inch tires
If you have an application other then the requirements listed above you can still order this kit but you will need to provide us with measurements on how to build your custom driveline. The pricing will remain the same.
JER-3112JK-24FM (Manual Transmission)
Heavy Duty. This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use only. At 35 inch tires it is strongly recommended to use the 1350 drivelines.
2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.5 to 4.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length. It's best to measure all drivelines if possible.
The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.
JK 2007-2011 Powertrain is installed at 6 degree. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 degree. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle.
This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 degree and 1350 C.V. Less than 32 degree
