RCV Front Dana 30/44 Axle Tube Seals

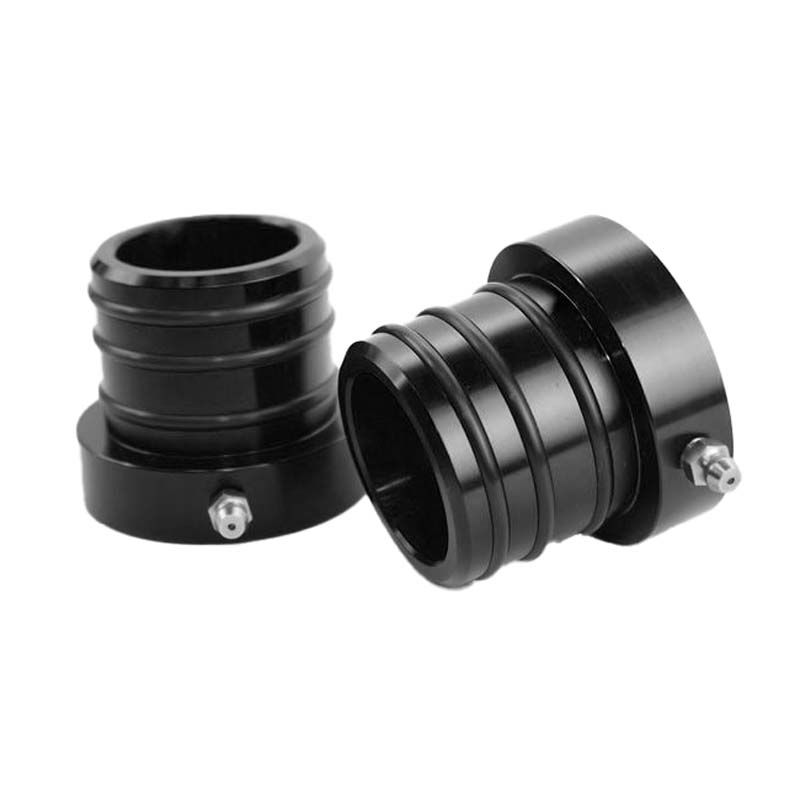

Keep the dirt and grime out of your Dana 30/44 axle tubes with RCV Dana 30/44 axle tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease.

RCV-D30SK

Keep the dirt and grime out of your Dana 30 axle tubes with RCV Dana 30 axle tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Red anodized for beauty. Seal diameter to fit 27 spline inner axle shafts. Please use D44SK to fit 30 & 35 spline axle shafts.

** Fits all standard wall Dana 30 axle tubes (2" bore diameter). Will not fit in Dynatrac's 44 ProRock with 3"x.313" tubes or Teraflex's Tera44 3.25"x 1/4" axle tubes. Please see D44SK-PROK for those options.

27 Spline Applications:

• CVJ30-U27T
• CVJ30-WJ
• CVJ30-JK
• CVJ30
• CVJ30-300M
• CVJ30-XJ

RCV-D44SK

Keep the dirt and grime out of your Dana 44 axle tubes with RCV Dana 30 (30 Spline Shafts Only) & 44 axle tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Red anodized for beauty. Seal diameter to fit 30 & 35 spline inner axle shafts. Please use D30SK to fit 27 spline axle shafts.

Note: These tube seals do not fit over the inner splines of the CVJ44-JK-35 axle. However, it is possible to disengage the inner shafts from the CV joints and slide the tube seals on from the other end CV. If you are purchasing the axles at the same time as the seals, let us know and we can ship the axle set with the tube seals already on the shafts.

** Fits all standard wall Dana 44 axle tubes (2" bore diameter). Will not fit in Dynatrac's 44 ProRock with 3"x.313" tubes or Teraflex's Tera44 3.25"x 1/4" axle tubes. Please see D44SK-PROK for those options.

RCV-D44SK-2.25

Keep the dirt and grime out of your Tera44 or RockJock44 axle tubes with RCV Dana 44 tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Yellow anodized for beauty.

Note: ** Made to fit the Teraflex44 3-1/4"x 1/2" & Currie RockJock44 3"x 3/8" Axle Tubes (2-1/4" diamater bore). Please see D44SK for standard Dana 30 & 44 axle housings & ProRock with the .5" heavy tube wall option.

RCV-D44SK-PROK

Keep the dirt and grime out of your Dynatrac Dana 44 ProRock axle tubes with RCV Dana 44 tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Orange anodized for beauty.

Note: ** Made to fit the Dynatrac's 44 ProRock with 3"x 5/16" axle tubes. Please see D44SK for standard Dana 30 & 44 axle housings & ProRock with the .5" heavy tube wall option.

RCV-JL-SK

Keep the dirt and grime out of your Jeep Wrangler JL Dana 44 axle tubes with RCV tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Orange anodized for beauty.

*Does not fit Gladiator JT Rubicon models

Note: These tube seals do not fit over the inner splines of the JL RCV Axle Sets. To install you will have to disengage the inner shaft from the RCV CV and install the seal into the housing while on the inner shaft.

RCV-JL30-SK

Keep the dirt and grime out of your Jeep Wrangler JL Dana 30 axle tubes with RCV tube seals. The kit comes complete with 2 re-buildable tube seals, each with 3 O-ring seals on the outer and 2 washer seals on the inner. Rebuilding these seals is quick and painless. Easy access Zerk fitting is located on the sides to inject grease. Orange anodized for beauty.

Note: These tube seals may not fit over the inner splines of the JL RCV Axle Sets depending on your locker/inner spline count.  To install you may have to disengage the inner shaft from the RCV CV and install the seal into the housing while on the inner shaft.
