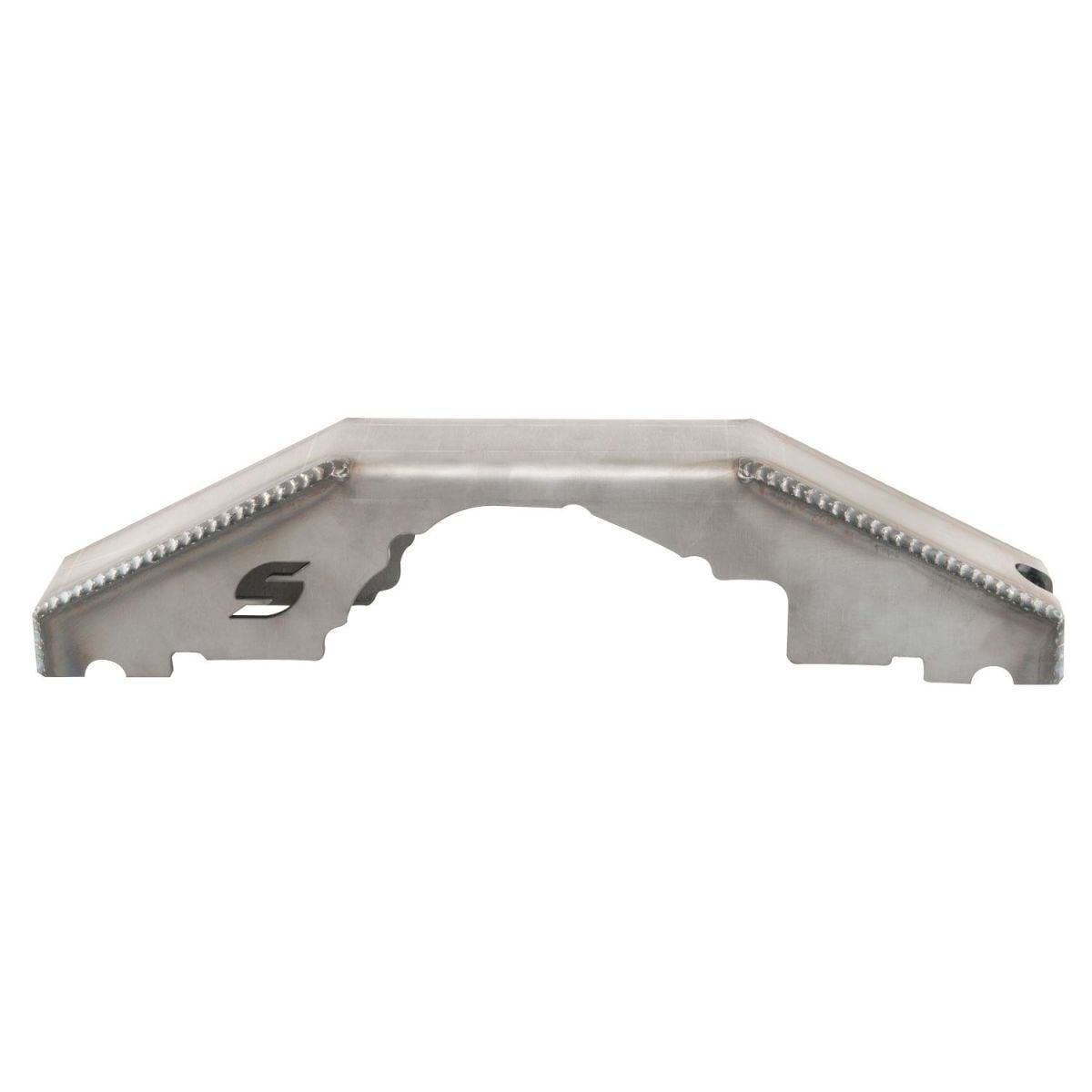

Synergy Jeep JK Weld-On Rear Axle Truss

Jeep JK rear axle truss designed to strengthen the factory rear axle housing. CNC formed design significantly reduces installation time compared to multi-piece designs and is compatible with all Synergy rear track bar relocation brackets. Recommended to be used in conjunction with 8012-15 front axle truss.

Fitment: 2007-2017 Jeep Wrangler

Features:

• Strengthens factory JK axle housing
• Formed design significantly reduces installation time compared to multi-piece designs
• Compatible with stock, Synergy Bolt-On, and Synergy Weld-On
• Track Bar Relocation Brackets
• CNC formed 3/16 inch Steel Construction
• Seams welded
• Compatible with both Rubicon and non-Rubicon Jeeps
• Does not require additional bump-stop spacer height
• Requires cutting/welding experience - should be installed by experienced welder/fabricator

Notes:

• Compatible with bolt-on and weld-on rear track bar relocation brackets, 8076, 8076-RHD, 8056, 8056-RHD and 8072-01.
• Axle truss and track bar brackets can be installed in any order.
• Recommended to be used in conjunction with 8012-15 front axle truss.
• Requires welding
• Some trimming/fitment may be required due to slight variations from axle to axle

Installation Instructions
