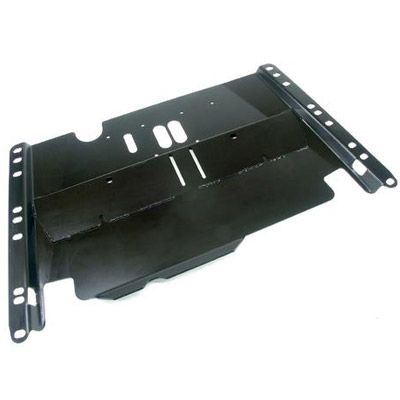

TeraFlex TJ Belly Up Skid Plate Kit

This is the Belly Up transmission/transfer case skid for a Jeep Wrangler TJ or LJ. It increases your ground clearance by up to 2-3/8" inches by replacing the factory skid plate with a lower-profile and more heavy duty skid plate.

This skid is laser cut and CNC bent from stronger and thicker material than the stock plate to provide superior protection to your undercarriage.

This kit may require the use of a 5/8" engine spacer for proper fan shroud clearance when used with a 1" body lift. (Part # 1948100). Some exhaust adjustment may be necessary. Fits all TJ Wrangler models including the Rubicon and Unlimited LJ.

Notes:

• This kit provides the maximum amount of ground clearance possible, but requires some fine tuning of the rear pinion angle to eliminate driveshaft vibration.
• A 1" engine motor mount Lift or Spacer is recommended when installing this belly up skid.
• Short shaft kit: This kit will require the use of the TeraFlex short shaft kit (Part # 4444400 or 4444401).
• Average install time is 3 hours and requires supporting the transmission and transfer case to install.

FYI: This skid can fit a YJ if you are willing to drill a few new holes.
