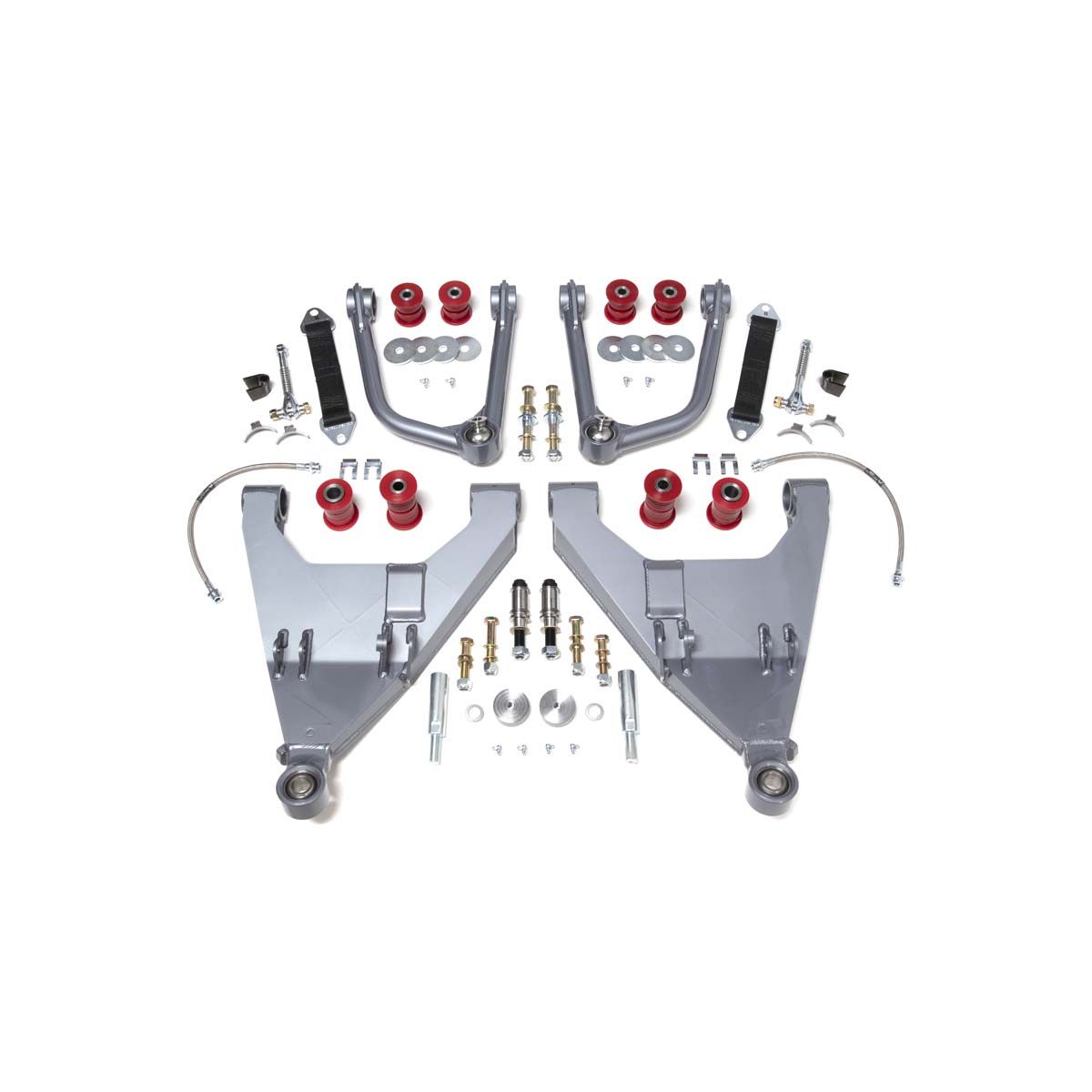

Total Chaos 3.5" Race Series Long Travel Kit for 2010+ 4Runner, 2010-2018 Lexus GX 460, 2010-2014 FJ Cruiser

• 100% chromoly constructed Race System offers maximum ground clearance and weighs 10 pounds less than the standard TC +3.5" LT kit.
• 3.5" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
• Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel and component strength. TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
• 4130 chromoly boxed and internally gusseted 3.5" extended lower control arms bolt to factory control arm mounting locations and are pre tabbed for dual shock capability.
• Lower control arms feature an integrated uniball cup that provides 2.5" additional ground clearance when compared to the standard mild steel +3.5" LT kit.
• Lower arms are 5 pounds lighter each side than the standard +3.5" LT kit.
• 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
• A secondary external bypass shock can be installed to increase dampening and tune-ability.
• Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
• Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
• DOT approved stainless steel braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and grade 8 mounting hardware is included.
• TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd.
  (axles are sold separately and not included with the kit)
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Hand crafted in the U.S.A.

• TC includes 3/4" chromoly lined heim joints for the pivots.
• 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
• Zero bushing deflection.

Note: Fiberglass fenders not required on Tacoma

Installation Instructions
