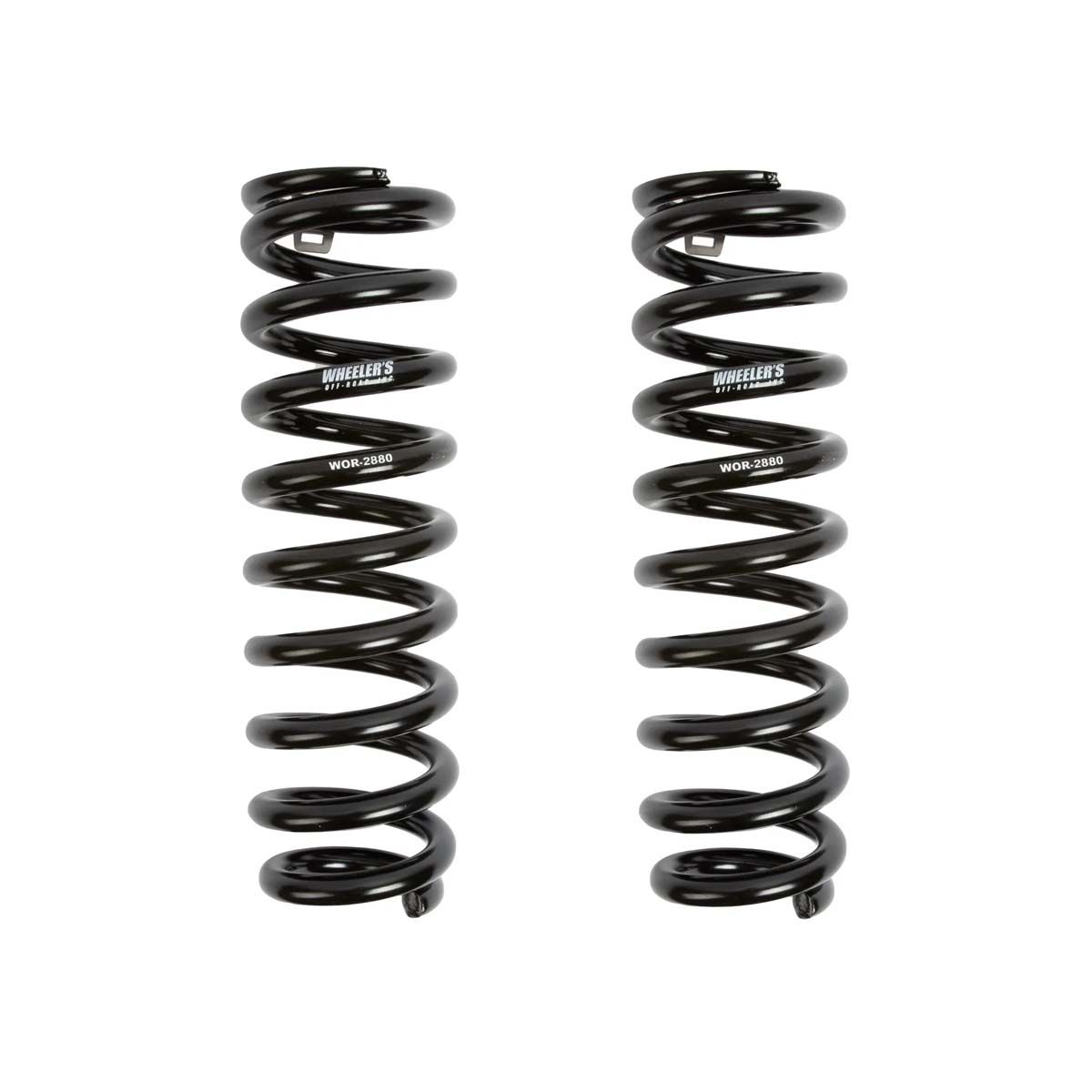

Wheeler’s Front Coil Springs for 1995-2023 Tacoma & 1996-2024 4Runner

Toyota enthusiasts loved the variety of 288X series springs that were made by a certain Australian Off-Road company and were frustrated to find out they now have limited availability or have been discontinued altogether by that same Australian company. Wheeler’s has decided to bring these springs back into production to serve the Toyota off-road community. Even better, we tooled these springs up here and make them in the USA!

WOR-312369

These springs are ideal for use in first gen Tacoma & 3rd gen 4Runner applications with aftermarket Bilstein or ARB Nitrocharger struts. They will provide approximately 1.25-1.5” of lift on an Extra Cab V6 Tacoma or 4Runner.

Specifications:

• Spring Rate = 500 lbs/inch
• Free Height = 14.76” [375 mm]
• Number of Turns = 10.2 Approx.
• Wire Diameter = .63” [16 mm]
• Material = SAE 9254 Cold-Wound Spring Steel
• Finish = Black Powder Coat
• Shot-peened for long spring life.
• Sold as a set of (2) springs.
• Made in USA.

Notes:

• For use with Bilstein 5100 struts (BE5-D558-TO, 24-249928, or 24-248730) and ARB 90004 Nitrocharger struts only. Using these springs with stock struts is not recommended. Will not work with ARB Nitrocharger Plus struts.

WOR-312370

These springs are ideal for use in first gen Tacoma & 3rd gen 4Runner applications with aftermarket Bilstein or ARB Nitrocharger struts. They will provide approximately 1.75-2” of lift on an Extra Cab V6 Tacoma, and approximately 1.5-1.75” of lift on a 4Runner.

Specifications:

• Spring Rate = 500 lbs/inch
• Free Height = 14.37” [365 mm]
• Number of Turns = 10.2 Approx.
• Wire Diameter = .63” [16 mm]
• Material = SAE 9254 Cold-Wound Spring Steel
• Finish = Black Powder Coat
• Shot-peened for long spring life.
• Sold as a set of (2) springs.
• Made in USA.

Notes:

• For use with Bilstein 5100 struts (BE5-D558-TO, 24-249928, or 24-248730) and ARB 90004 Nitrocharger struts only. Using these springs with stock struts is not recommended. Will not work with ARB Nitrocharger Plus struts.

WOR-312371

These springs are ideal for use in 2nd/3rd gen Tacoma & 4th/5th gen 4Runner applications with aftermarket Bilstein, Fox, Eibach, or ARB Nitrocharger struts. They will provide approximately 2-2.5” of lift on a 2005-2015 Tacoma, and 2” of lift on a 2016-2023 Tacoma. On the 2003-2009 4Runner with a bull bar & winch, you will get approximately 2-2.25” of lift. You can expect approximately 2.5”-3” of lift on 2010-2024 4Runner with 230+ lbs of bull bar & winch.

Specifications:

• Spring Rate = 590 lbs/inch
• Free Height = 15.75” [400 mm]
• Number of Turns = 9.75 Approx.
• Wire Diameter = .65” [17 mm]
• Material = SAE 9254 Cold-Wound Spring Steel
• Finish = Black Powder Coat
• Shot-peened for long spring life.
• Sold as a set of (2) springs.
• Made in USA.

Notes:

• For use with the following struts ONLY:

  Bilstein 5100 struts (24-280785, 24-324359, 24-239370, 24-328258, 24-263108)
  ARB Nitrocharger struts (90000, 90010, 90021)
  Eibach Pro-truck struts (E60-82-008-02-10, E60-82-007-02-10, E60-82-069-01-10, E60-82-071-02-10)
  Fox Performance 2.0 Snap Ring Coilover struts (985-62-000 & 985-62-011)


• Using these springs with stock struts is not recommended.
• Will not work with ARB Nitrocharger Plus struts.
