ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 4-12 Suspension System Tubular
The ICON Vehicle Dynamics complete suspension system for the 2023+ Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
| Part # | Description |
|---|---|
| IVD-K53234TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 4 Suspension System Tubular |
| IVD-K53235TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 5 Suspension System Tubular |
| IVD-K53236TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 6 Suspension System Tubular |
| IVD-K53237TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 7 Suspension System Tubular |
| IVD-K53238TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 8 Suspension System Tubular |
| IVD-K53239TDS | ICON 2023+ Toyota Sequoia 3-4.5" Stage 9 Suspension System Tubular CDXS (TRD) |
| IVD-K53239TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 9 Suspension System Tubular | IVD-K53240TDS | ICON 2023+ Toyota Sequoia 3-4.5" Stage 10 Suspension System Tubular CDXS (TRD) |
| IVD-K53240TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 10 Suspension System Tubular |
| IVD-K53241TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 11 Suspension System Tubular |
| IVD-K53242TS | ICON 2023+ Toyota Sequoia TRD 3-4.5" Stage 12 Suspension System Tubular |

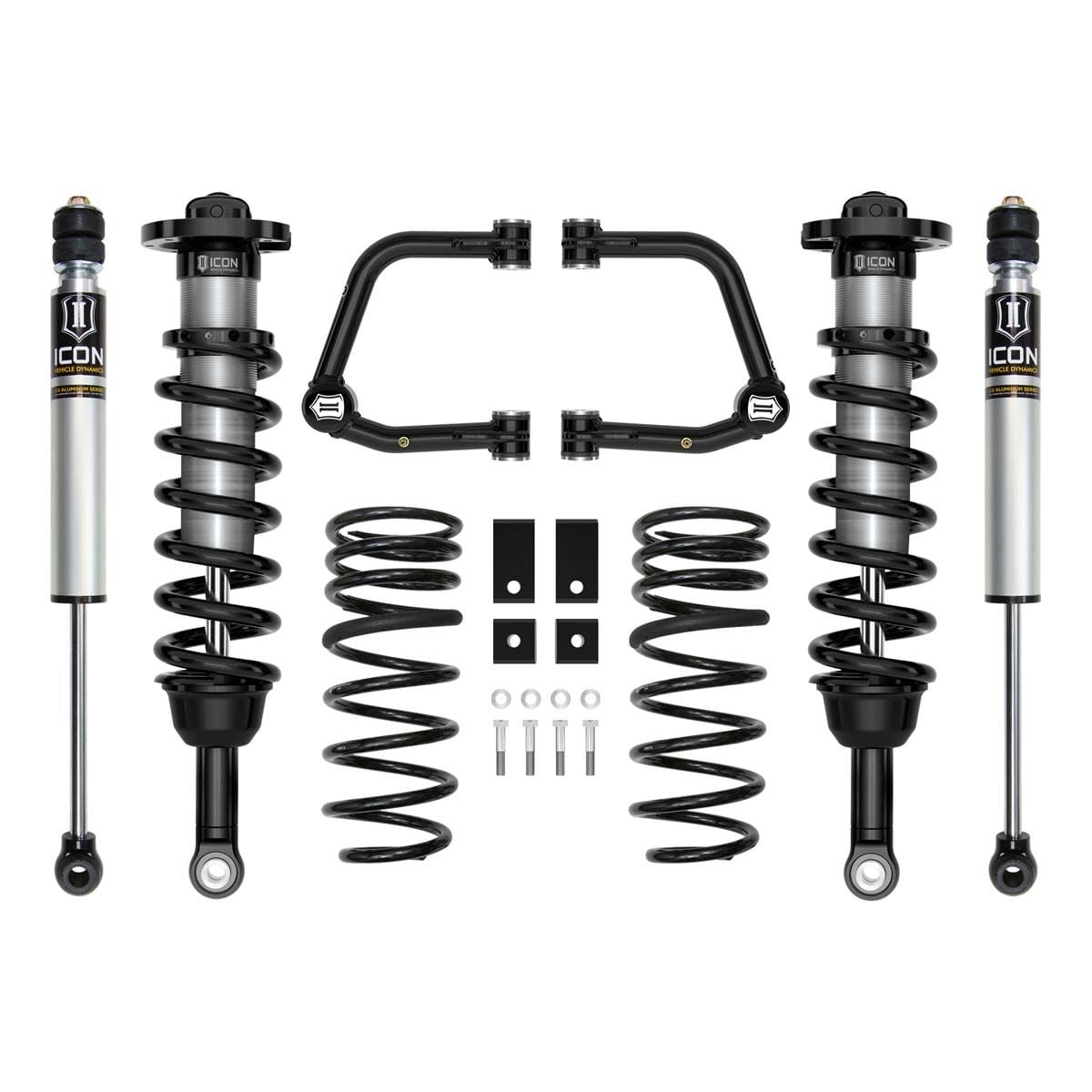

VD-K53234TS - Stage 4
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58670 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS IR COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-56516 (QTY: 2) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.0 VS IR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53235TS - Stage 5
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 5 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58670 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS IR COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-56516R (QTY: 2) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.0 VS RR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53236TS - Stage 6
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 6 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
- IVD-56516R (QTY: 2) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.0 VS RR
IVD-K53237TS - Stage 7
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 7 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-57840P (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS RR PAIR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53238TS - Stage 8
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 8 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-54002T (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
- IVD-57840P (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS RR PAIR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53239TS - Stage 9
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770C (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-57840CP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53239TDS with CDXS Shocks
Stage 9 is our basic CDXS Suspension System for 2022-25 Toyota Tundra. It yields 2 to 3.5" of front suspension lift and includes 2.5 VS front coilovers and rear shocks with CDXS dual speed damping technology, a Sway Bar Drop Kit and either billet aluminum or tubular steel Upper Control Arms with ICON's propritary Delta Joint Pro. Stage 9 is also available in 3-4.5" lift variants which also include ICON's Dual Rate Rear Coil Spring kit.
IVD-K53240TS - Stage 10
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2023-2024 Sequoia. Double adjuster rod end threads allow easy "on-vehicle" fine adjustment of track bar length without requiring removal or disassembly of the track bar. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links.
Rounding out the Stage 10 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770C (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-54002T (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
- IVD-54102T (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
- IVD-57840CP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
- IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-K53240TDS with CDXS Shocks
Stage 10 is also available in both 2 to 3.5" and 3 to 4.5" lift heights with CDXS equipped 2.5 VS front coilovers and rear shocks. In addition to everything included in Stage 9, Stage 10 adds billet or tubular upper and lower rear suspension links and ICON's billet adjustable rear track bar to fully dial in rear suspension geometry for optimal performance. 3-4.5" systems also include ICON's Triple Rate Rear Coil Springs and Billet Adjustable Rear Track Bar.
IVD-K53241TS - Stage 11
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
Rounding out the Stage 11 suspension system are 2.5 Aluminum Series rear remote reservoir shocks with CDEV specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770E (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR CDEV COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-57840EP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR
- IVD-53508 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA IIC INSTALL KIT
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
IVD-K53242TS - Stage 12
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Designed for taller rear ride heights, these coil springs yield 4" of rear lift over stock on a non-TRD Sequoia or 2" of rear lift height on a Sequoia equipped with the TRD Off-Road package or Sequoia TRD Pro, allowing for level a stance front to rear.
The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2023-2024 Sequoia. Double adjuster rod end threads allow easy "on-vehicle" fine adjustment of track bar length without requiring removal or disassembly of the track bar. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links.
Rounding out the Stage 12 suspension system are 2.5 Aluminum Series rear remote reservoir shocks with CDEV specially tailored for the 2023-2024 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Includes:
- IVD-58770E (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 2.5 VS RR CDEV COILOVER KIT
- IVD-58461DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA TUBULAR UCA DJ PRO KIT
- IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
- IVD-54002T (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
- IVD-54102T (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
- IVD-57840EP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR
- IVD-53508 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA IIC INSTALL KIT
- IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
- IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
