Timbren SES Suspension Enhancement System Rear Kit for 2000+ Toyota Tacoma / Tundra

Part #	Description
TBN-TORTNDR	Timbren SES Suspension Enhancement System for 2022-2025 Toyota Tundra - Rear Kit
TBN-TORTTN	Timbren SES Suspension Enhancement System for 2000-2023 Toyota Tundra / Tacoma - Rear Severe Service Kit
TBN-TORTUN4	Timbren SES Suspension Enhancement System for 2000-2021 Toyota Tacoma / Tundra - Rear Kit



Unstable loads while towing and hauling don’t just make for an uncomfortable ride. Difficult handling, rear sag, and corner sway create dangerous driving conditions — for you, your passengers, and other vehicles.

Whether you’re towing your RV across the country or hauling hay down the highway, Timben's Timbren SES kits level your load, making for a safe, controlled ride so smooth, you might forget you’re towing altogether.

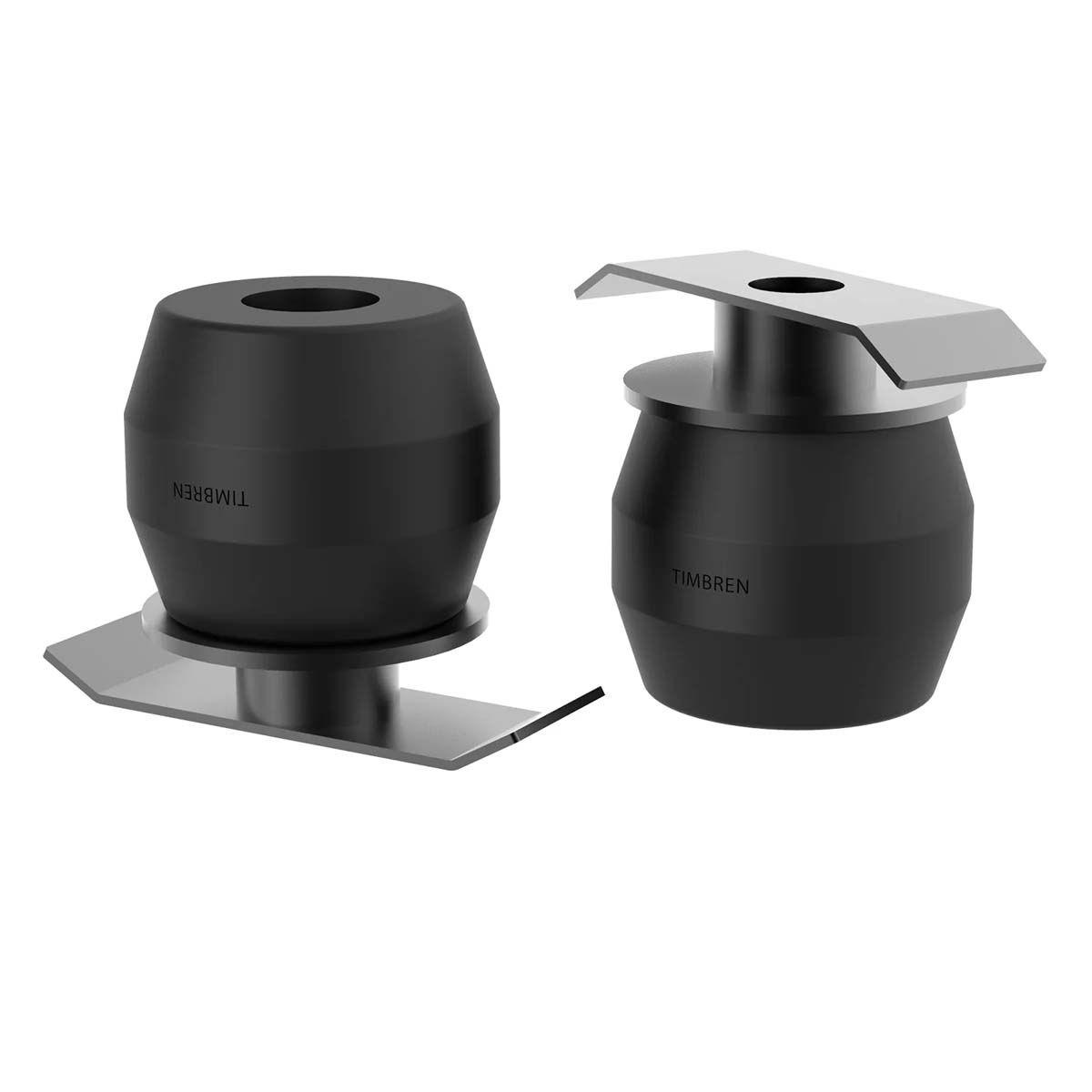

How? Timben's Aeon® rubber springs deliver a progressive spring rate. As load increases, Timben's rubber springs push back harder, eliminating squat, sway, and roll. After installation, the rubber spring will be in contact with the vehicle’s frame. This contact won’t affect ride quality — you’ll still enjoy a comfortable unloaded ride, too.

Maybe you’ve been there: white knuckles gripping the steering wheel while your truck camper sways back and forth down the highway. Add in some cross-winds, and keeping your vehicle centered on the road just became the kind of drive that makes you second-guess your trip altogether.

Hauling top-heavy loads like truck campers or salt spreaders requires more stability than other towing or hauling solutions. This is when you need Timben's Timbren SES severe service kits.

So what’s the difference between Timben's severe service kits and classic Timbren SES kits?

Both products feature the progressive spring rate of Timben's Aeon® rubbers springs. As load increases, Timben's rubber springs push back harder, eliminating squat, sway, and roll.

But Timben's Timbren SES severe service kits use a single-convoluted Aeon® spring. Designed exclusively for truck campers, these springs resist weight more aggressively to keep your vehicle level and your ride smooth. The result? No more white-knuckling it down the highway — you get a safe, stable handling of your top-heavy load.

After installation, there should be a ½” to 1 ½” gap between the rubber spring and vehicle’s frame — meaning you’ll enjoy a comfortable unloaded ride.

What makes Timbren SES kits different from other suspension enhancement systems? Unlike air bags, Timben's kits require zero post-installation maintenance. Unlike foam, these are durable enough to last under all your loads, in any weather. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

TBN-TORTNDR

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 6000 lbs
• Overall kit height = 5.75”

Fitment:

• 2024-2025 Toyota Tacoma 2WD/4WD
• 2022-2025 Toyota Tundra 2WD/4WD

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-TORTTN (Severe Service Kit)

Features:

• Made exclusively for top-heavy applications that require maximum stability, like truck campers or salt spreaders
• Reduces sag, sway, and roll when hauling top-heavy loads
• Comfortable unloaded ride
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 7,000 lbs

Fitment:

• 2016-2023 Toyota Tacoma 2WD/4WD with 4 Leaf OEM Rear Suspension
• 2000-2021 Toyota Tundra 2WD/4WD

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-TORTNDR

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 7000 lbs
• Overall kit height = 5.75”

Fitment:

• 2024-2025 Toyota Tacoma 2WD/4WD
• 2022-2025 Toyota Tundra 2WD/4WD

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-TORTUN4

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 6000 lbs
• Overall kit height = 5.25”

Fitment:

• 2013-2018 Izusu D-Max 2WD/4WD
• 2004-2024 Nissan Titan 2WD U-Bolt Clamped Bumpstop
• 2016-2023 Toyota Tacoma 2WD/4WD with 4 Leaf OEM Rear Suspension
• 2005-2016 Toyota Tacoma Pre-Runner 2WD
• 2000-2021 Toyota Tundra 2WD/4WD

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.
