Art Carr-Winters Shifter

Winters Shifters
The Art Carr-Winters Shifter is Fail-Safe! It's mechanically impossible to accidentally shift into reverse from any forward gear. A sturdy, steel guard bars the shifting rod from all other positions except first, second, or third. When you want reverse, only you can put it there. The Art Carr-Winters shifter can be installed on any street, strip or off road transmission. It is available in both conventional and reverse shift patterns.
$234.99
SKU
WPP_ACWS_PARENT_ITEM

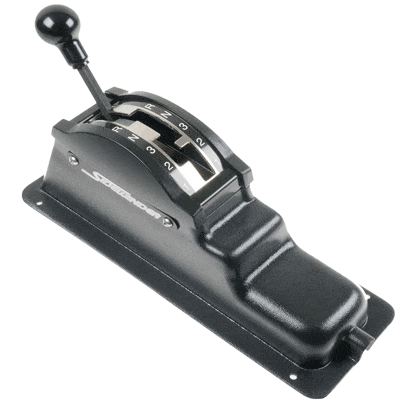

Rock Crawler Stock Shown Above

A responsiveness that puts you far ahead of your competition... the sureness that snaps you into the gear you want, when you want it... the kind of ruggedness that lets you slam it into gear without the fear of jamming or springing the mechanism... that's the Art Carr-Winters shifter for you! It's so well built, so finely engineered, so beautifully designed that you know at once... it has to be by Winters®. The Art Carr-Winters Shifter is Fail-Safe! It's mechanically impossible to accidentally shift into reverse from any forward gear. A sturdy, steel guard bars the shifting rod from all other positions except first, second, or third. When you want reverse, only you can put it there. The Art Carr-Winters shifter can be installed on any street, strip or off road transmission. It is available in both conventional and reverse shift patterns.

Dimensions:

  • 15" long x 5" wide x 11" tall
  • All shifters include basic shifter, 5 ft. cable and necessary hardware to mount to the transmission. The black plastic housing is included.
  • When selecting the Universal Flush Mount, the black plastic housing is NOT included. Both items may be purchased separately.

Gate Patterns (see application table below):

  • Stock
  • Reverse Pattern
  • Rock Crawler Stock Pattern
  • Rock Crawler Reverse Pattern
  • Lockout Stock Pattern
  • Lockout Reverse Pattern

Mounting Options:

  • Standard Console
  • Universal Flush Mount
  • Competition Shifter

Options:

Note: On some 4x4 applications modification of mounting bracket and/or linkages is required to fit.

Note: Bomber Fab Shifter Knob NOT compatible with Lockout style Shifter.

Gate Plate Part #
Application Years Stock Stock
Reverse
Rock Crawler
Stock
Rock Crawler
Reverse
Lockout
Stock
Lockout
Reverse
Flush Comp
Turbo-Hydro 400 '65+ 107-1 107-1R 107-1-C 107-2-C 107-1-B 107-2-B -9103 -8257
Turbo-Hydro 350 '69+ 157-1 157-1R 157-1-C 157-2-C 157-1-B 157-2-B -9103 -8257
700R4 & 4L60E - 177-1 - 177-1-C 177-2-C 177-1-B - -9103 -8257
4L80E - 187-1 - - - 187-1-B - -9103 -8257
Allison® LCT1000, 2000, 2400 - 197-1 - - - 197-1-B - -9103 -8257
727 Torqueflite TF-8 '66+ 207-1 207-1R 207-1-C 207-2-C 207-1-B 207-2-B -9103 -8257
American Motors '72+ 207-1 207-1R 207-1-C 207-2-C 207-1-B 207-2-B -9103 -8257
904 & 999 Torqueflite TF-6 - 257-1 257-1R 257-1-C 257-2-C 257-1-B 257-2-B -9103 -8257
Ford® C-6 '66+ 307-1 307-1R 307-1-C 307-2-C 307-1-B 307-2-B -9103 -8257
Ford® AODE & 4R70E - 327-1 - - - 327-1-B - -9103 -8257
Ford® E4OD & 4R100 - 337-1 - - - 337-1-B - -9103 -8257
Ford® C-4 '64+ 357-1 357-1R 357-1-C 357-2-C 357-1-B 357-2-B -9103 -8257
Powerglide - 507-1 507-1R - - 507-1-B 507-2-B -9103 -8257
Toyota® - 607-1 607-1R 607-1-C 607-2-C 607-1-B 607-2-B -9103 -8257
