Artec Industries Dodge Dana 60 Front Truss

ART-TR6020

Get the strongest hydraulic steering solution on the market with Artec Industries Dodge Front 60 Hydraulic Ram Mount and Truss.

Artec Industries presents the Dodge Front 60 Hydraulic Ram Mount and Truss, a heavy-duty truss system that ensures the protection of your steering components. The ram mount's unique design places it in its most effective and strongest location, near the axle centerline and away from the rocks. The skidplate, integrated with the mount, provides further protection from rocks. Compatible with PSC Motorsports and Howe Performance double-ended hydraulic rams, the truss system reinforces the axle against bending and shearing while providing a location for mounting your 3 and 4 links. The truss and ram mount work together to reinforce each other in every direction.

Features:

• Correctly angled to account for Dodge knuckles
• 3/8" thick truss top & 1/4" thick ram mount/gussets; CNC cut and bent for precision fit
• Low profile truss allows ideal geometry for link joints
• Complete axle tube reinforcement, not just for mounting links
• Interlocked 1/4" gussets for easy assembly and maximum strength
• 1/4" bridge connects truss to ram mount for extra protection
• Drainage holes in ram mount and gussets for easy cleaning and reduced weight
• Ram mount doubles as axle skid plate for protection against bending and shearing
• Additional bolt-on skid plate for easy gear removal
• Fits both PSC Motorsports and Howe Performance double-ended hydraulic rams
• Clearanced for rotated knuckles and pinions
• Optional gusset for welding removable skid plate to aftermarket differential cover
• Overall low-profile design for easier fitment and less interference with vehicle components
• Made in the USA

Notes:

• This truss is intended for Dodge 60 KINGPIN axles, not CAD (Center Axle Disconnect) balljoint axles or AAM 9.25 axles found on later model years.
• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

ART-TR6022

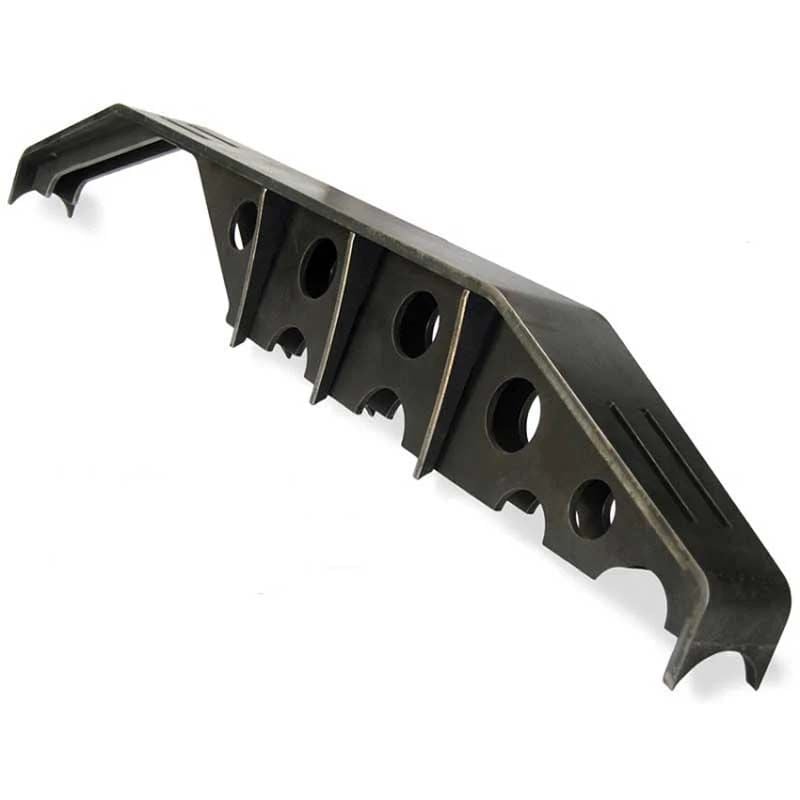

The Dana 60 Front Axle Truss by Artec Industries provides maximum strength and protection for your vehicle's steering and axle. It features a unique design and is made of 3/8" thick steel and 1/4" thick gussets.

The Artec Industries Dana 60 Front Axle Truss is designed to protect your vehicle's steering and reinforce the entire axle. The truss is made of 3/8" thick steel and 1/4" thick gussets with a unique design that strengthens both the axle and link mounting surface. With a low profile, it allows for ideal geometry and easy installation. The truss spans the entire length of the axle and features interlocked gussets for maximum strength and protection.

Features:

• 3/8" thick mild steel truss top and 1/4" mild steel gussets for strength
• Precision CNC cut and bent for perfect fitment
• Low profile design allows for ideal link joint geometry placement
• Spans entire length of axle for complete reinforcement
• Reinforced with interlocked 1/4" thick gussets for added strength
• Easy to assemble
• Sleek design makes the axle easier to fit into any vehicle
• Less likely to interfere with other vehicle components
• Made in the USA

Notes:

• This truss is intended for Dodge 60 KINGPIN axles, not CAD (Center Axle Disconnect) balljoint axles or AAM 9.25 axles found on later model years.
• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
