Artec Industries Front Axle Truss for Jeep XJ

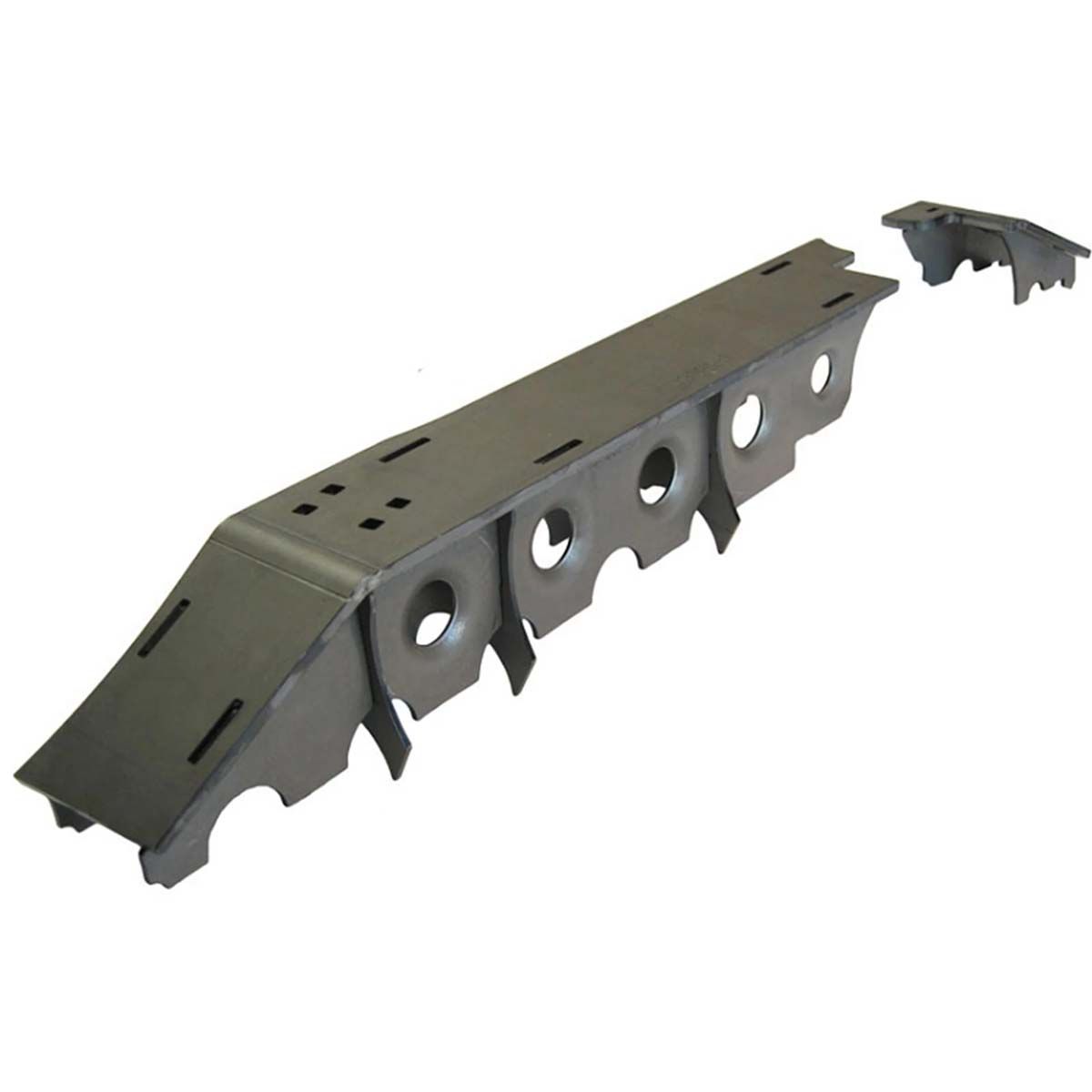

Artec Industries XJ High Pinion 30 Truss adds heavy-duty reinforcement to your front axle. It has a 1/4" thick truss top and 10 ga. gusseting to strengthen both axle tubes. The setup components are precisely cut and formed, ensuring hassle-free installation.

The Artec Industries XJ High Pinion 30 Truss is a heavy duty and light weight truss system designed to reinforce your front axle against serious abuse. The 1/4" thick truss top and 10 ga. gusseting strengthen both axle tubes, not just the long tube. Hassle-free installation guaranteed with precision cut and formed components. Upper Control Arm Options: Truss ONLY - No bushings/joints/keyed tabs included. Key hole slots on top of truss where keyed tabs would go must be filled with weld. Use this only if you aren't connecting the passenger side UCA or are reusing the factory bracket (see 4th image for details). Daystar Bushings - Includes bushing, inner sleeve, and thrust washer for Driver side and bushing, weldable outer sleeve, inner sleeve, and two keyed tabs for Passenger side. RockJock Johnny Joints - Includes 2.0" Press-in machined Johnny Joint (CE-9112M), 2.0" weldable Johnny Joint (CE-9112), and two keyed tabs for Passenger side. Both joints include greasable bolts.

Features:

• 1/4" and 10 gauge (.130") mild steel. Precision CNC cut and bent.
• Low profile design allows clearance above the axle.
• Truss spans length of long side AND short side for complete reinforcement.
• Interlocked 10 gauge thick gussets for maximum strength and easy assembly.
• Sleek design for easy installation and less interference with vehicle components.

Notes:

• This kit requires general welding and fabrication skills including welding to the cast center section. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
