Trail-Gear 8", 8" Elocker, or 8.4" Fabricated Axle Builder Kits for 79-95 & 05+ Toyota

Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects.  Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well.  Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.

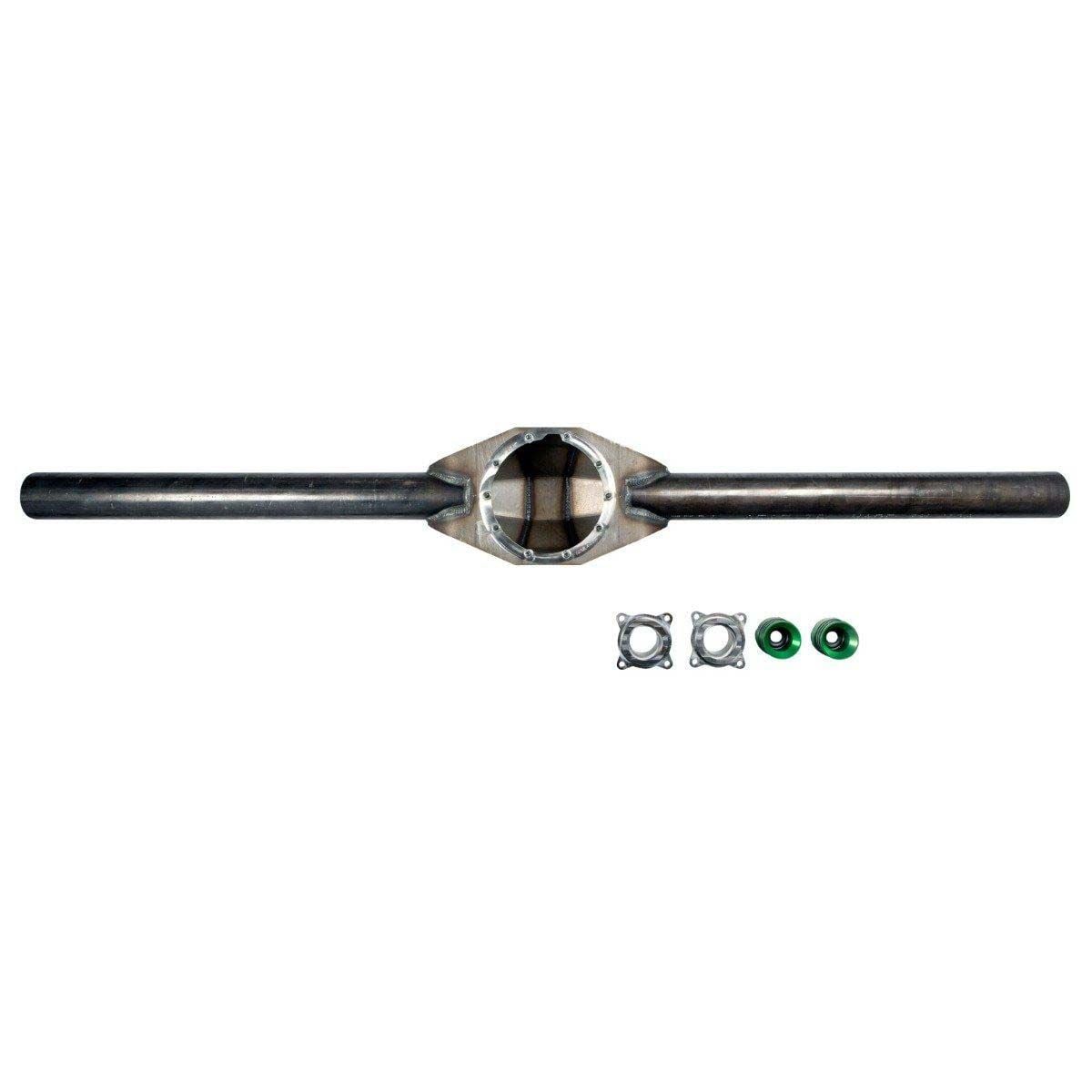

Trail-Gear’s Fabricated Axle Housings Builder Kits are available for Toyota 8", 8" E-locker, or 8.4" differentials and feature all of the same specifications as Trail-Gear's Rock Assault 9 axles.  Fabricated Axle Housing Builder Kits include a 75-inch wide Trail-Gear axle housing and two housing ends.  You can cut the axle length to size and weld your axle tube flanges where you need them.

Trail-Gear started with a 1/4" thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2" thick faceplate for anchoring the 3.5" OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.

Trail-Gear offer two different axle tube wall thickness options.  The 1/4-inch wall tube version saves weight while the 3/8-inch wall tube version provides even greater durability.

Trail-Gear also include seal housing kits for both sides.

**MADE IN THE USA**

Features:

• Customer choice of Fabricated 8", 8" Elocker, or 8.4" Axle housing
• Customer choice of 1/4" or 3/8" wall tubing
• 3.5" OD axle tubing
• Comes with seal housings.
• 1/2" faceplate
• 1/4" formed center section
• Flanges are CNC machined from Billet steel
• Flanges work with all factory axle and brake components

Note: Recommend welding seal housing set screw hole closed if using factory seals in axle flanges.
