RCV Big Bell Axle Set for 2005+ Ford F250 / F350 with REID Super Kingpin Knuckles

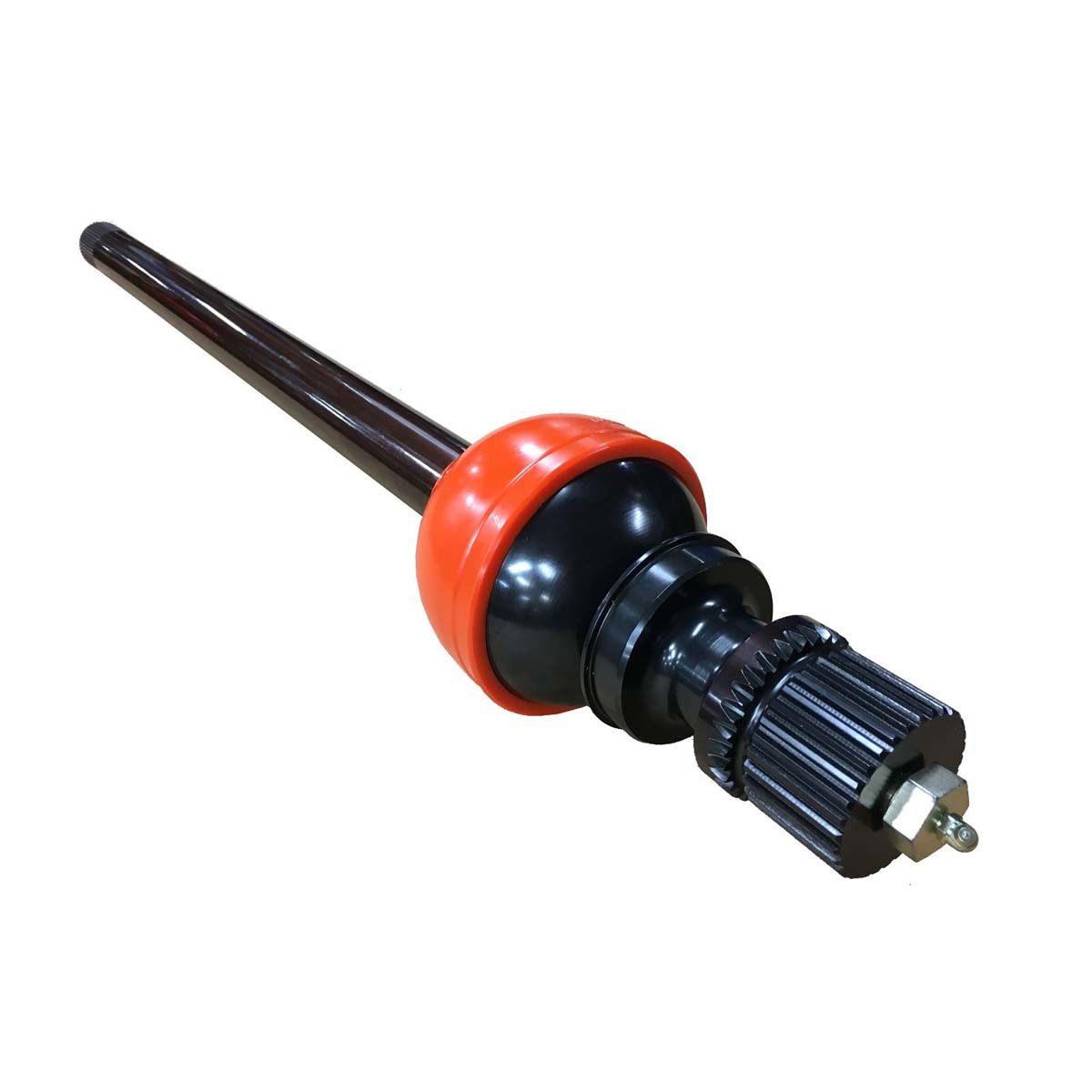

RCV Performance Big Bell CVs are the ultimate solution designed to fit big knuckles like the Reid Super Kingpin knuckles for Ford Super-60 unit bearings. The Big Bell CVs are RCV's 2.5 ton Rockwell CVs, but the outer stub is designed to fit directly to the large 32 spline 2005+ Ford Dana 60 "Super-60" unit bearing. Eliminating the need for a lock-out or drive flange, increasing strength and reliability.

This kit is designed for custom axles. The Big Bell CV is able to accept a 40 or 47 spline inner axle.

Included in this kit are (2) Big Bell CVs, and two (2) custom length inners at 40 or 47 spline.

CVJ60-SUPER-REID is designed to fit 2005+ Ford F250 & F350 axles with REID Super Kingpin knuckles. CVJ60-SUPER-REID will fit OEM Ford 2005+ F250 & F350 Super Duty knuckles with minor machining inside the knuckle.

Please note proper measurements needed for your order.
