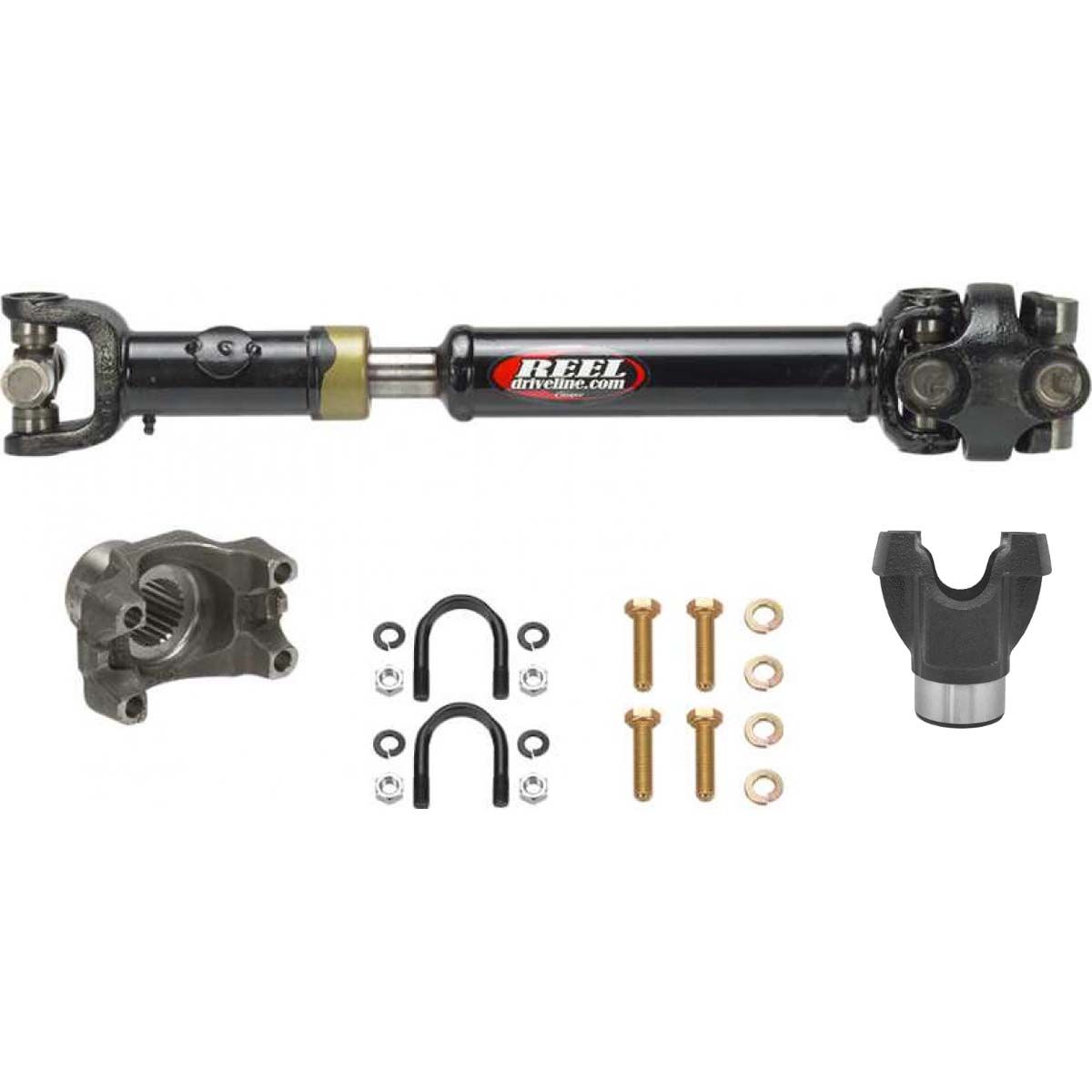

JE Reel 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 2 / 4 Door
Heavy Duty. This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use only. At 35 inch tires it is strongly recommended to use the 1350 drivelines.
2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.5 to 4.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length. It's best to measure all drivelines if possible.
The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.
JL 2018+ Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.
Details:
JER-3118JL-2R / JER-3118JL-2RM
- Collapsed Length 22.375 Inch
- Ride Height 23.875 Inch
- Extended Length 25.375 Inch
- U Joint Style 1310 W Zerk
- Tube size 2.00X.120 Inch
- Pinion/Yoke 2-4-3124R
- T/C Yoke 2-4-5341-10R
Kits Include:
- Pinion Yoke
- Transfer Case Yoke
- Retaining Hardware
- Fastners Included
JER-3118JL-4R
Details:- Collapsed Length 45.25 inch
- Ride Height 46.75 inch
- Extended Length 48.25 inch
- U Joint Style 1310 W/O ZERK
- Tube size 3.00X .083 Inch
- Pinion/Yoke 2-4-3124R
- T/C Yoke 2-4-5341-10R
Kits Include:
- Pinion Yoke
- Transfer Case Yoke
- Retaining Hardware
- Fastners Included
JER-3118JL-4RFT
Details:- Collapsed Length 45.25 inch
- Ride Height 46.75 inch
- Extended Length 48.25 inch
- U Joint Style 1310 W/O ZERK
- Tube size 3.00X .083 Inch
- Pinion/Yoke 2-4-3124R
- T/C Yoke 2-4-5341-10R
Kits Include:
- Pinion Yoke
- Transfer Case Yoke
- Retaining Hardware
- Fastners Included
JER-3118JL-4RM
Details:- Collapsed Length 43.875
- Ride Height 45.375 inch
- Extended Length 46.875 inch
- U Joint Style 1310 W/O ZERK
- Tube size 3.00X.083 Inch
- Pinion/Yoke 2-4-3124R
- T/C Yoke 2-4-5341-10R
Kits Include:
- Pinion Yoke
- Transfer Case Yoke
- Retaining Hardware
- Fastners Included
JER-3118JL-4RMFT
Details:- Collapsed Length 43.875
- Ride Height 45.375 inch
- Extended Length 46.875 inch
- U Joint Style 1310 W/O ZERK
- Tube size 3.00X.083 Inch
- Pinion/Yoke 2-4-3124R
- T/C Yoke 2-4-5341-10R
Kits Include:
- Pinion Yoke
- Transfer Case Yoke
- Retaining Hardware
- Fastners Included
| Part # | Description | Transmission |
|---|---|---|
| JER-3118JL-2R | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 2 Door | Automatic |
| JER-3118JL-2RM | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 2 Door | Manual |
| JER-3118JL-4R | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 4 Door | Automatic |
| JER-3118JL-4RFT | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft, 4 Door | Automatic Select Trac |
| JER-3118JL-4RM | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 4 Door | Manual |
| JER-3118JL-4RMFT | 2018+ Jeep Wrangler JL 1310 Heavy Duty Rear Driveshaft with Double Cardan Joint, 4 Door | Manual Select Trac |
