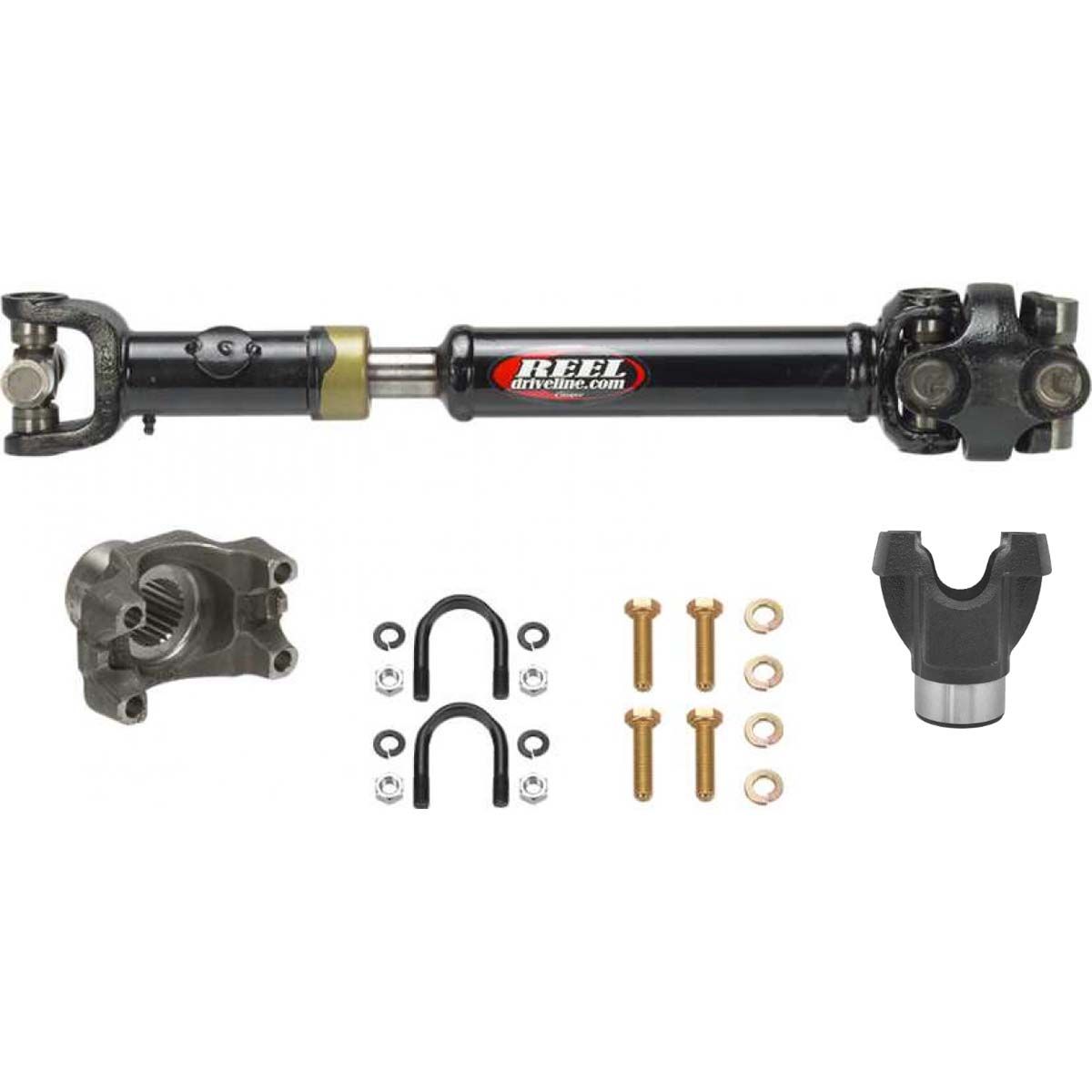

JE Reel 2018+ Jeep Wrangler JL Sport Hybrid Electric 2.0L Turbo Heavy Duty 1350 Double Cardan Rear Driveshaft with Double Cardan Joint, 2 / 4 Door

Heavy Duty 1350 Double Cardan Rear Driveshaft for a 2018-Present Jeep JL Sport Hybrid Electric 2.0L Turbo 2 / 4 door with automatic transmission. Powertrain is installed at 9.25 Inch. JL 2018+ Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2018+ model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

JER-3520JLXE-2R

Details:

• Collapsed Length 22.375 Inch
• Ride Height 23.875 Inch
• Extended Length 25.375 Inch
• U Joint Style 1350 W Zerk
• Tube size 2.00X.120 Inch
• Pinion/Yoke 2-4-3124R
• T/C Yoke 2-4-5341-10R

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included

JER-3520JLXE-4R

Details:

• Collapsed Length 45.25 inch
• Ride Height 46.75 inch
• Extended Length 48.25 inch
• U Joint Style 1350 W/O ZERK
• Tube size 3.00X .083 Inch
• Pinion/Yoke 2-4-3124R
• T/C Yoke 2-4-5341-10R

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included
