Genesis Offroad 2007-2014 Toyota FJ Cruiser DIY Kit

For the do-it-yourself guys, we now offer our high quality battery tray as a stand alone kit. If you would like to use your own battery isolator and do the wiring yourself, or if you have specific needs that our full-featured kit does not meet, now you can get the bare battery tray and top lid alone. This kit comes with no components mounted onto the top lid, but you still get all the hardware you need to install it into your 2007-2014 Toyota FJ Cruiser.

The kit includes everything you need to install the tray:

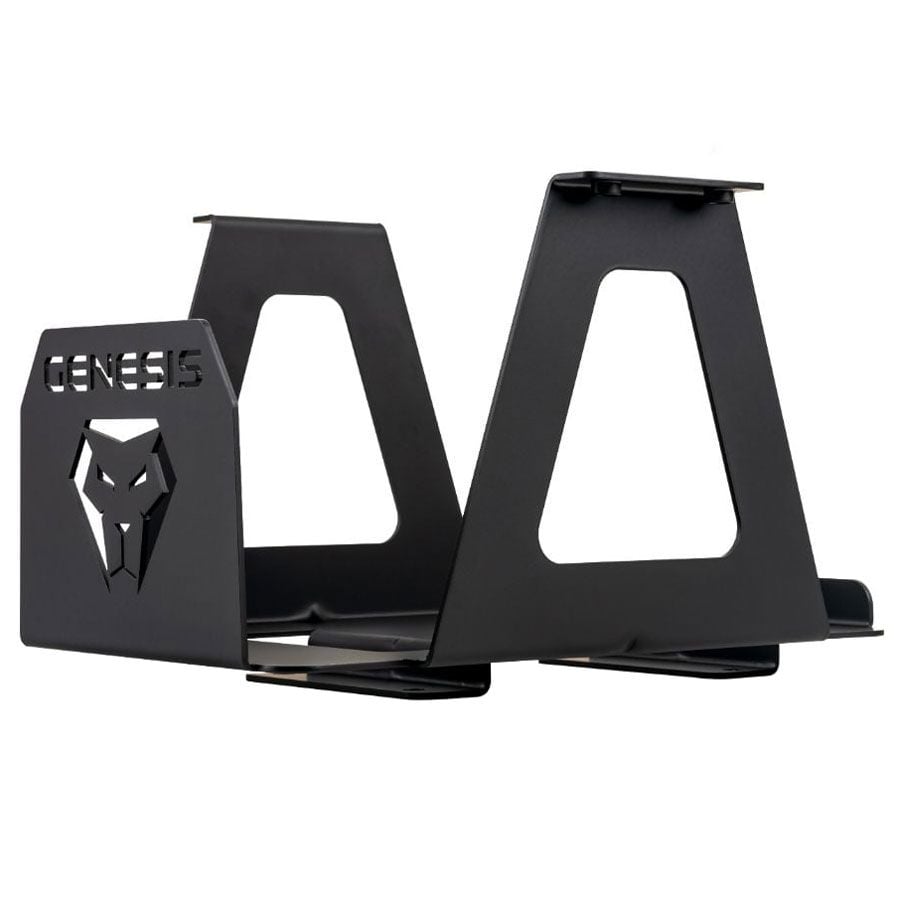

• CNC laser cut and CNC bent steel battery tray
• Top lid with grommets for routing your wires
• Rubber caps over the pressed-in studs - you can use them or remove them
• Hardware to secure the top lid
• All hardware required to install the tray and move the fuse box backwards
• Fits 2007-2014 FJ Cruiser
• Uses the factory battery cables - no cutting required
• Batteries sold separately. Matching Group 25 batteries are required.
• Powder coated for durability
• Proudly made in the USA

Follow Genesis' detailed instructions for installing the battery tray, then finish it off with your own custom wiring solution.

Battery Options:

• Any Group 25 size battery will fit Genesis' tray (Note the stock battery is not compatible)
• Both batteries must be the same physical size for the top lid to securely hold them in place

---

FAQ:

How can I hook up solar panels?
Most people want to use solar panels to be able to run their accessories for as long as possible with the engine off. You can connect the solar charge controller directly to Genesis's power and ground bus bars. The solar charge will go into your aux battery first to replace the power used by your accessories. As long as the panel is big enough to keep up with the demand and charge up the battery, then Genesis's smart isolator will link them together, and the solar will flow over to the cranking battery as well.

How do I connect a trickle charger to keep both batteries charged?
You can connect a charger to your factory positive wire on the cranking battery and the factory negative wire on the aux battery. This way the trickle charger works just like your alternator - it will charge the cranking battery first for a couple minutes, then the smart isolator links the batteries together to charge the aux battery as well.
Watch the video!

The red light on top of my isolator stays on all the time. Is something wrong?
The red LED light is a status indicator. On means the batteries are fully charged and they are connected together. Off means they are below 12.7v and the isolator has separated the batteries to protect your cranking battery from being drained by your aftermarket accessories.
Watch the video!

My isolator gets warm / hot / very hot. Is something wrong?
It is perfectly normal for your isolator to get hot. It can get up to 140 degrees, even with the engine turned off, which is way too hot to touch with your hand, but not nearly hot enough to hurt anything around it. This is a normal characteristic of any electromechanical solenoid device.
Watch the video!

I left my headlights/radio/dome lights turned on, and now the engine won't crank. I thought the system would turn off the cranking battery to protect it from getting too low.
The factory positive wire harness feeds power directly to your fuse box, which means all of the factory circuits are powered from your cranking battery. The isolator does not turn off power to the fuse box. It 'isolates' the 2 batteries from each other, to protect your cranking battery from being drained by your aftermarket accessories that you have wired up to the bus bars. If you accidentally drain your cranking battery, that's when you'd use the boost button to jump start yourself from the second battery.

My factory post clamps won't get tight enough on the battery post. It is loose and causing weird electrical issues.
The factory battery post clamps are made of light duty stamped sheetmetal, and are easy to damage. First, make sure the post clamp is fully seated all the way to the bottom of the battery post. Try loosing up the post clamp nut so it is very loose, then use a large socket and gently tap the clamp down onto the post. Now tighten the clamp nut and see if it is secure. You can also try using a battery post shim, available from your local auto parts store, to fill the gap between the clamp and the post, allowing the clamp to tighten down more securely.

Do I need an sPOD, or is it unnecessary since the kit has the power and ground bus bars for hooking up my accessories?
The sPOD system from www.4x4spod.com is a great compliment to Genesis's dual battery system. It allows you to easy add electrical accessories that need a fuse, relay, and a switch. It does have limitations, however, with the amount of current that can be used through any one switch. For example, you can't control a winch with it due to the very high amp draw for the winch. Our bus bars are perfect for connecting accessories that need direct battery power, or for those that come with a wire harness that includes a fuse, relay, and switch.

How do I connect an sPOD system to the dual battery kit?
The sPOD source unit should be connected directly to Genesis's power and ground bus bars. For the best connection, Genesis recommend using a larger ring terminal on the positive lead so that it can be connected to the large center stud on the power bus bar. The sPOD's negative lead should fit the center stud on the negative bus bar.

The sPOD is turning off my accessories. Did I hook it up incorrectly?
The sPOD has a low voltage monitor that will automatically shut circuits down to avoid draining your battery too much. When adding an sPOD to Genesis's dual battery kit, Genesis recommend you pull out the 2 amp fuse inside the Source box. It is the only 2 amp fuse you'll see when you remove the cover. This will disable its low voltage cutoff system. Since you have 2 batteries, and since Genesis's smart isolator will already protect your cranking battery from getting drained, you probably don't care if your accessory battery gets drained down all the way. That's why you have 2 batteries in the first place!

Is it ok to use my favorite brand of batteries, or are the Optima and Odyssey batteries the only choice?
Any Group 25 battery will work in Genesis's tray. That refers to the physical size of the battery.

---
