Van Compass Mercedes Benz Sprinter 2500 & 3500 AWD Engine Skid Plate

Explore with confidence in your AWD Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into. The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4" thick 5052 Aluminum and 3/16" high strength steel. The skid system is 100% bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system. For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!

With the release of the AWD Sprinter chassis in 2023, Mercedes changed the front subframe of the Sprinter and adapted a new powertrain to fit. This skid part number is specifically fit to the 2023+ AWD models with 4-cyl diesel and 9-speed auto transmission, and includes the over run mounts required to mount skid plates (usually missing on a 3500).

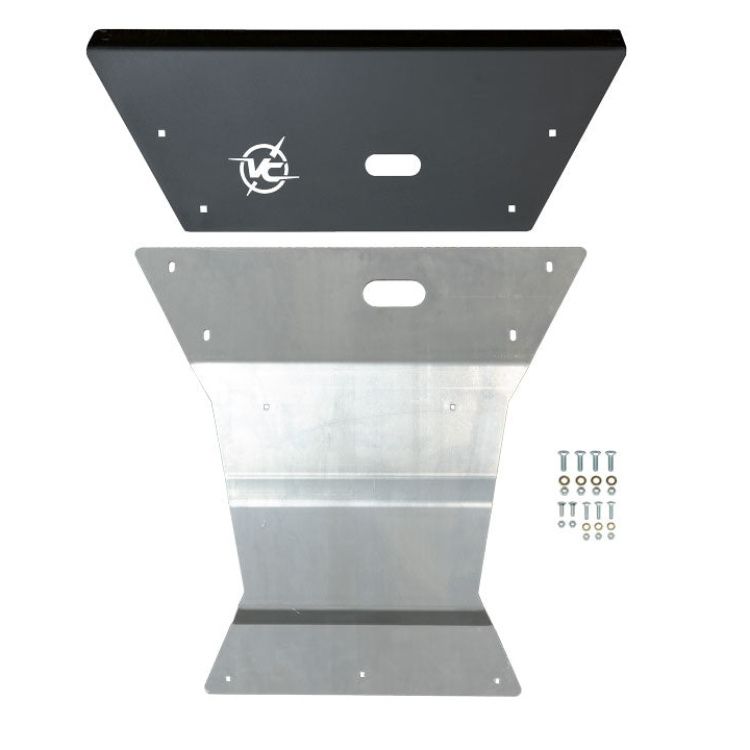

Kit Includes:

• 3/16" Steel Front Bash Plate, Black Powder Coat finish for corrosion protection
• Engine Skid Plate - 1/4" 6061 T-6 Aluminum
• All necessary hardware
• Left and Right Over-Run mounts (Included with 3500 kit)
• Total installed weight 55lbs

Skid Plate Installation Instructions
Over Run Mount Installation Instructions
