Trail-Gear Frame & Axle Panhards

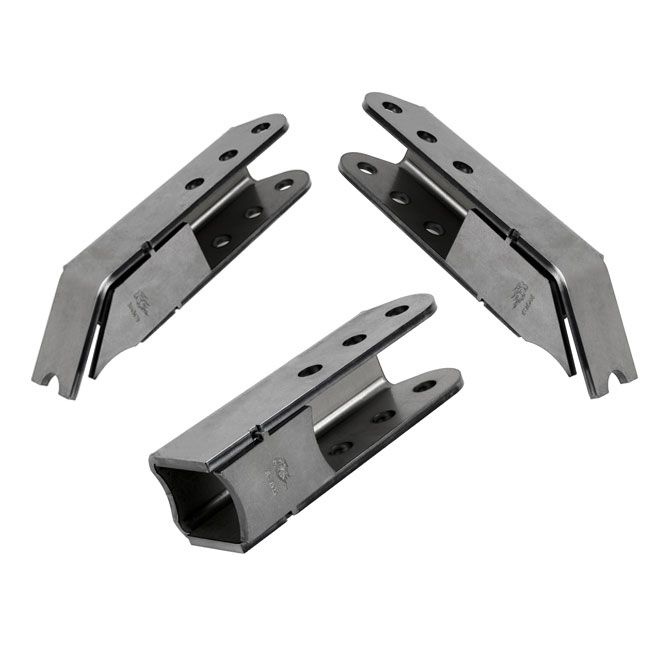

These offset and adjustable panhard brackets are laser cut and formed in Trail-Gear'sown facility. They are designed to have a 15° angle from vertical. The three mounting holes that are 9/16” in diameter and spaced 1-3/4” apart giving a total of 3-1/2” of adjustment. These brackets are shipped unfinished and unwelded giving you the freedom to trim or adjust the bracket as desired.

This bracket was designed to work with ¾ inch rod ends using misalignment spacers with an inside width of 1-3/4" and a 9/16" through-hole. Comes with a weld-on reinforcement plate to strengthen bracket.

Note: Sold Individually

These axle mounted panhard brackets are laser cut and formed in Trail-Gear'sown facility. This is Trail-Gear'scentered version for 3” and 3-1/2” axles. The mounting holes are 9/16” and have 1-1/2” spacing giving you 3” of mounting adjustment. These brackets are shipped unfinished and unwelded giving you the freedom to trim or adjust the bracket as desired.

This bracket was designed to work with ¾ inch rod ends using misalignment spacers with an inside width of 1-3/4" and a 9/16" through-hole. Comes with a weld-on reinforcement plate(s) to strengthen bracket.

Note: Sold Individually

These axle mounted panhard brackets are laser cut and formed in Trail-Gear'sown facility. This is Trail-Gear'soffset from axle center version for 3” and 3-1/2” axles. The mounting holes are 9/16” and have 1-1/2” spacing giving you 3” of mounting adjustment. These brackets are shipped unfinished and unwelded giving you the freedom to trim or adjust the bracket as desired.

This bracket was designed to work with 3/4-inch rod ends using misalignment spacers with an inside width of 1-3/4" and a 9/16" through-hole. Comes with a weld-on reinforcement plate(s) to strengthen bracket.

Note: Sold Individually
