Artec Industries Chevy Dana 60 Front Truss

ART-TR6010

Introducing the Chevy Front 60 Hydraulic Ram Mount and Truss for the strongest hydraulic steering solution in the market. Compatible with PSC Motorsports and Howe Performance double-ended hydraulic rams.

Artec Industries has introduced the new Chevy Front 60 Hydraulic Ram Mount and Truss. The system is designed to provide the best protection to your steering components. The unique design keeps the ram in its most effective and strongest location, and the 1/4" thick skidplate protects it from rocks. The truss extends end-to-end of the axle tube, providing a location for mounting 3 and 4 links, and reinforcing the axle against bending and shearing. The unique gusseting design allows both the truss and ram mount to completely reinforce each other in every direction. The system is compatible with PSC Motorsports and Howe Performance double-ended hydraulic rams.

Features:

• 3/8" thick truss top and 1/4" thick ram mount/gussets, CNC cut and bent for great fitment.
• Low profile design allows for ideal geometry for link joints.
• Span the entire length of axle for complete reinforcement of the axle tubes.
• Interlocked gussets provide maximum strength and easy assembly.
• Ram mount doubles as an axle skid plate for added protection.
• Drainage holes in ram mount and gussets for easy cleaning and reduced weight.
• Includes additional gusset for welding removable skid plate to an aftermarket differential cover.
• Clearanced for use with rotated knuckles and pinions.
• Fits PSC Motorsports and Howe Performance double-ended hydraulic rams.
• Additional bolt-on skid plate in front of differential for easy removal of gears.
• Overall low profile design means your axle is stronger, sleeker, and easier to fit into any vehicle.
• Made in the USA
• Get yours today, and get the best!

Notes:

• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.

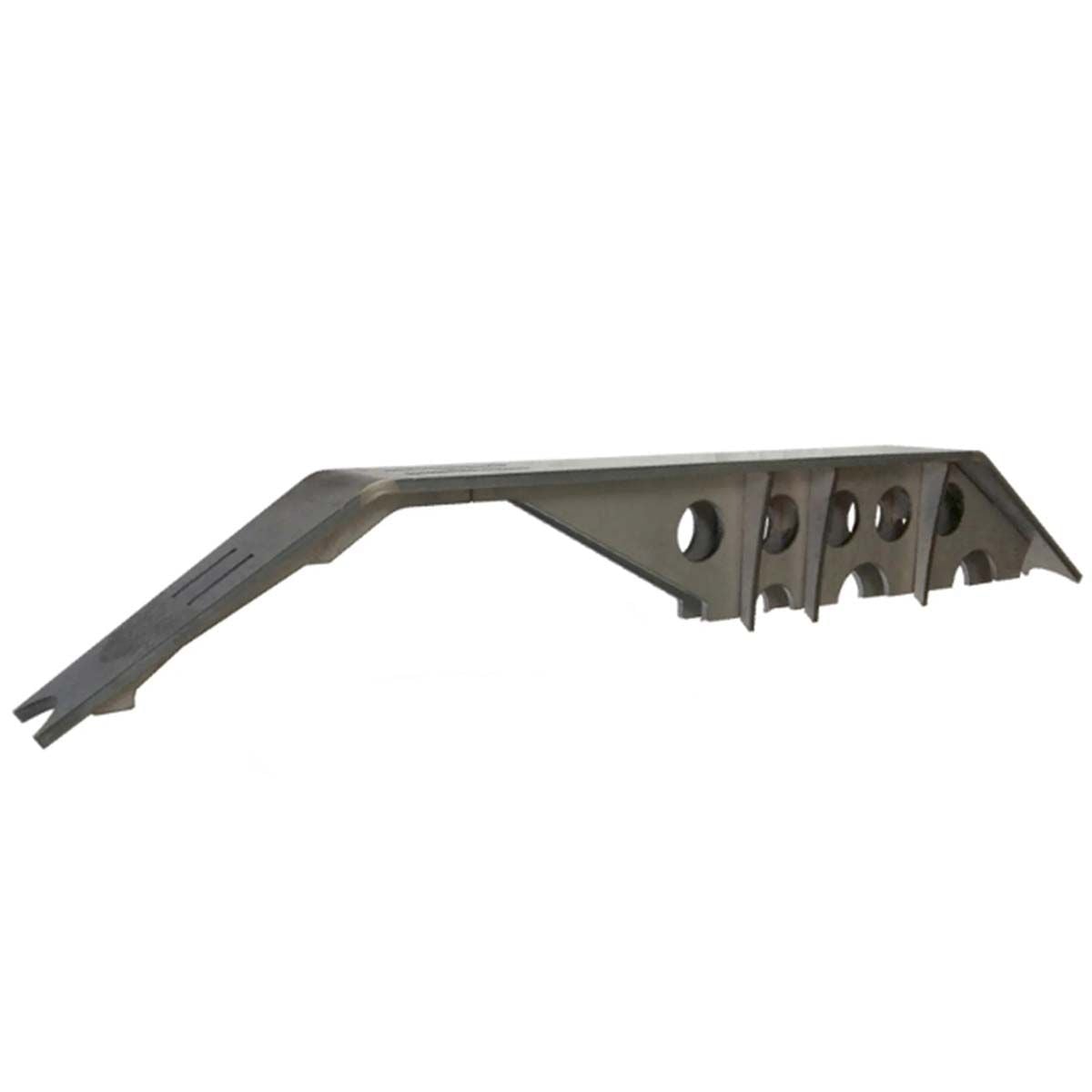

ART-TR6011

The Chevy 60 Front Axle Truss by Artec Industries provides maximum strength and protection for your vehicle's steering and axle. It features a unique design and is made of 3/8" thick steel and 1/4" thick gussets.

The Artec Industries Chevy 60 Front Axle Truss is designed to protect your vehicle's steering and reinforce the entire axle. The truss is made of 3/8" thick steel and 1/4" thick gussets with a unique design that strengthens both the axle and link mounting surface. With a low profile, it allows for ideal geometry and easy installation. The truss spans the entire length of the axle and features interlocked gussets for maximum strength and protection.

Features:

• 3/8" thick mild steel truss top and 1/4" mild steel gussets for strength
• Precision CNC cut and bent for perfect fitment
• Low profile design allows for ideal link joint geometry placement
• Spans entire length of axle for complete reinforcement
• Reinforced with interlocked 1/4" thick gussets for added strength
• Easy to assemble
• Sleek design makes the axle easier to fit into any vehicle
• Less likely to interfere with other vehicle components
• Made in the USA

Notes:

• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
