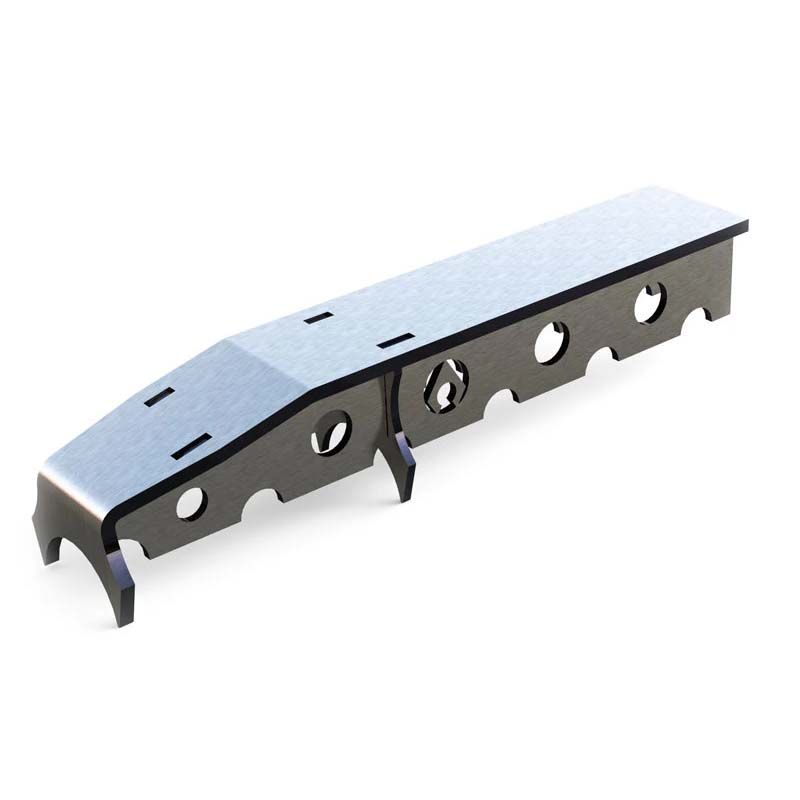

Artec Industries Modular Truss End 3.5 Inch Long

Artec Industries introduces the NEW Modular Truss Ends that complement the Modular and Short Trusses, enabling them to grow up and become full-width trusses. The product features a design inspired by Artec Industries Low Profile Front Trusses, providing a more compact truss that doesn't obstruct other vehicle components. The 3/8" thick truss top and 1/4" thick gussets strengthen the axle and provide a link mounting surface or bumpstop pad. You can use a long Modular Truss End with a 14 bolt short truss to make a 14 bolt front axle. The overall length of the Modular Truss End is 20.73"

Artec Industries' NEW Modular Truss Ends complement Modular and Short Trusses for full-width trusses. Features a Low Profile design, strengthening axle with 3/8" thick truss top and 1/4" thick gussets. Provides link mounting surface or bumpstop pad. Can use long Modular Truss End with a 14 bolt short truss to make a 14 bolt front axle. Overall length is 20.73".

Features:

• 3/8" mild steel truss top and 1/4" mild steel gussets for strength and precision fitment
• Compatible with Artec Modular and Short Trusses and other short style trusses
• 3.5" axle tube diameter for compatibility with most axles
• Allows for customization of truss system to fit specific needs
• Provides a lower profile than standard rear trusses for clearance and bumpstop pad
• Reinforced with interlocked 1/4" gussets for maximum strength and easy assembly
• Overall low profile design results in a stronger, sleeker axle that fits easily into any vehicle without interference.
• Made in the USA

Notes:

• This truss end is flat on the end and not contoured to any truss. THIS REQUIRES TRIMMING TO FIT. This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
