Artec Industries Dana 80 Rear Truss

Artec Industries NEW Dana 80 Rear Axle Truss provides heavy-duty reinforcement, adjustable pinion angles, and a flat surface for upper links, perfect for centered differential Dana 80 axles.

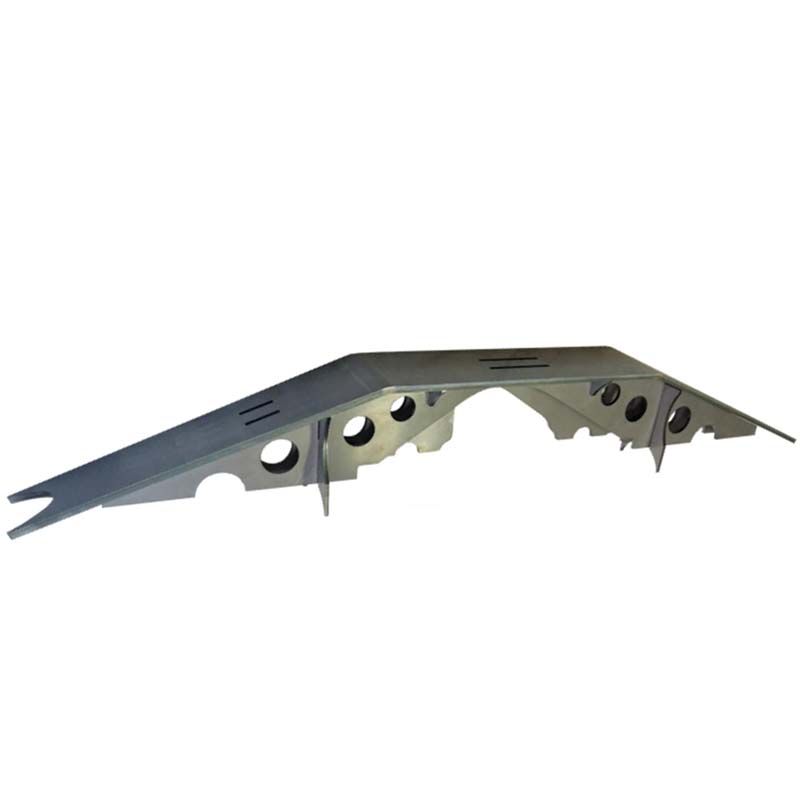

Introducing Artec Industries' NEW Dana 80 Rear Axle Truss, a heavy-duty solution for reinforcing your axle and providing a flat surface to mount upper links. With a 3/8" thick truss top and 1/4" thick gussets, this unique design strengthens both the axle and link mounting surface. The truss accommodates pinion angles from 7 to 20 degrees and fits centered differential Dana 80 axles. Experience unparalleled durability and performance with a truss spanning about 53 inches.

Features:

• 3/8" thick steel truss top, 1/4" mild steel gussets
• Precision CNC cut and bent for excellent fitment Low profile for ideal link joint mounting
• Spans entire axle length for complete reinforcement
• Reinforced with interlocked 1/4" thick gussets
• Maximum strength and easy assembly
• Stronger, sleeker axle, suitable for any vehicle
• Minimizes interference with vehicle components
• Made in the USA

Notes:

• This truss is very form fitting to the contours of the casting. Due to variances in casting of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.
• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
