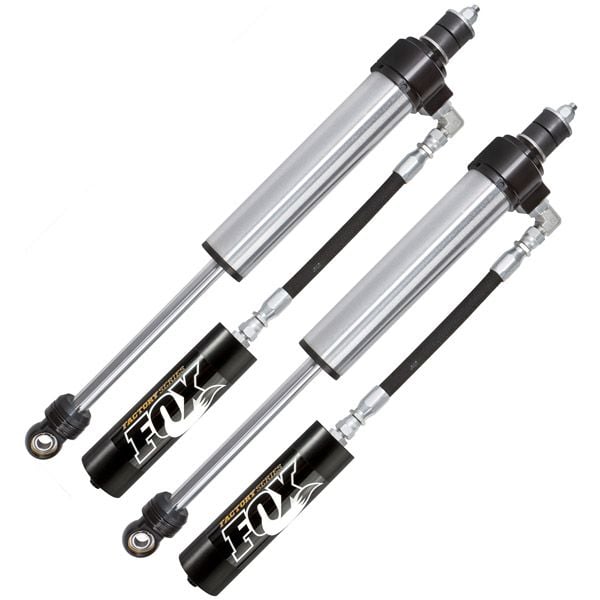

Fox 2.5 Internal Bypass Reservoir Shock Kit for 07-18 Jeep JK Wrangler

Factory Race Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions. Fox's athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

External reservoir allows for increase oil and nitrogen capacity while delivering striking race performance. Factory Series shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Factory Race Series 2.5 Reservoir shocks deliver.

Internal Bypass (IBP):
Position-sensitive internal-bypass control in a coil-over body. For classes that mandate a single shock per wheel or anyone who wants it all. Provides bypass damping and suspends the vehicle in a compact lightweight package. Fox's patented tnternal bypass technology offers position sensitibe damping that adapts to any terrain on or off the raod, provifings a plush, predicatable ride everywhere you go.

Features:

• Body - 2.5" smooth bore zinc plated seamless steel body
• Body Plating - Zinc-plated and double-clear coated for long lasting finish
• Reservoir - 2.5" Smooth bore and honed seamless alloy reservoir
• Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft - 7/8" hard chrome plated heat-treated alloy steel
• Piston - Race-developed high-flow piston design
• Valving - Application specific valving to maximize performance
• Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Front Specifications:

• Top Mount - Stem Mount
• Bottom Mount - Eyelet

Rear Specifications:

• Top Mount - Bar Pin
• Bottom Mount - Eyelet

Sold as a PAIR with all needed mounting hardware for both shocks and reservoirs
