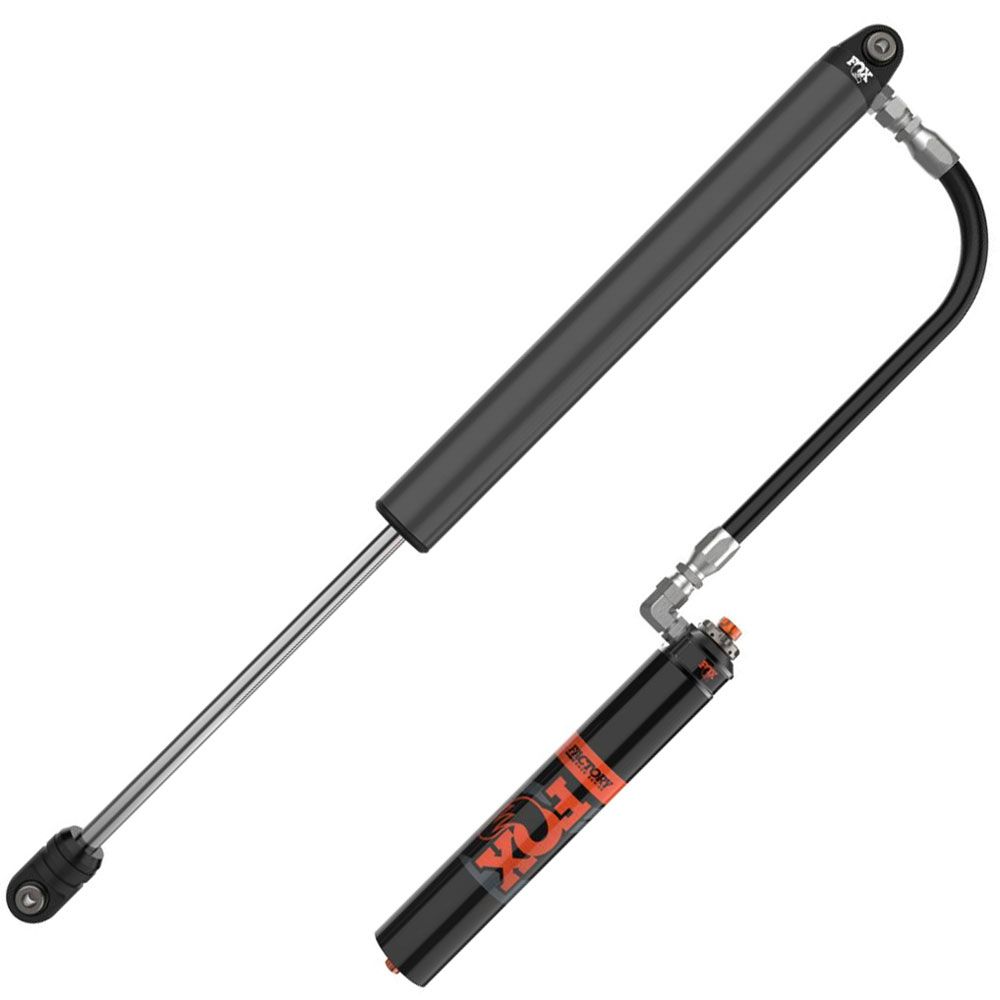

FOX FACTORY RACE 2.5 X 8 SMOOTH BODY REMOTE SHOCK - DSC ADJUSTER

Be the first to review this product

From $904.95

Only %1 left

SKU

FOX-981-25-000-3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Factory Race Series Smooth Body shocks deliver race winning damping performance and proven components in an easy-to-mount assembly. Smooth Body shocks are ideal for applications that are already equipped with a primary spring to suspend the vehicle’s weight (i.e. leaf springs or torsion bar).

Features:

Body Finish: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
Bearing: Wire ring bearing design
Seals: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
Wear Band: PTFE coated bronze impregnated steel piston wearband
Eyelet: 1.95” black anodized billet aluminum lower eyelet standard
FAV Cap:Orange anodized billet aluminum FAV cap
Top Mount: Eyelet
Bottom Mount: Eyelet
Reservoir: Remote
Reservoir Hose: -10 x 18.00"
Mounting: 1/2" x 1-1/2"

Part #	Description	Extended	Collapsed	Travel	Reservoir Size
FOX-981-25-000-3	Factory Race 2.5" X 8" Smooth Body Remote Shock w/ DSC Adjuster	24.45"	16.5"	7.95"	2.55" x 10.00"
FOX-981-25-001-3	Factory Race 2.5" X 10" Smooth Body Remote Shock w/ DSC Adjuster	28.45"	18.5"	9.95"	2.55" x 10.00"
FOX-981-25-002-3	Factory Race 2.5" X 12" Smooth Body Remote Shock w/ DSC Adjuster	32.45"	20.5"	11.95"	2.55" x 10.00"
FOX-981-25-003-3	Factory Race 2.5" X 14" Smooth Body Remote Shock w/ DSC Adjuster	37.45"	23.5"	13.95"	2.55" x 14.00"
FOX-981-25-004-3	Factory Race 2.5" X 16" Smooth Body Remote Shock w/ DSC Adjuster	41.45"	25.5"	15.95"	2.55" x 14.00"
