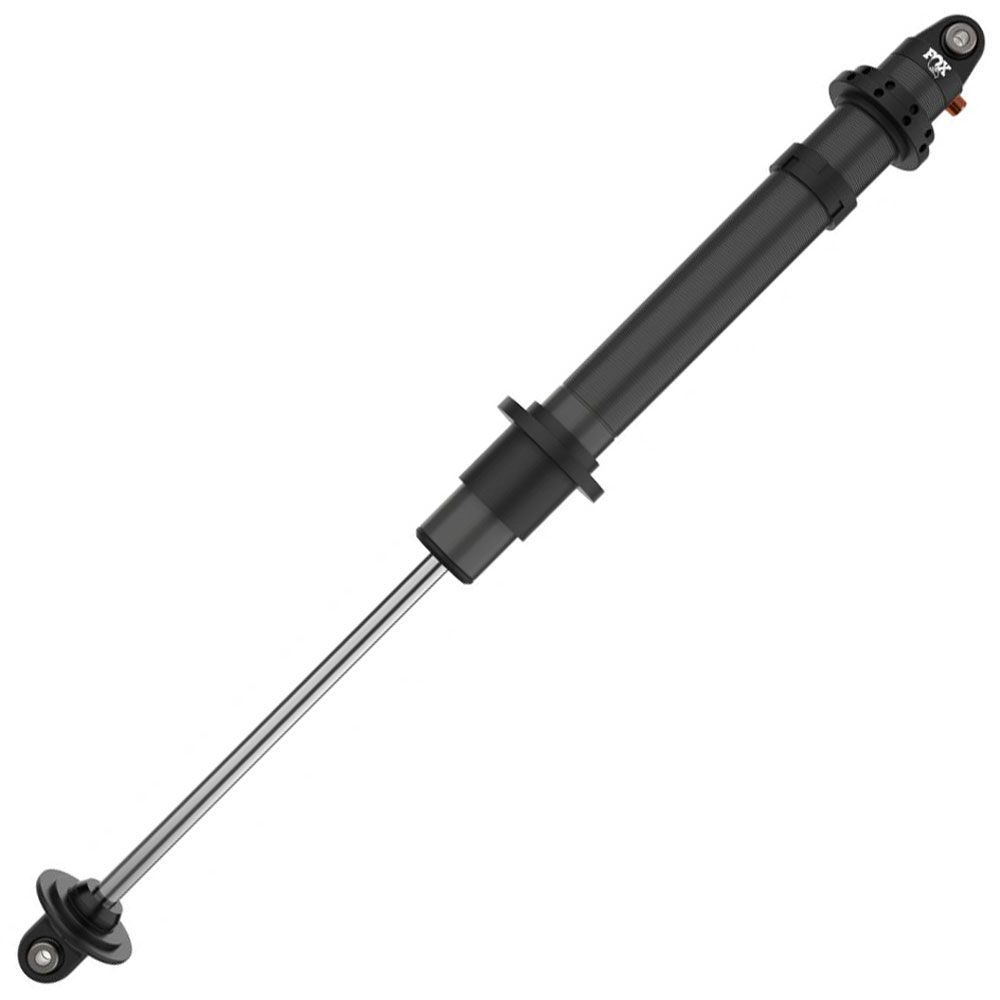

FOX FACTORY RACE 2.5 X 8 COIL-OVER EMULSION SHOCK

FOX FACTORY RACE 2.5 X 8 COIL-OVER EMULSION SHOCK
From $744.95
Only %1 left
SKU
FOX-981-25-100

Fire, LEO, EMS, Medical, and Military Discounts | Get Verified

Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride

Features:

  • BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
  • BEARING: Wire ring bearing design
  • WEAR BAND: PTFE coated bronze impregnated steel piston wearband
  • EYELET: 2” black anodized billet aluminum lower eyelet now standard
  • FAV CAP: Orange anodized billet aluminum FAV cap
  • COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
  • BODY: Smooth bore and honed seamless steel
  • SHAFT: 7/8" hard chrome plated 17-4 H900 stainless steel shafts
  • PISTON: 6061-T6 hard-anodized billet aluminum 9-port high-flow piston
  • VALVING: Tunable, velocity sensitive deburred valve shims
  • SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
  • OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
  • HEIMS: PFTE-lined, heat-treated steel spherical bearings
  • HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
  • INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
  • ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point | DSC (Dual Speed Compression) option

Configuration:

  • RESERVOIR: Emulsion, Piggyback, Remote
  • ADJUSTERS: Non-adjustable, DSC (Dual Speed Compression)
  • EYELET LENGTH: 1.95"
  • MOUNTING: 1/2" x 1-1/2"
  • SPRING COMPATIBILITY: 3.00" ID
Part # Description Extended Collapsed Travel
FOX-981-25-100 Factory Race 2.5 X 8 Coil-Over Emulsion Shock 24.45" 16.5" 7.95"
FOX-981-25-101 Factory Race 2.5 X 10 Coil-Over Emulsion Shock 28.45" 18.5" 9.5"
FOX-981-25-102 Factory Race 2.5 X 12 Coil-Over Emulsion Shock 32.45" 20.5" 11.95"
FOX-981-25-103 Factory Race 2.5 X 14 Coil-Over Emulsion Shock 37.45" 23.5" 13.95"
FOX-981-25-104 Factory Race 2.5 X 16 Coil-Over Emulsion Shock 41.45" 25.5" 15.95"
