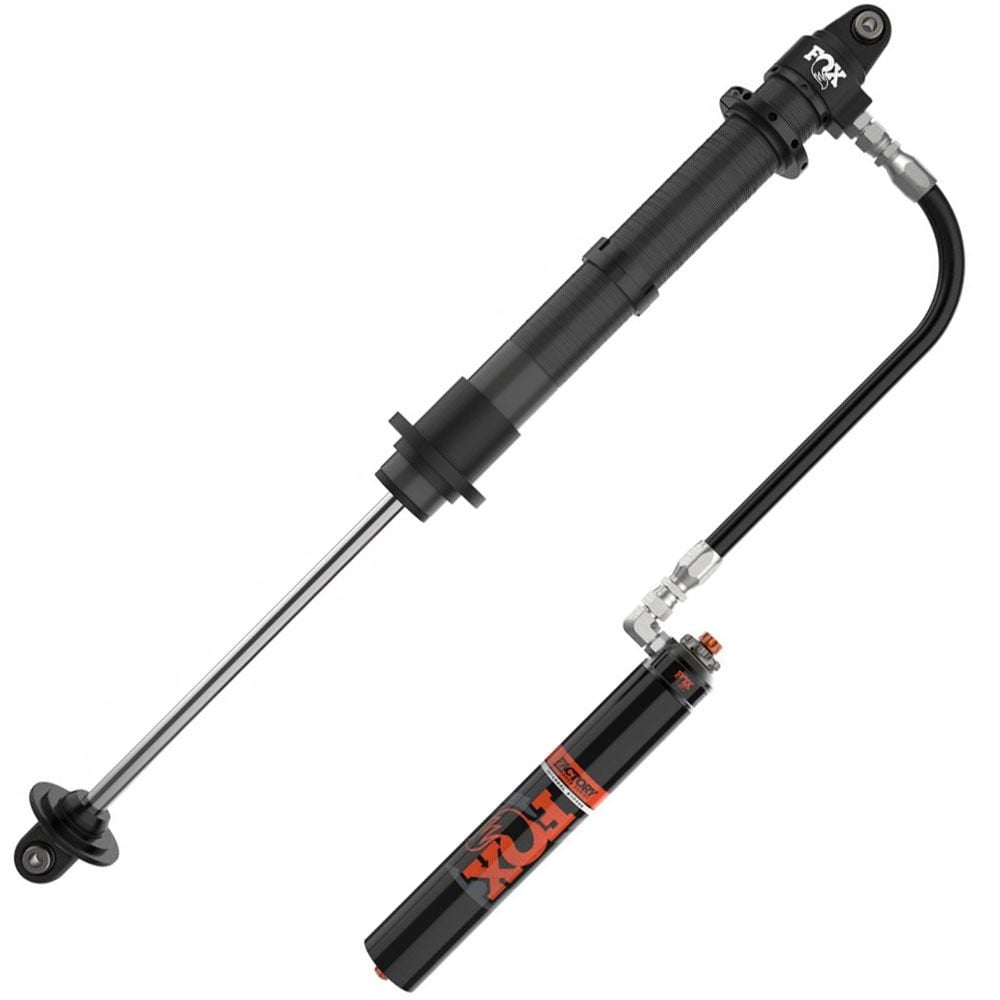

FOX FACTORY RACE 2.5 X 14 C/O INTERNAL BYPASS ROTATING REMOTE SHOCK - DSC ADJUSTER

Factory Race Series Coil-Over Internal Bypass shocks package our patented Internal Bypass technology in a coil-over architecture to provide position sensitive damping while simultaneously suspending the vehicle’s weight in a single shock, making them an ideal solution where fitment is a concern or class rules call for a single shock per corner.

Features:

• BODY: Smooth bore and honed seamless steel
• BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
• PISTON: 6061-T6 hard anodized billet aluminum 9-port high-flow piston
• FAV CAP: Orange anodized billet aluminum FAV cap
• COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
• SHAFT: 7/8" hard chrome plated 17-4 H900 stainless steel shafts
• VALVING: Tunable, velocity sensitive deburred valve shims
• SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
• OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
• HEIMS: PFTE-lined, heat-treated steel spherical bearings
• HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
• INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
• ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point | DSC (Dual Speed Compression)

Configuration:

• RESERVOIR: Rotating Remote
• ADJUSTER: DSC (Dual Speed Compression)
• EYELET LENGTH: 1.95"
• MOUNTING: 1/2" x 1-1/2"
• SPRING COMPATIBILITY: 3.00" ID
