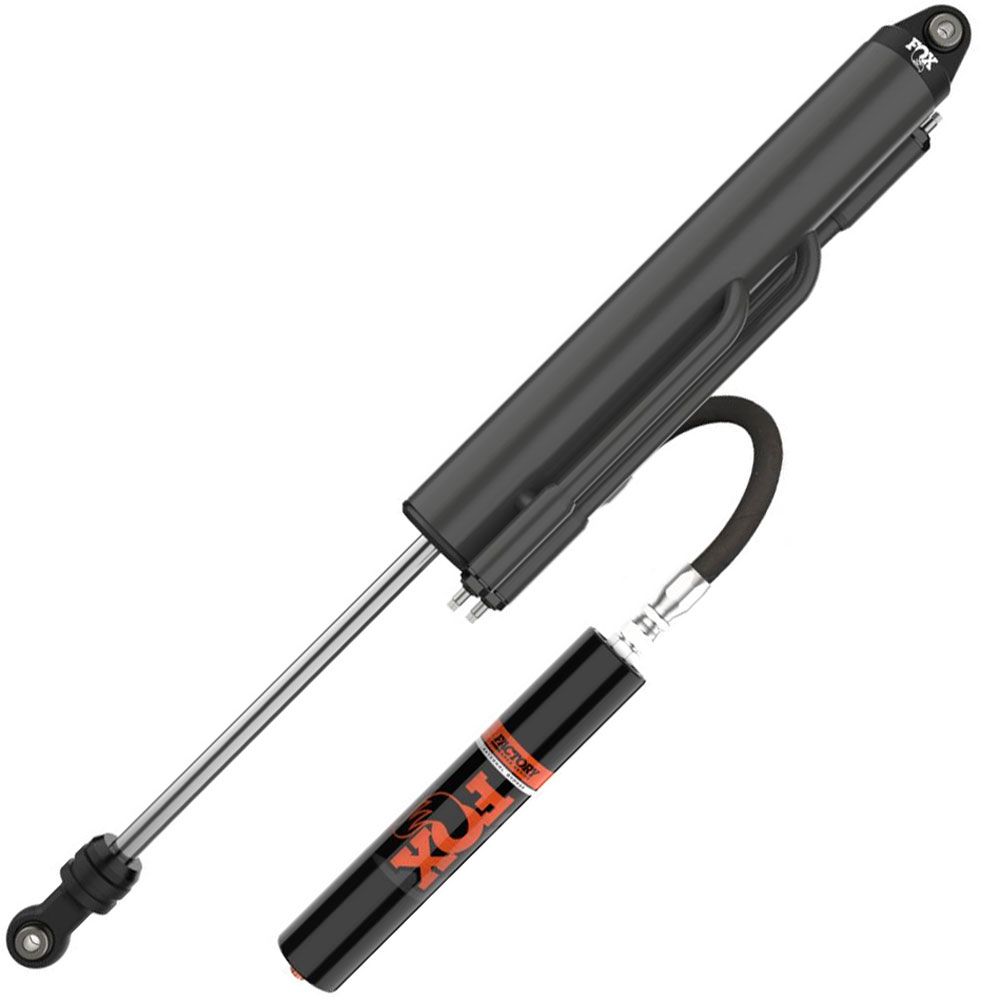

FOX FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (LEFT)
FOX FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (3 TUBE) REMOTE SHOCK (LEFT)
From $1,684.95
Only %1 left
SKU
FOX-981-30-409-L
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There’s no questioning whether they’re race proven, but in the words of Bob Fox, “we’re never done.” In that spirit, we’ve revitalized our tried-and-true externally adjustable position-sensitive damping architecture to deliver all-new standards of performance and durability, all while streamlining the production process.
Features:
- Body Finish:Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- Adjusters:Revised Gen 2 clicker adjuster for 3/4” bypass tubes with black anodized adjuster housings and color coded seals for compression, rebound, and gold valves.
- Reservoir Clamp:Black anodized billet aluminum reservoir clamp
- Bearing: Wire ring bearing design
- FAV Cap: Orange anodized billet aluminum FAV cap
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Reservoir: Remote
- Shaft Size: 7/8"
- Mounting: 1/2" x 1-1/2"
| Part # | Description | Extended | Collapsed | Travel | Reservoir Size | Reservoir Hose Length |
|---|---|---|---|---|---|---|
| FOX-981-30-406-L | Factory Race 3.0" X 10" External Bypass (3 Tube) Remote Res Shock (Left) | 29.46" | 19.55" | 9.91" | 2.55" x 10.00" | -10 x 28" |
| FOX-981-30-406-R | Factory Race 3.0" X 10" External Bypass (3 Tube) Remote Res Shock (Right) | 29.46" | 19.55" | 9.91" | 2.55" x 10.00" | -10 x 28" |
| FOX-981-30-407-L | Factory Race 3.0" X 12" External Bypass (3 Tube) Remote Res Shock (Left) | 33.46" | 21.55" | 11.91" | 2.55" x 10.00" | -10 x 28" |
| FOX-981-30-407-R | Factory Race 3.0" X 12" External Bypass (3 Tube) Remote Res Shock (Right) | 33.46" | 21.55" | 11.91" | 2.55" x 10.00" | -10 x 28" |
| FOX-981-30-408-L | Factory Race 3.0" X 14" External Bypass (3 Tube) Remote Res Shock (Left) | 38.46" | 24.55" | 13.91" | 2.55" x 14.00" | -10 x 38" |
| FOX-981-30-408-R | Factory Race 3.0" X 14" External Bypass (3 Tube) Remote Res Shock (Right) | 38.46" | 24.55" | 13.91" | 2.55" x 14.00" | -10 x 38" |
| FOX-981-30-409-L | Factory Race 3.0" X 16" External Bypass (3 Tube) Remote Res Shock (Left) | 42.46" | 26.55" | 15.91" | 2.55" x 14.00" | -10 x 38" |
| FOX-981-30-409-R | Factory Race 3.0" X 16" External Bypass (3 Tube) Remote Res Shock (Right) | 42.46" | 26.55" | 15.91" | 2.55" x 14.00" | -10 x 38" |
| FOX-981-30-410-L | Factory Race 3.0" X 18" External Bypass (3 Tube) Remote Res Shock (Left) | 46.46" | 28.55" | 17.91" | 2.55" x 14.00" | -10 x 38" |
| FOX-981-30-410-R | Factory Race 3.0" X 18" External Bypass (3 Tube) Remote Res Shock (Right) | 46.46" | 28.55" | 17.91" | 2.55" x 14.00" | -10 x 38" |
Note: Left and Right Shocks are mirrored from each other. See reference image.
