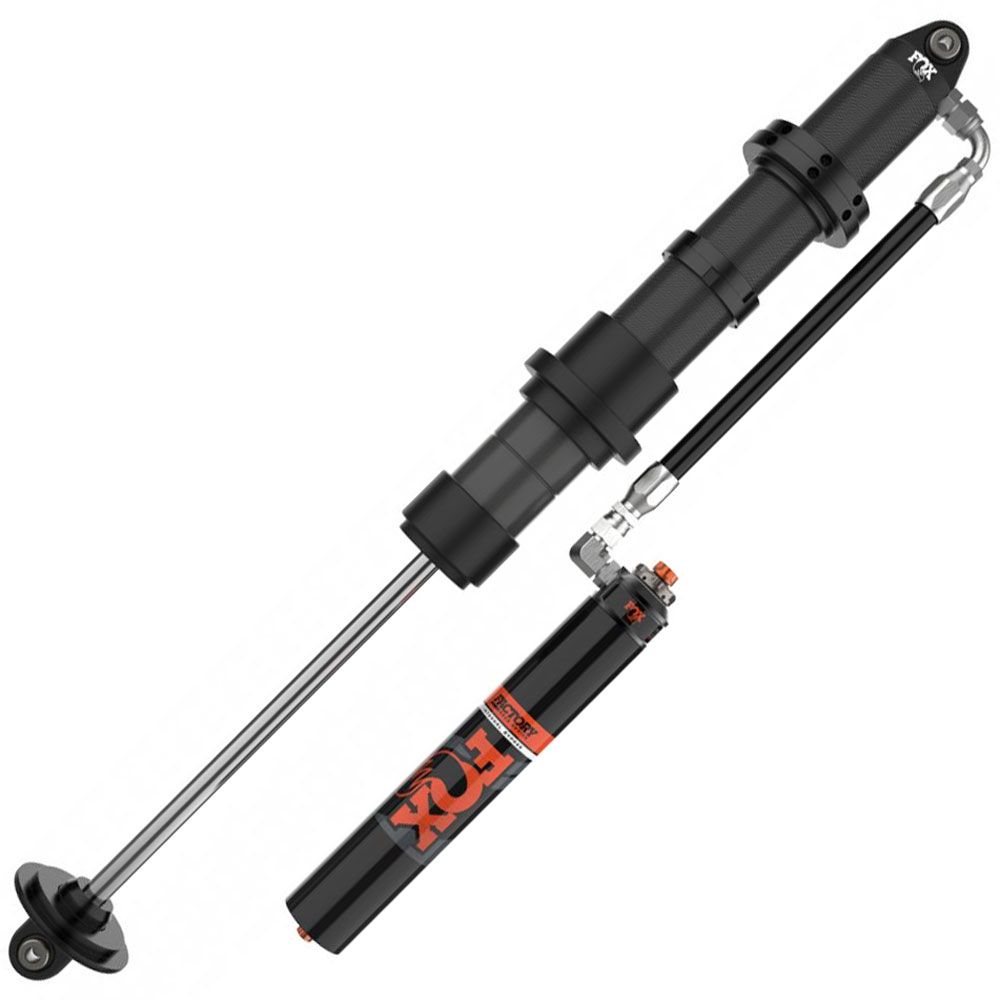

FOX FACTORY RACE 3.0 X 16 COIL-OVER INTERNAL BYPASS REMOTE SHOCK - DSC ADJUSTER

FOX FACTORY RACE 3.0 X 16 COIL-OVER INTERNAL BYPASS REMOTE SHOCK - DSC ADJUSTER
From $1,799.95
Only %1 left
SKU
FOX-981-30-604-3

Fire, LEO, EMS, Medical, and Military Discounts | Get Verified

Factory Race Series Coil-Over Internal Bypass shocks package our patented Internal Bypass technology in a coil-over architecture to provide position sensitive damping while simultaneously suspending the vehicle’s weight in a single shock, making them an ideal solution where fitment is a concern or class rules call for a single shock per corner.

Features:

  • BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
  • FAV CAP: Orange anodized billet aluminum FAV cap
  • COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
  • BODY: Smooth bore and honed seamless steel
  • SHAFT: 7/8" hard chrome plated 17-4 H900 stainless steel shafts
  • PISTON: 6061-T6 hard-anodized billet aluminum 9-port high-flow piston
  • VALVING: Tunable, velocity sensitive deburred valve shims
  • SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
  • OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
  • HEIMS: PFTE-lined, heat-treated steel spherical bearings
  • HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
  • INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
  • ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point | DSC - Dual Speed Compression

Configuration:

  • RESERVOIR: Remote
  • ADJUSTER: DSC (Dual Speed Compression)
  • EYELET LENGTH: 1.95"
  • MOUNTING: 1/2" x 1-1/2"
  • SPRING COMPATIBILITY: 3.75" ID
Part # Description Extended Collapsed Travel Reservoir Size
FOX-981-30-602-3 Factory Race 3.0" X 12" Coil-Over Internal Bypass Remote Shock w/ DSC Adjuster 32.5" 20.4" 12.1" 2.55" x 10.00"
FOX-981-30-603-3 Factory Race 3.0" X 14" Coil-Over Internal Bypass Remote Shock w/ DSC Adjuster 37.49" 23.4" 14.09" 2.55" x 14.00"
FOX-981-30-604-3 Factory Race 3.0" X 16" Coil-Over Internal Bypass Remote Shock w/ DSC Adjuster 41.49" 25.4" 16.09" 2.55" x 14.00"
