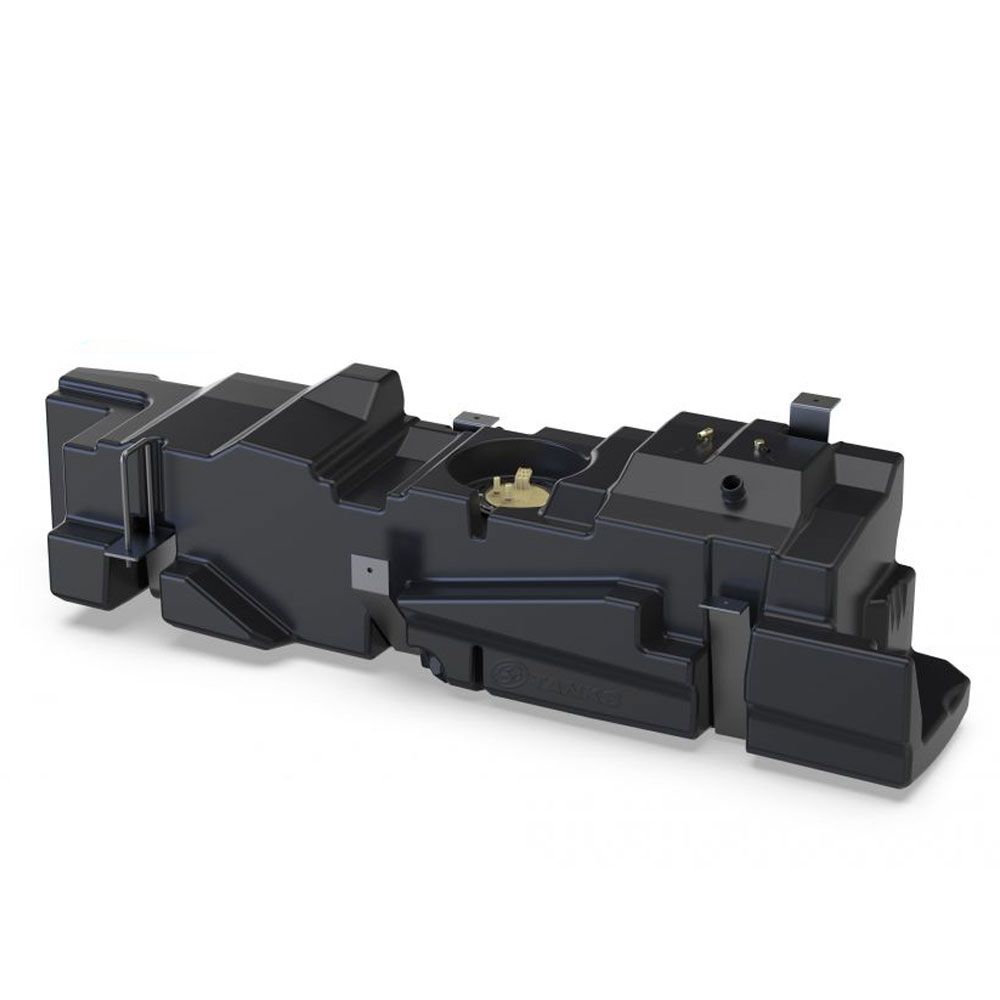

S&B 56 Gallon Replacement Fuel Tank for 2011-2016 Ford F-250/F-350 (Crew Cab / Short Bed)

• 2011-2016 Ford F-250/F-350 (6.7L Diesel) (Crew Cab / Short Bed)

• Tank Type: Midship
• S&B Capacity (Approximate): 56 Gal
• Weight (Dry): 50 Lbs
• Ground Clearance Compare to OE Tank: 2" Lower
• Sump: No
• Drain: Yes
• Sending Unit: OEM
• Straps Included: Yes
• Compatible With OE Skid Plate: No
• Compatible With Gooseneck and 5th Wheel: Yes
• Transfer Pump Ready: Yes
• Embedded Fitting Thread Size: 1/2" NPT
• Dimensions: 75.6" X 18.25" X 19.66"

Note: Fuel Tanks are NOT returnable. All fuel tank sales are final.

S&B's 56 gallon fuel tank replaces the OEM 26 gallon fuel tank and sits only 2.4" lower. The install can be done in 2-3 hours and does not require any cutting, drilling or modifications.

WARNING For Those Using Auxiliary Fuel Tanks
On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

SAVE TIME. GO FURTHER.
Being stuck with only a 26 gallon fuel tank isn't fair. You end up spending more time looking for fuel stations and paying high fuel prices. Install a S&B Fuel tank and get more out of your truck.
