Genesis Offroad G Screen for Gen 3 Dual Battery Systems

Keep an eye on the status of your dual battery system

• Monitors voltage levels of both batteries.
• Remote status indicator - shows if the batteries are connected or disconnected.
• Remote boost button - jump start the engine from inside the cab if your cranking battery is dead.

Background changes color to visually show your battery status at a glance

• Green - both batteries are fully charged, and they are connected together
• Yellow - the batteries are below 12.7v, and they are disconnected
• Red - at least 1 battery is below 12v. The screen will blink red a few times per minute to get your attention

Background light turns off after 45 seconds of inactivity

• Preserves battery power
• No glare while driving at night
• Voltage and status is still visible, but without the backlighting

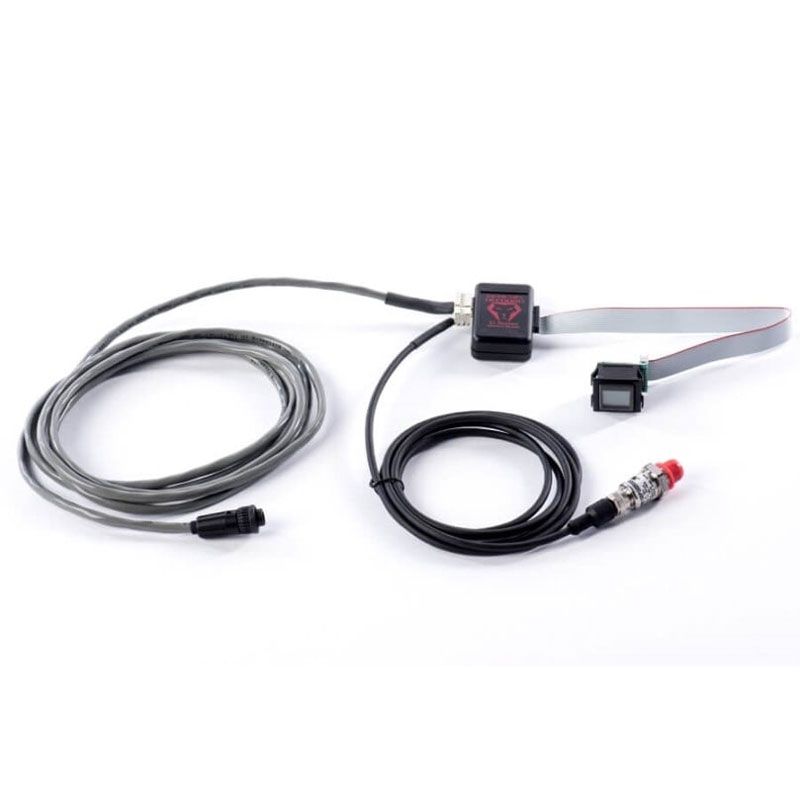

Kit Includes:

• G Screen
• Interface Module
• Ribbon Cable
• Wire Harness
• Panel Cutout Template

Screen measures approximately one cubic inch. Compact size makes it easy to mount anywhere.
Includes a 11 foot wiring harness for simple, clean installation
Software upgradeable for future features

Add the optional Genesis digital air pressure sensor to monitor the PSI level in your on-board air system. Screw the sensor into an available 1/4 inch NPT port on your air tank or manifold
Attach the waterproof cable to the sensor, and route the cable to the G Screen. Plug the other end into the interface module.
The G Screen automatically detects the sensor and adds a new screen showing the PSI level in your tank, from 0-150 PSI. No air hoses to run, no wiring to figure out!
