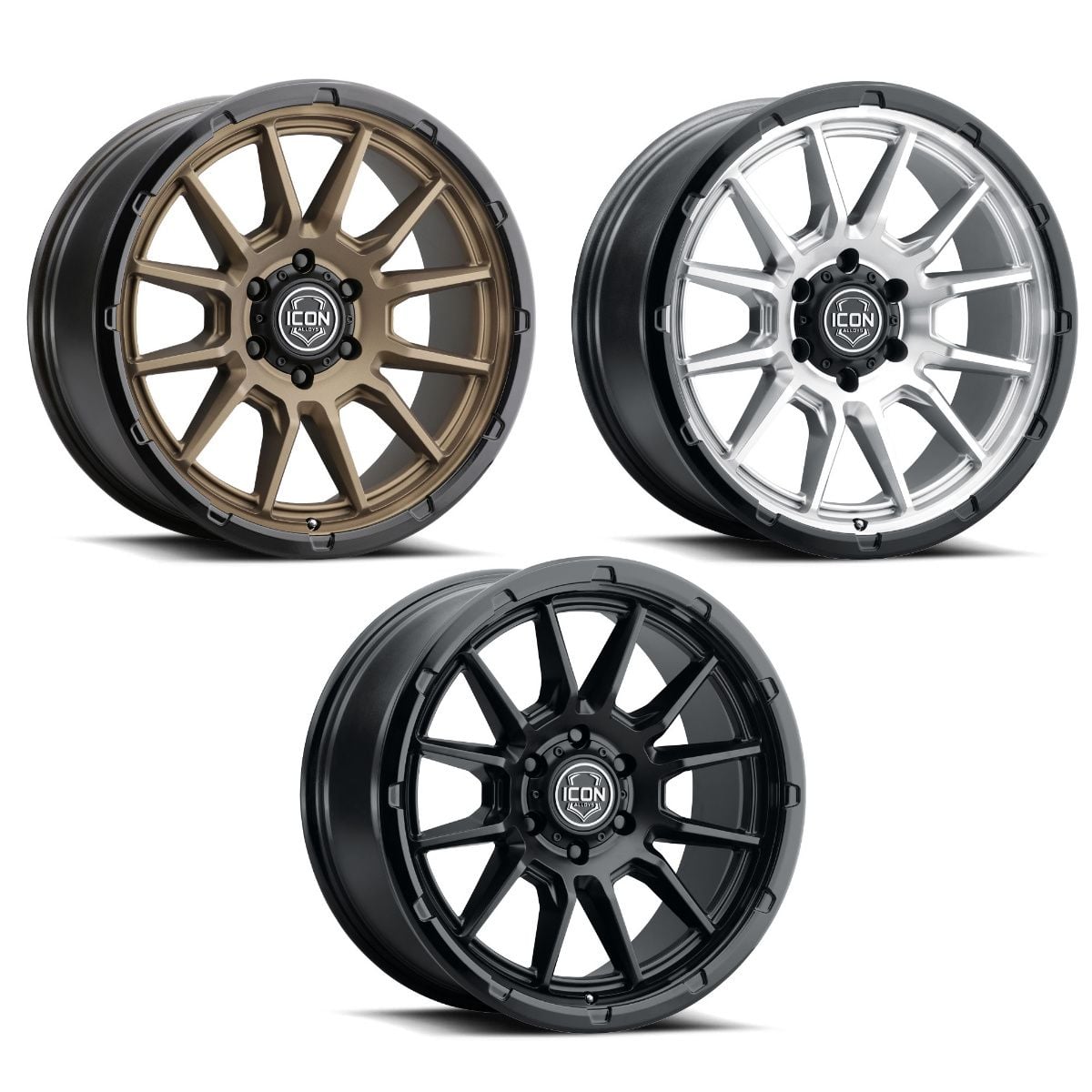

ICON Alloys Cajon 20" X 9" Wheels
Staying true to the ICON Alloys approach, the Cajon has been engineered to maximize caliper clearance and optimize wheel position for unhindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
Wheel Fitment Guide (How to: Measure Wheels & Identify Lug Patterns)
Wheel Fitment Guide (How to: Measure Wheels & Identify Lug Patterns)
Staying true to the ICON Alloys approach, the Cajon has been engineered to maximize caliper clearance and optimize wheel position for unhindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
Features:
- Choice of three attractive finishes: Silver Machined, Double Black or Satin Bronze, all with a powder coated gloss black wheel lip
- Heavy duty 4000lb load rating
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use
| Part # | Finish | Size | Bolt Pattern | Offset | Backspacing |
|---|---|---|---|---|---|
| IVD-8320908055SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 8 x 6.5" | +12mm | 5.5" |
| IVD-8320908055SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 8 x 6.5" | +12mm | 5.5" |
| IVD-8320908055DB | Double Black | 20" x 9" | 8 x 6.5" | +12mm | 5.5" |
| IVD-8320908152SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 8 x 170mm | +6mm | 5.25" |
| IVD-8320908152SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 8 x 170mm | +6mm | 5.25" |
| IVD-8320908152DB | Double Black | 20" x 9" | 8 x 170mm | +6mm | 5.25" |
| IVD-8320908955SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 8 x 180mm | +12mm | 5.5" |
| IVD-8320908955SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 8 x 180mm | +12mm | 5.5" |
| IVD-8320908955DB | Double Black | 20" x 9" | 8 x 180mm | +12mm | 5.5" |
| IVD-8320906356SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 6 x 135mm | +16mm | 5.625" |
| IVD-8320906356SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 6 x 135mm | +16mm | 5.625" |
| IVD-8320906356DB | Double Black | 20" x 9" | 6 x 135mm | +16mm | 5.625" |
| IVD-8320908350SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 6 x 5.5" | 0 | 5" |
| IVD-8320908350SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 6 x 5.5" | 0 | 5" |
| IVD-8320908350DB | Double Black | 20" x 9" | 6 x 5.5" | 0 | 5" |
| IVD-8320909056SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 6 x 5.5" | +16mm | 5.625" |
| IVD-8320909056SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 6 x 5.5" | +16mm | 5.625" |
| IVD-8320909056DB | Double Black | 20" x 9" | 6 x 5.5" | +16mm | 5.625" |
| IVD-8320905556SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 5 x 150mm | +16mm | 5.625" |
| IVD-8320905556SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 5 x 150mm | +16mm | 5.625" |
| IVD-8320905556DB | Double Black | 20" x 9" | 5 x 150mm | +16mm | 5.625" |
| IVD-8320907345SBGB | Bronze w/ Gloss Black Lip | 20" x 9" | 5 x 5" | -12mm | 4.5" |
| IVD-8320907345SMGB | Silver Machined w/ Gloss Black Lip | 20" x 9" | 5 x 5" | -12mm | 4.5" |
| IVD-8320907345DB | Double Black | 20" x 9" | 5 x 5" | -12mm | 4.5" |
