KC HiLiTES SlimLite LED Master Kit

For over 30 years, the KC SlimLite® has been a staple for off-roaders, combining legendary performance with an unmistakable design. Originally created in response to customer demand for a grille guard-style cover and slim housing, the SlimLite quickly became a fan favorite for a-pillar and bumper mounting on Jeeps, trucks, and SUVs.

Now, the next-generation SlimLite takes this legacy further with increased brightness, improved LED technology, and an upgraded housing with MoistureBlock® Technology for extreme durability. A new dual-power mode allows seamless switching between full power for maximum visibility and a dimmed mode (20% output) for on-road use and group trail rides.

Notes:

• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the 2-Light Master Kit version.

Release Notes - 2nd Generation SlimLite® 6” (SL6 v2) Effective Date: July 2025

• Connector Upgrade: Switched from 2-pin DT to 3-pin  MoistureBlock® panel mount connector for improved water resistance and dual-mode functionality.
• Dual Power Modes: Now featuring a 100% full power mode and a 20% dimmed mode for on-road use or group rides.
• Improved LED Performance: Now 1.8x brighter with upgraded LED technology for greater beam distance and intensity.
• Updated Wiring Kit: Includes a 3-position switch for full power, dim mode, and off functionality.
• Sold as Singles or Master Packs: Now available individually or as complete master kits with SAE driving shields and black protective covers.

KCH-0106 (Pair)

Specifications:

• Weight: 9.220000
• Compliance DOT/SAE/ECE: ECE R112 (Driving)
• Wattage Per Light: 76.44 W (High) / 15.29 W (Low)
• Total Wattage: 152.88 W (High) / 30.58 W (Low)
• Amp Draw Per Light: 6.37 A (High) / 1.27 A (Low)
• Total Amp Draw: 12.74 A (High) / 2.55 A (Low)
• Voltage: 9V-36V
• Lumens Per Light: 7,100 lm (High) / 1,420 lm (Low)
• Total Lumens: 14,200 lm (High) / 2,840 lm (Low)
• Lux Per Light: 5,495 lx( High) / 1,099 lx (Low)
• Total Lux: 10,990 lx( High) / 2,198 lx (Low)
• Candela Per Light: 549,500 cd (High) / 109,900 cd (Low)
• Total Candela: 1,099,000 cd (High) / 219,800 cd (Low)
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Spot
• Beam Distance: 1,048 m (High) / 469 m (Low)
• Light Technology: LED
• Package Options: Includes Covers, Includes Multiple Lenses, Includes Wiring
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 6"
• Material: Aluminum Alloy
• Product Finish: Black

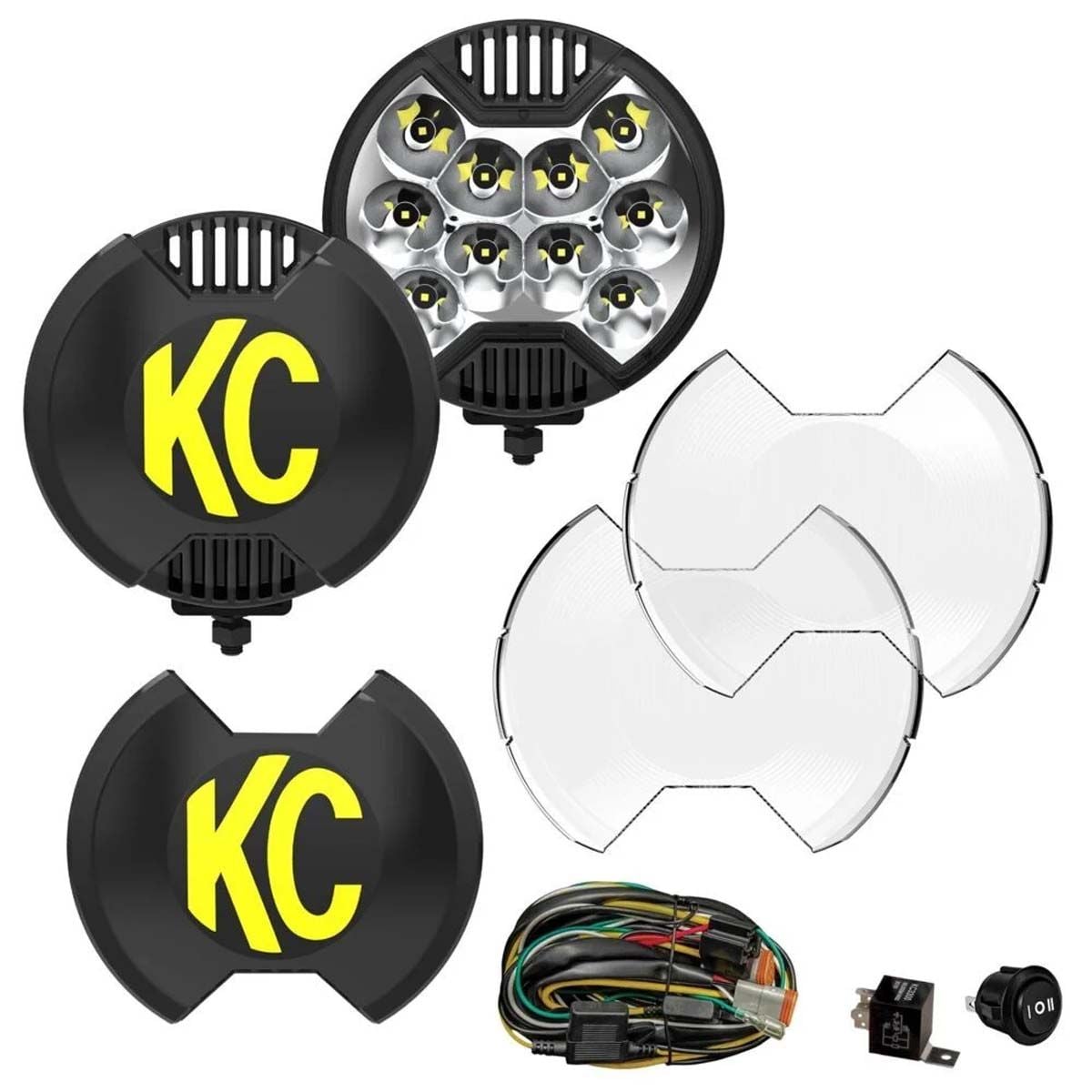

• Included Components: 2 x SlimLite® LED Offroad Lights, 1 x Complete Wiring Kit with 3-Position Switch, 2 x KC Light Covers, 2 x Shields - SAE Driving Beam, Mounting Hardware
• Color: Black
• Product Dimensions: W: 6.22 " x H: 6.79 " x D: 2.88 "
• Tag Line: SLIM PROFILE MAX OUTPUT
• UPC: 084709001063
• IP Rating: IP67

KCH-1106 (Single)

• Weight: 3.520000
• Compliance DOT/SAE/ECE: ECE R112 (Driving)
• Wattage Per Light: 76.44 W (High) / 15.29 W (Low)
• Total Wattage: 76.44 W (High) / 15.29 W (Low)
• Amp Draw Per Light: 6.37 A (High) / 1.27 A (Low)
• Total Amp Draw: 6.37 A (High) / 1.27 A (Low)
• Voltage: 9V-36V
• Lumens Per Light: 7,100 lm (High) / 1,420 lm (Low)
• Total Lumens: 7,100 lm (High) / 1,420 lm (Low)
• Lux Per Light: 5,495 lx( High) / 1,099 lx (Low)
• Total Lux: 5,495 lx( High) / 1,099 lx (Low)
• Candela Per Light: 549,500 cd (High) / 109,900 cd (Low)
• Total Candela: 549,500 cd (High) / 109,900 cd (Low)
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Spot
• Beam Distance: 741 m (High) / 332 m (Low)
• Light Technology: LED
• Package Options: Includes Covers, Includes Multiple Lenses
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 6"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 1 x SlimLite® LED Offroad Light, 1 x KC Light Cover, 1 x Shield - SAE Driving Beam
• Color: Black
• Product Dimensions: W: 6.22 " x H: 6.79 " x D: 2.88 "
• Tag Line: SLIM PROFILE MAX OUTPUT
• UPC: 084709011062
• IP Rating: IP67

KCH-0108 (Pair)

• Weight: 15.200000
• Compliance DOT/SAE/ECE: SAE J581 (Driving)
• Wattage Per Light: 138.36 W (High) / 27.67 W (Low)
• Total Wattage: 276.72 W (High) / 55.34 W (Low)
• Amp Draw Per Light: 11.53 a (High) / 2.31 a (Low)
• Total Amp Draw: 23.06 a (High) / 4.61 a (Low)
• Voltage: 10.5V-36V
• Lumens Per Light: 13,302 lm (High) / 2,660 lm (Low)
• Total Lumens: 26,604 lm (High) / 5,321 lm (Low)
• Lux Per Light: 11,035 lx (High) / 2,207 lx (Low)
• Total Lux: 22,071 lx (High) / 4,414 lx (Low)
• Candela Per Light: 1,103,547 cd (High) / 220,709 cd (Low)
• Total Candela: 1,103,547 cd (High) / 441,419 cd (Low)
• Light Temp: 5700 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Spot
• Beam Distance: 1050 m (High) / 470 m (Low)
• Light Technology: LED
• Package Options: Includes Multiple Lenses, Includes Wiring
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 8"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 2 x SlimLite® 8 LED Offroad Light, 2 x KC Light Cover, 2 x SlimLite® 8 SAE Driving Beam Shield, 1 x Wiring Kit with 3-Position Switch
• Color: Black
• Product Dimensions: W: 8 " x H: 8.46 " x D: 3.67 "
• UPC: 084709001087
• IP Rating: IP67

KCH-1118 (Single)

• Weight: 6.000000
• Compliance DOT/SAE/ECE: ECE R112 (Driving)
• Wattage Per Light: 138.36 W (High) / 27.67 W (Low)
• Total Wattage: 138.36 W (High) / 27.67 W (Low)
• Amp Draw Per Light: 11.53 A (High) / 2.31 A (Low)
• Total Amp Draw: 11.53 A (High) / 2.31 A (Low)
• Voltage: 10.5V-36V
• Lumens Per Light: 13,302 lm (High) / 2,660 lm (Low)
• Total Lumens: 13,302 lm (High) / 2,660 lm (Low)
• Lux Per Light: 11,035 lx (High) / 2,207 lx (Low)
• Total Lux: 11,035 lx (High) / 2,207 lx (Low)
• Candela Per Light: 1,103,547 cd (High) / 220,709 cd (Low)
• Total Candela: 1,103,547 cd (High) / 220,709 cd (Low)
• Light Temp: 5700 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Spot
• Beam Distance: 1050 m (High) / 470 m (Low)
• Light Technology: LED
• Package Options: Includes Covers, Includes Multiple Lenses
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 8"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 1 x SlimLite® 8 LED Offroad Light, 1 x KC Light Cover, 1 x SlimLite® 8 SAE Driving Beam Shield
• Color: Black
• Product Dimensions: W: 8 " x H: 8.46 " x D: 3.67 "
• UPC: 084709011185
• IP Rating: IP67
