KC HiLiTES Headlight; Gravity LED 7" DOT for 2007-2018 Jeep JK / 1996-2006 Jeep TJ / Universal H4

Part #	Description
KCH-4235	KC HiLiTES Headlight; Gravity LED 7" DOT 2007-2018 Jeep JK (ea)
KCH-42351	KC HiLiTES Headlight; Gravity LED 7" DOT 2007-2018 Jeep JK (pr)
KCH-4236	KC HiLiTES Headlight; Gravity LED 7" DOT 1996-2006 TJ / Universal H4 (ea)
KCH-42361	KC HiLiTES Headlight; Gravity LED 7" DOT 1996-2006 TJ / Universal H4 (pr)



KCH-4235

KC HiLiTES Gravity LED 7" Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.

Features:

• 40W Gravity® LED 7" Headlight
• Hard Coated Polycarbonate Lens
• Full Plug-n-Play for 07-18 Jeep JK Wrangler
• Precision Die-Cast Aluminum Housing
• KC Engineered Polished Reflector Optics
• DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 07-
• 18 Jeep JK with DRL equipped and enabled)

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Compliance: SAE J851 & ECE-R112
• Lux @ 10 Meters: Low- 415 lx, High- 775 lx
• Candela: Low- 41,500 cd, High- 77,500 cd
• Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 18W, High- 22W
• LED Bulb: CREE XHP35 HI and Nichia
• Color Temperature: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 3.72"

PARTS INCLUDED

• Plug and Play H13 Connector for Jeep JK

Notes:

• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.

DESIGNED FOR DURABILITY
Surrounding KC HiLiTES Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specifications:

• Weight: 3.000000
• Product Dimensions: W: 6.96" x H: " x D: 3.72"
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 557 m
• Beam Pattern: Driving What's this?
• Included Components: Gravity® LED 7" DOT Jeep JK 2007-2018 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 41,500, High- 77,500 cd
• Total Candela: Low- 41,500, High- 77,500 cd
• Wattage Per Light: Low- 18W, High- 22W
• Total Wattage: Low- 18W, High- 22W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Total Amp Draw: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Voltage: 9V-18V
• Lumens Per Light: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Total Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Lux Per Light: Low- 415 lx, High- 775 lx
• Total Lux: Low- 415 lx, High- 775 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709042356

---

KCH-42351

KC HiLiTES Gravity LED 7" Jeep JK Headlight replacement features CREE LEDs for DOT low/high beams on 07-18 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance.

Features:

• 2 x 40W Gravity® LED 7" Headlights
• Hard Coated Polycarbonate Lens
• Full Plug-n-Play for 07-18 Jeep JK Wrangler
• Precision Die-Cast Aluminum Housing
• KC Engineered Polished Reflector Optics
• DOT Compliant Low Beam and High Beam with On-board Day Running Lamp Support (Transport Canada
• (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Compliance: DOT-Compliant
• Lux @ 10 Meters: Low- 415 lx, High- 775 lx
• Candela: Low- 41,500 cd, High- 77,500 cd
• Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 18W, High- 22W
• LED Bulb: CREE XHP35 HI and Nichia
• Color Temperature: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 3.72"

PARTS INCLUDED

• (2) Gravity® LED 7" Headlights
• Plug and Play H13 Connectors for Jeep JK

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights.

DESIGNED FOR DURABILITY
Surrounding KC HiLiTES Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specifications:

• Weight: 6.000000
• Product Dimensions: W: 6.96" x H: " x D: 3.72"
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 557 m
• Beam Pattern: Driving What's this?
• Included Components: 2 x Gravity® LED 7" DOT Jeep JK 2007-2018 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 41,500, High- 77,500 cd
• Total Candela: Low- 41,500, High- 77,500 cd
• Wattage Per Light: Low- 18W, High- 22W
• Total Wattage: Low- 36W, High- 44W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Total Amp Draw: 0.2 a DRL /3.0 a LOW / 3.6 a HIGH
• Voltage: 9V-18V
• Lumens Per Light: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Total Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Lux Per Light: Low- 415 lx, High- 775 lx
• Total Lux: Low- 415 lx, High- 775 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709423513

---

KCH-4236

KC HiLiTES Gravity LED 7" Jeep DOT Headlight features bright CREE LEDs for DOT compliant Low/High beam for 97-06 Jeep TJs. Diecast aluminum housing and polycarbonate lens for optimal performance.

Features:

• 40W Gravity® LED 7" Headlight
• Hard Coated Polycarbonate Lens
• Full Plug-n-Play for 97-06 Jeep TJ Wrangler
• Precision Die-Cast Aluminum Housing
• KC Engineered Polished Reflector Optics
• DOT Compliant Low Beam, High Beam and Day Running Light (Transport Canada (TC) Compliant for 97-
• 06 Jeep TJ with DRL equipped and enabled)

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Compliance: SAE J851 & ECE-R112
• Lux @ 10 Meters: Low- 415 lx, High- 775 lx
• Candela: Low- 41,500 cd, High- 77,500 cd
• Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 18W, High- 22W
• LED Bulb: CREE XHP35 HI and Nichia
• Color Temperature: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 3.72"

PARTS INCLUDED

• Plug and Play Connector, Jeep TJ/Universal- H4

Notes:

• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights. Not to mention KC HiLiTES lights work with other 7" round headlight openings on various vehicles, with simple H4 connectors.

DESIGNED FOR DURABILITY
Surrounding KC HiLiTES Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specifications:

• Weight: 3.000000
• Product Dimensions: W: 6.96" x H: " x D: 3.72"
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 557 m
• Beam Pattern: Driving What's this?
• Included Components: Gravity® LED 7" DOT Jeep TJ 97-06/Universal H4 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 41,50d, High- 77,500cd
• Total Candela: Low- 41,50d, High- 77,500cd
• Wattage Per Light: Low- 18W, High- 22W
• Total Wattage: Low- 18W, High- 22W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Total Amp Draw: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Voltage: 9V-18V
• Lumens Per Light: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Total Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Lux Per Light: Low- 415 lx, High- 775 lx
• Total Lux: Low- 415 lx, High- 775 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709042363

---

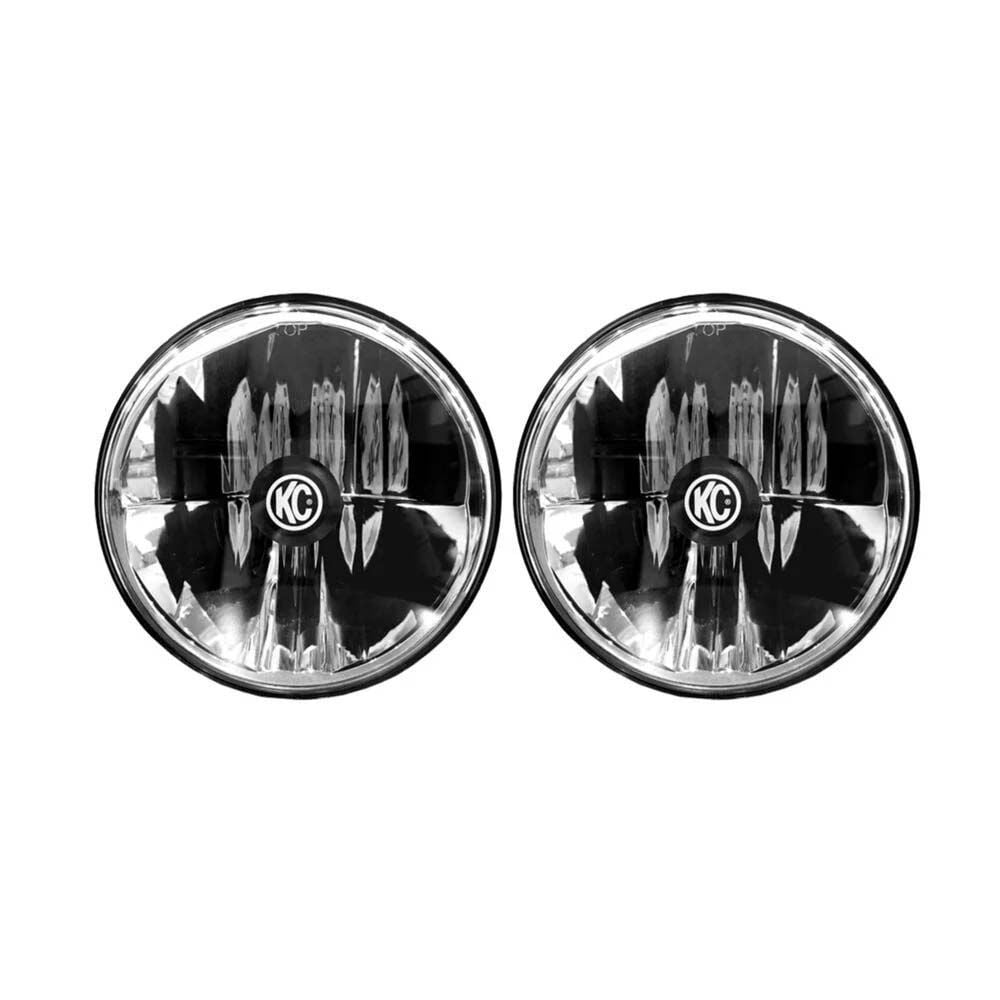

KCH-42361

KC HiLiTES Gravity LED 7" Jeep DOT Headlight features CREE LEDs for DOT compliant Low/High beam for 97-06 Jeep TJs. Diecast aluminum housing and polycarbonate lens for optimal performance. Pair includes H4 connectors, harness, and switch.

Features:

• 2 x 40W Gravity® LED 7" Headlights
• Hard Coated Polycarbonate Lens
• Full Plug-n-Play for 97-06 Jeep TJ Wrangler/7" Universal H4
• Precision Die-Cast Aluminum Housing
• KC Engineered Polished Reflector Optics
• DOT Compliant Low Beam, High Beam and Day Running Lamp (Transport Canada (TC) Compliant for 97-
• 06 Jeep TJ with DRL equipped and enabled)

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Compliance: SAE J851 & ECE-R112
• Lux @ 10 Meters: Low- 415 lx, High- 775 lx
• Candela: Low- 41,500 cd, High- 77,500 cd
• Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 18W, High- 22W
• LED Bulb: CREE XHP35 HI and Nichia
• Color Temperature: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 3.72"

Parts Included in Pair Pack

• (2) Gravity® LED 7" Headlights
• Capacitor Harness
• Plug and Play Connectors, Jeep TJ/7" Universal H4
• 30 Amp LED Switch w/ Panel
• Mounting Hardware

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN
KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality. Greatly improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights, as well retrofit 7" round headlight openings on classic domestic, European and JDM vehicles.

DESIGNED FOR DURABILITY
Surrounding KC HiLiTES Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specifications:

• Weight: 6.000000
• Product Dimensions: W: 6.96" x H: " x D: 3.72"
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 557 m
• Beam Pattern: Driving What's this?
• Included Components: 2 x Gravity® LED 7" DOT Jeep TJ 97-06/Universal H4 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 41,500, High- 77,500 cd
• Total Candela: Low- 41,500, High- 77,500 cd
• Wattage Per Light: Low- 18W, High- 22W
• Total Wattage: Low- 36W, High- 44W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 1.8 a HIGH
• Total Amp Draw: 0.2 a DRL /3.0 a LOW / 3.6 a HIGH
• Voltage: 9V-18V
• Lumens Per Light: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Total Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Lux Per Light: Low- 415 lx, High- 775 lx
• Total Lux: Low- 415 lx, High- 775 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709423612
