KC HiLiTES Headlight; Gravity LED Pro 7" DOT for 2007-2018 Jeep JK / 2018+ Jeep JL / JT

Part #	Description
KCH-4234	KC HiLiTES Headlight; Gravity LED Pro 7" DOT Jeep JK 07-18 (ea)
KCH-42341	KC HiLiTES Headlight; Gravity LED Pro 7" DOT Jeep JK 07-18 (pr)
KCH-42342	KC HiLiTES Headlight Gravity LED Pro 7" DOT 2018-2024 Jeep JL / 2020-2024 Jeep JT (pr)

KCH-4234

KC's Gravity LED Pro 7" Headlight is a DOT compliant Jeep Wrangler JK replacement

Features:

• 40W Patented Gravity Projector Optics (GPO)
• DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for
• 07-18 Jeep JK with DRL equipped and enabled)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights

Notes:

• Does not fit 17-18 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights.
• Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"
• Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

LIGHT PERFORMANCE

• Raw Lumens: Low- 2,967 lm, High-  2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (Basic)

• Wattage: Low- 20W, High- 30W, DRL- 1.35W
• LED Bulb: CREE: XP HI/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 5.098"

GRAVITY LED EXTREME OUTPUT AND EFFICIENCY
The Gravity LED Pro 7" headlight uses KC's newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.

HIGH-PERFORMANCE LED OPTICS
The Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.

HIGH/LOW/DRL FUNCTIONS
High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.

DESIGNED FOR DURABILITY
Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.

Specifications:

• Weight: 3.000000
• Product Dimensions: W: 6.96" x H: " x D: 5.098"
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 529 m
• Beam Pattern: Driving What's this?
• Included Components: Gravity® LED Pro 7" DOT Jeep JK 07-18 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 40,000, High- 70,000 cd
• Total Candela: Low- 40,000, High- 70,000 cd
• Wattage Per Light: Low- 20W, High- 30W, DRL- 1.35W
• Total Wattage: Low- 20W, High- 30W, DRL- 1.35W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 2.1a HIGH
• Total Amp Draw: 0.1 a DRL /1.5 a LOW / 2.1a HIGH
• Voltage: 9V-18V
• Lumens Per Light: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Total Lumens: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Lux Per Light: Low- 400 lx, High- 700 lx
• Total Lux: Low- 400 lx, High- 700 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709042349

---

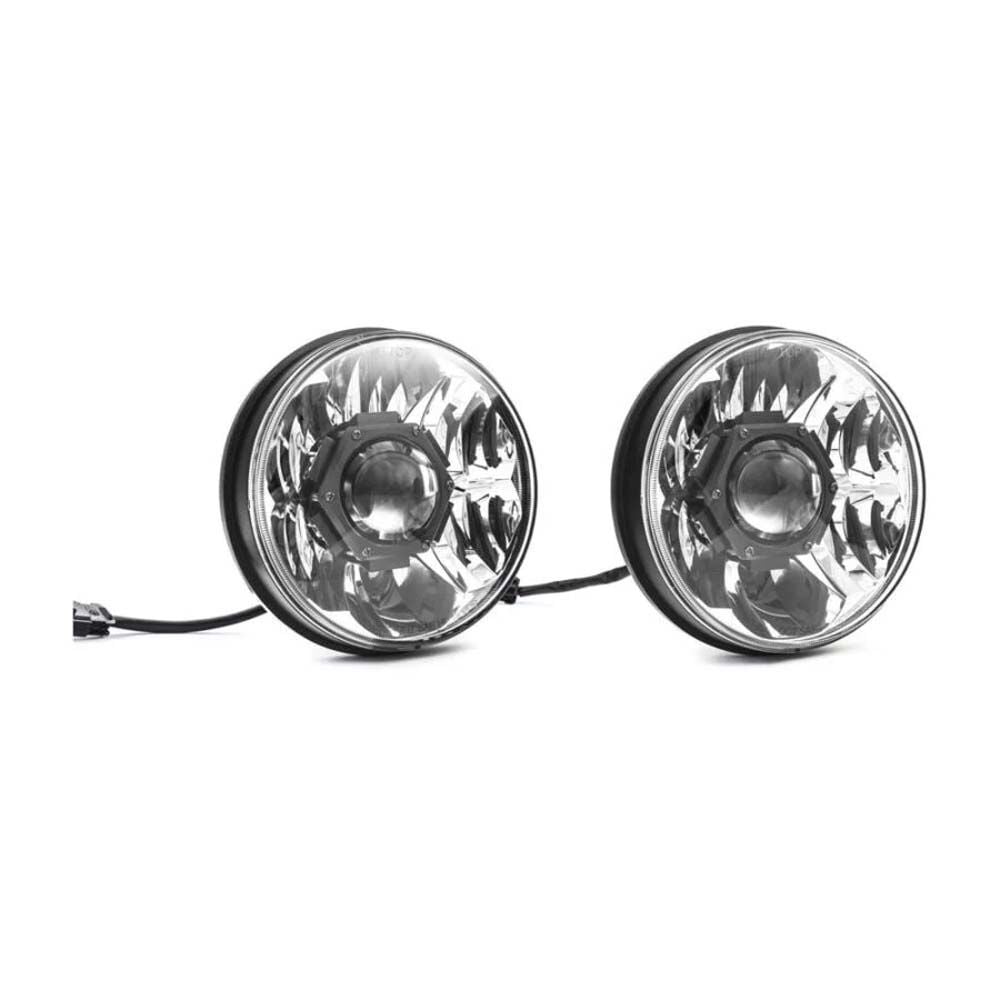

KCH-42341

KC's Gravity LED Pro 7" Jeep Wrangler JK Headlights feature bright CREE LEDs for DOT low/high beams on 07-18 JKs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors.

Features:

• 40W Gravity® LED Pro 7" Headlights
• Patented Gravity® Projector Optics(GPO)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• DOT Compliant Low and High Beam with built-in Daytime Running Light (Transport Canada (TC)
• Compliant or 07-18 Jeep JK with DRL equipped and enabled)
• KC Engineered Polished Reflector Optics
• Plug-n-Play for Jeep Wrangler JK

Notes:

• Does not fit Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights
• Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 20W, High- 30W, DRL- 1.35W
• LED Bulb: CREE: XPL/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 5.098"

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.

HIGH-PERFORMANCE REFLECTOR OPTICS
The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs into usable light output.

HIGH/LOW/DRL FUNCTION
High/Low beams as well as DRL functionality come installed in this KC projector headlight to greatly improve visibility and clarity over factory Jeep headlights.

DESIGNED FOR DURABILITY
The Gravity® LED Pro 7" Headlight uses a durable die-cast housing and Polycarbonate lens, to tolerate the harshest climates and conditions.

Specifications:

• Weight: 6.000000
• Light Technology: LED
• Mount Location: Headlight
• Beam Distance: 529 m
• Beam Pattern: Driving What's this?
• Included Components: 2 x Gravity® LED Pro 7" DOT Jeep JK 07-18 Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 40,000, High- 70,000 cd
• Total Candela: Low- 40,000, High- 70,000 cd
• Wattage Per Light: Low- 20W, High- 30W, DRL- 1.35W
• Total Wattage: Low- 40W, High- 60W, DRL- 2.70W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 2.1a HIGH
• Total Amp Draw: 0.2 a DRL /3.0 a LOW / 4.2a HIGH
• Voltage: 9V-18V
• Lumens Per Light: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Total Lumens: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Lux Per Light: Low- 400 lx, High- 700 lx
• Total Lux: Low- 400 lx, High- 700 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709423414

---

KCH-42342

KC's Gravity® LED Pro 7" Jeep Wrangler JL & Gladiator JT Headlights feature bright CREE LEDs for DOT low/high beams on 18-24 JLs and JTs. Diecast aluminum housing and polycarbonate lens for optimal performance. These are a great upgrade over your factory halogen headlights. Includes all brackets, wire adapters, and hardware necessary for an easy install.

Features:

• 2 x 40W Gravity® LED Pro 7" Headlights
• Bracket mounts into factory headlight location
• Patented Gravity® Projector Optics(GPO)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• DOT Compliant Low and High Beam (DOES NOT MEET Transport Canada (TC) Compliance for 07-18 Jeep JK)
• KC Engineered Polished Reflector Optics

Notes:

• Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 2,967 lm, High- 2,575 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low- 18W, High- 25W
• LED Bulb: CREE: XPL/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 5.098"

GRAVITY® EXTREME OUTPUT AND EFFICIENCY
The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.

HIGH-PERFORMANCE REFLECTOR OPTICS
The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs into usable light output.

HIGH/LOW
High/Low beams come installed in this KC projector headlight to greatly improve visibility and clarity over factory Jeep halogen headlights.

DESIGNED FOR DURABILITY
The Gravity® LED Pro 7" Headlight uses a durable die-cast housing and Polycarbonate lens, to tolerate the harshest climates and conditions.

Specifications:

• Weight: 8.000000
• Light Technology: Halogen
• Mount Location: Headlight
• Beam Distance: 529 m
• Beam Pattern: Driving What's this?
• Included Components: 2 x Gravity® LED Pro 7" DOT Jeep JL/JT Headlight
• LED Color: White
• Lens Color: Clear
• Light Temp: 5000 K
• Candela Per Light: Low- 40,000, High- 70,000 cd
• Total Candela: Low- 40,000, High- 70,000 cd
• Wattage Per Light: Low- 20W, High- 30W, DRL- 1.35W
• Total Wattage: Low- 40W, High- 60W, DRL- 2.70W
• Amp Draw Per Light: 0.1 a DRL /1.5 a LOW / 2.1a HIGH
• Total Amp Draw: 0.2 a DRL /3.0 a LOW / 4.2a HIGH
• Voltage: 9V-18V
• Lumens Per Light: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Total Lumens: High Beam- 2,575 lm, Low Beam- 2,967 lm, DRL- 386 lm
• Lux Per Light: Low- 400 lx, High- 700 lx
• Total Lux: Low- 400 lx, High- 700 lx
• Product Finish: Black
• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
• Material: Aluminum Alloy
• Size of Products: 7"
• UPC: 084709423421
