KC HiLiTES Gravity Pro6 LED Light Bars

BORN FROM RACE, READY FOR ADVENTURE

Inspired by and designed for off-road racing KC combines our time-tested optical reflector engineering, the latest LED technology, and unique signature aesthetics in the Gravity Pro6 LED Light Bar. We set a new standard and break all performance barriers by providing this durable, robust, and scalable LED light bar system.

PATENTED GRAVITY® REFLECTIVE DIODE TECHNOLOGY

Each Gravity® LED Pro6 light is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique industry-leading technology and reflector design assure that actual emitted light output from each LED is being maximized in creating powerful, usable light for everyday off-road use. Unlike traditional forward facing reflector designs commonly found in LED lights today, KC GRD technology strategically positions LEDs inside the reflector so that all light output is being carefully directed and aimed to deliver usable light. What you get is highly targeted light distribution, providing unparalleled clarity, performance, and beam shape.

PATENTED INFINITY RING™ SYSTEM

As an industry first, the Pro6 allows you to take full control of your specific lighting needs. Pro6 LED light bars feature a patented Infinity Ring™ system utilizing individual rings to securely link individual 6" Pro6 LED lights together to form a rigid, powerful LED light bar system. The unique hinge and bolt design in every ring allow for endless modularity, expandability, and adjustability to suit your lighting needs. This means the seamless transition between straight, radius, or hybrid radius light bar orientations to angle lights exactly how you see fit.

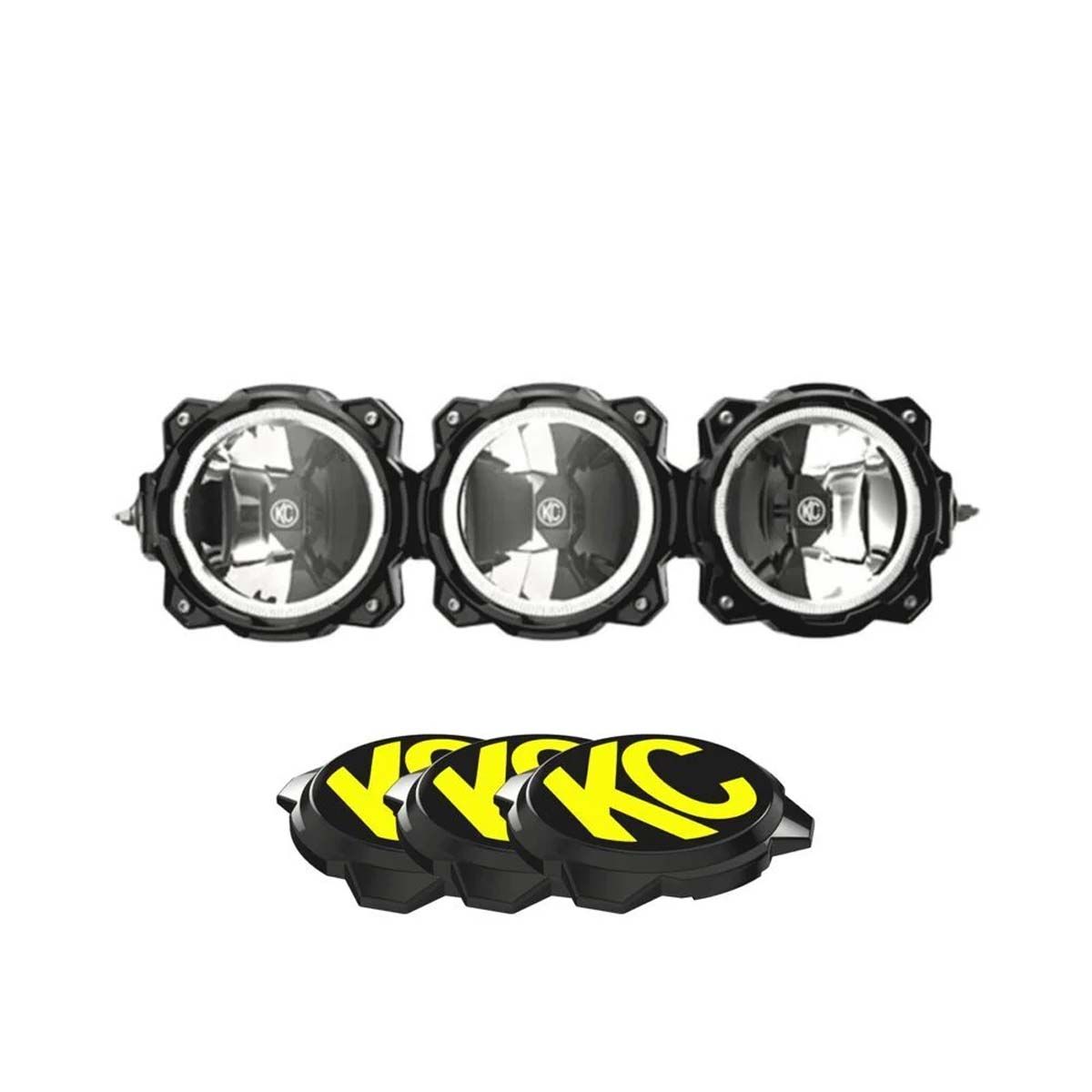

KCH-91318

• Weight: 15.000000
• Wattage Per Light: 21.36W
• Total Wattage: 64.08W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 5.34 a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 7,524lm
• Lux Per Light: 1,443lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 1,486lx
• Candela Per Light: 144,250cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 148,557cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 385m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 20"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 20" 3-Light Gravity® LED Pro6 Light Bar, 3 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 20.325 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913182
• IP Rating: IP68

KCH-91319

• Weight: 16.000000
• Wattage Per Light: 21.36W
• Total Wattage: 85.44W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 7.12a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 10,032lm
• Lux Per Light: 2,886lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 2,353lx
• Candela Per Light: 288,500cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 235,332cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 485m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 26"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 26" 4-Light Gravity® LED Pro6 Light Bar, 4 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 26.575 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913199
• IP Rating: IP68

KCH-91306

• Weight: 22.400000
• Wattage Per Light: 21.36W
• Total Wattage: 106.80W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 8.90a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 12,540lm
• Lux Per Light: 4,329lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 3,221lx
• Candela Per Light: 432,750cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 322,107cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 568m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 32"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 32" 5-Light Gravity® LED Pro6 Light Bar, 5 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 32.875 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913069
• IP Rating: IP68

KCH-91307

• Weight: 25.000000
• Wattage Per Light: 21.36W
• Total Wattage: 128.16W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 10.68a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 15,048lm
• Lux Per Light: 5,772lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 4,089lx
• Candela Per Light: 577,000cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 408,882cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 639m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 39"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 39" 6-Light Gravity® LED Pro6 Light Bar, 6 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 39.125 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913076
• IP Rating: IP68

KCH-91314

• Weight: 30.000000
• Wattage Per Light: 21.36W
• Total Wattage: 149.52W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 12.46a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 17,556lm
• Lux Per Light: 7,215lx (Spot) / 1,550lx (Wide 40)
• Total Lux: 4,957lx
• Candela Per Light: 721,250cd (Spot) / 155,000cd (Wide 40)
• Total Candela: 495,657cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 704m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 45"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 45" 7-Light Gravity® LED Pro6 Light Bar, 7 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 45.625 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913144
• IP Rating: IP68

KCH-91308

• Weight: 32.000000
• Wattage Per Light: 21.36W
• Total Wattage: 170.88W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 14.24a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 20,064lm
• Lux Per Light: 868lx (Spot) / 309lx(Wide 40)
• Total Lux: 5,824lx
• Candela Per Light: 86,775cd (Spot) / 30,891cd (Wide 40)
• Total Candela: 582,432cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 763m
• Light Technology: LED
• Mount Location: Overhead
• Size of Products: 50"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 50" 8-Light Gravity® LED Pro6 Light Bar, 8 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 51.625 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913083
• IP Rating: IP68

KCH-91398

• Weight: 28.000000
• Wattage Per Light:  21.36W
• Total Wattage:  170.88W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 14.24a
• Voltage 9V-36V
• Lumens Per Light: : 2,508lm
• Total Lumens: : 20,064lm
• Lux Per Light:  868lx (Spot) / 309lx(Wide 40)
• Total Lux:  5,824lx
• Candela Per Light:  86,775cd (Spot) / 30,891cd (Wide 40)
• Total Candela:  582,432cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color:  White
• Beam Pattern: : Combo What's this?
• Beam Distance:  763 m
• Light Technology: : LED
• Mount Location: Overhead
• Size of Products: : 50"
• Material: : Aluminum Alloy
• Product Finish: Black
• Included Components 50" Radius Universal 8-Light Gravity® LED Pro6 Light Bar, 8 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color:  Black
• Product Dimensions: W: 51.625 " x H: 6.06 " x D: 3.33 "
• Tag Line: : Modular. Linkable. Curvable.
• UPC 084709913984
• IP Rating:  IP68

KCH-91315

• Weight: 30.000000
• Wattage Per Light: 21.36W
• Total Wattage: 192.24W
• Amp Draw Per Light: 1.78a
• Total Amp Draw: 16.02a
• Voltage: 9V-36V
• Lumens Per Light: 2,508lm
• Total Lumens: 22,572lm
• Lux Per Light: 868lx (Spot) / 309lx (Wide 40)
• Total Lux: 6,692lx
• Candela Per Light: 86,775cd (Spot) / 30,891cd (Wide 40)
• Total Candela: 669,207cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Combo
• Beam Distance: 818m
• Light Technology: LED
• Mount Location: Bumper, Overhead
• Size of Products: 57"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 57" 9-Light Gravity® LED Pro6 Light Bar, 9 x KC Pro6 light cover, Plug-n-Play wiring harness, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 56.625 " x H: 6.06 " x D: 3.33 "
• Tag Line: Modular. Linkable. Curvable.
• UPC: 084709913151
• IP Rating: IP68
