KC HiLiTES FLEX ERA LED Bar Master Pack

The KC FLEX ERA® LED Light Bar is designed to push the boundaries of what a light bar can be. Built as the successor to KC HiLiTES original FLEX Array light bars, this bar defies new limits of engineering while building on the strengths of KC HiLiTES previous platform. With high-output performance and a flexible design, the FE Bar is like nothing you've seen before.

From $599.99
Only %1 left
SKU
KCH-FELEDB_PARENT

Fire, LEO, EMS, Medical, and Military Discounts | Get Verified

Part # Description
KCH-0291 KC HiLiTES FLEX ERA LED Bar; 10" Master Pack
KCH-0292 KC HiLiTES FLEX ERA LED Bar; 20" Master Pack
KCH-0293 KC HiLiTES FLEX ERA LED Bar; 30" Master Pack
KCH-0294 KC HiLiTES FLEX ERA LED Bar; 40" Master Pack
KCH-0295 KC HiLiTES FLEX ERA LED Bar; 50" Master Pack

The KC FLEX ERA® LED Light Bar is designed to push the boundaries of what a light bar can be. Built as the successor to KC HiLiTES original FLEX Array light bars, this bar defies new limits of engineering while building on the strengths of KC HiLiTES previous platform. With high-output performance and a flexible design, the FE Bar is like nothing you've seen before.

Setting a new standard in beam quality and visibility, the KC FLEX ERA® LED Light Bar makes sure you see any obstacle on your trail. Take it up another notch with a flexible design that makes the bar linkable, curvable, and optic changeable. Of course, it stays true to its family with customizable aesthetics, tons of accessories to fine-tune it to your needs, and the legendary KC build quality. Reimagine what's possible with the FLEX ERA® LED Light Bar.

Features:

  • High-Output Performance for Unprecedented High-Speed Performance
  • Flexible Design to Adapt the Length, Curvature, and Optics to Your Needs
  • Master Kit includes all Beam Pattern Lenses:
      Pre-assembled in Combo Beam
      Spot Beam Lenses Included
  • Two Power Modes:
      Amber LED Backlight
      Full Power (off-road use only)
  • Customizable Aesthetics, because who doesn't want things to match?
  • Legendary KC Build Quality with the Adventure Further Guarantee

MASTER KIT
Gone are the days of guessing which beam pattern is best for you. The KC FLEX ERA® LED Light Bar Master Kit bundles the light + both beam pattern lenses + spare o-ring + black and yellow KC logo cover + a complete wiring kit for everything you need to spend less time in the garage and more time out on the trails. Keep the pre-installed Combo Beam Lens for the best all-around performance, or choose to swap to the included Spot Beam Lens for the greatest long-distance visibility.

CUSTOMIZABLE
KC HiLiTES get it, everyone loves to personalize their rig. KC HiLiTES tried and true FLEX LED® tradition ensures that you can customize the colored accent bezel to match your rig. The FE Bar bezels come standard in gold, but you can pick up the bezels in deep red, rich blue, or gloss black to suit your needs.

AMBER LED BACKLIGHT
The FE Bar helps you stand out in the crowd thanks to its Amber LED backlight. This can be used on-road or off-road, daytime or nighttime, and gives you an added touch of style.

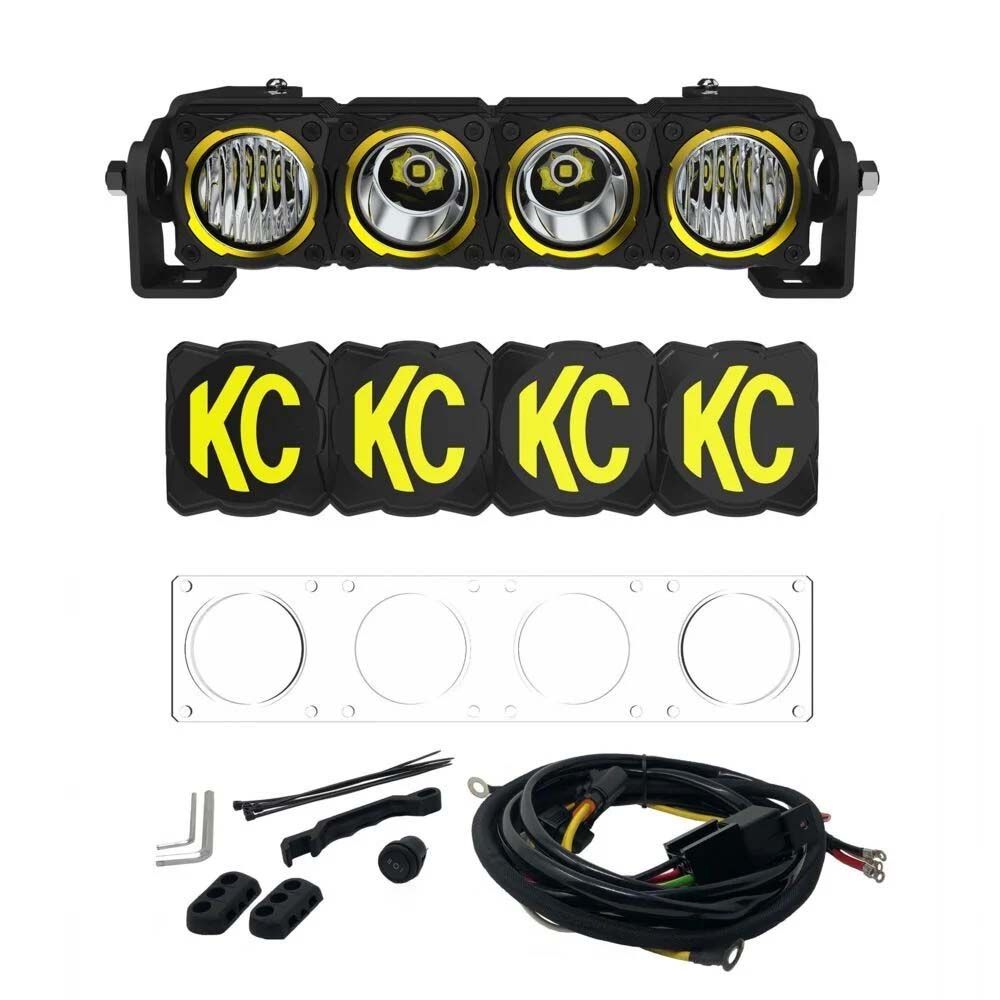

Includes:

  • (1) KC® FLEX ERA® LED Light Bar
  • (1) Combo Beam Lens (pre-installed)
  • (1) Spot Beam Lens
  • (1) Light Cover - Black with Yellow KC Logo
  • (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch

KCH-0291

LIGHT PERFORMANCE (10")

  • Lumens: 7,912 lm @5000K
  • LUX @ 10 meters: 1,610 lx (combo) / 1,800 lx (spot)
  • Candela: 161,000 cd (combo) / 180,000 cd (spot)
  • Beam Distance (Meters): 401 m (combo) / 424 m (spot)
  • Beam Pattern: Combo/Spot

SPECIFICATIONS (10")

  • Wattage: 12W (Amber Backlight) / 108W (High-Power)
  • Amp Draw @ 12V: 1.0A / 9.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Product Dimensions: W - 11.37" x H - 2.66" x D - 3.85"

KCH-0292

LIGHT PERFORMANCE (20")

  • Lumens: 15,824 lm @5000K
  • LUX @ 10 meters: 3,220 lx (combo) / 3,600 lx (spot)
  • Candela: 322,000 cd (combo) / 360,000 cd (spot)
  • Beam Distance (Meters): 567 m (combo) / 600 m (spot)
  • Beam Pattern: Combo/Spot

SPECIFICATIONS (20")

  • Wattage: 24W (Amber Backlight) / 216W (High-Power)
  • Amp Draw @ 12V: 2.0A / 18.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Straight Product Dimensions: W - 21.36" x H - 2.66" x D - 3.85"
  • Curved Product Dimensions: W - 21.35" x H - 2.66" x D - 3.85"

KCH-0293

LIGHT PERFORMANCE (30")

  • Lumens: 23,736 lm @5000K
  • LUX @ 10 meters: 4,830 lx (combo) / 5,400 lx (spot)
  • Candela: 483,000 cd (combo) / 540,000 cd (spot)
  • Beam Distance (Meters): 695 m (combo) / 735 m (spot)
  • Beam Pattern: Combo/Spot

SPECIFICATIONS (30")

  • Wattage: 36W (Amber Backlight) / 324W (High-Power)
  • Amp Draw @ 12V: 3.0A / 27.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Straight Product Dimensions: W - 31.36" x H - 2.66" x D - 3.85"
  • Curved Product Dimensions: W - 31.28" x H - 2.66" x D - 3.8

KCH-0294

LIGHT PERFORMANCE (40")

  • Lumens: 31,648 lm @5000K
  • LUX @ 10 meters: 6,440 lx (combo) / 7,200 lx (spot)
  • Candela: 644,000 cd (combo) / 720,000 cd (spot)
  • Beam Distance (Meters): 802 m (combo) / 849 m (spot)
  • Beam Pattern: Combo/Spot

SPECIFICATIONS (40")

  • Wattage: 36W (Amber Backlight) / 324W (High-Power)
  • Amp Draw @ 12V: 4.0A / 36.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Straight Product Dimensions: W - 41.36" x H - 2.66" x D - 3.85"
  • Curved Product Dimensions: W - 41.14" x H - 2.66" x D - 3.85"

KCH-0295

LIGHT PERFORMANCE (50")

  • Lumens: 39,560 lm @5000K
  • LUX @ 10 meters: 8,050 lx (combo) / 9,000 lx (spot)
  • Candela: 805,000 cd (combo) / 900,000 cd (spot)
  • Beam Distance (Meters): 897 m (combo) / 949 m (spot)
  • Beam Pattern: Combo/Spot

SPECIFICATIONS (50")

  • Wattage: 60W (Amber Backlight) / 540W (High-Power)
  • Amp Draw @ 12V: 5.0A / 45.0A
  • Voltage: 9V-36V
  • IP Rating: IP68
  • Straight Product Dimensions: W - 51.36" x H - 2.66" x D - 3.85"
  • Curved Product Dimensions: W - 50.89" x H - 2.66" x D - 3.85"
