KC HiLiTES Gravity Titan LED Multi-Light Bar

Name: KC HiLiTES Gravity Titan LED Multi-Light Bar
Brand: KC HiLiTES
Price: 1599.99 USD
Availability: OutOfStock

Be the first to review this product

Iconic Design Meets Unmatched Performance: Introducing the Gravity® Titan™ LED Light Bars. The Titan series elevates the beloved Pro6 lights, increasing brightness, expanding coverage, and integrating an Amber Dust Light for the ultimate, no-compromise lighting solution. Need we say more?

From $1,599.99

Only %1 left

SKU

KCH-GTLB_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
KCH-91413	KC HiLiTES Gravity Titan LED; 3-Light 20" Bar
KCH-91414	KC HiLiTES Gravity Titan LED; 4-Light 26" Bar
KCH-91415	KC HiLiTES Gravity Titan LED; 5-Light 32" Bar
KCH-91416	KC HiLiTES Gravity Titan LED; 6-Light 39" Bar
KCH-91417	KC HiLiTES Gravity Titan LED; 7-Light 45" Bar
KCH-91418	KC HiLiTES Gravity Titan LED; 8-Light 50" Bar
KCH-91419	KC HiLiTES Gravity Titan LED; 9-Light 57" Bar

The Gravity® Titan™ LED Light Bars revolutionize off-road lighting, merging KC's pioneering linkable and curvable design of the Pro6 but amping up the performance. At their heart lies the innovative Titan Core driving 3-Source LED optics, delivering a 1.3x larger Illumination Zone, 1.7x brighter output, and 1.3x more beam distance than the Gravity Pro6. At the flip of the switch, alter between High Power Mode for intense output and an integrated Amber Dust Light for others to easily see you in dusty conditions. Featuring a patented Pass-Through Front Cooling system, the Titan ensures peak performance and durability, even in high-heat, high-demand situations. After experiencing the unparalleled lighting power of the Gravity® Titan™, you'll never look back.

Features:

Dual Power Modes:

Amber LED Dust Light: Acts as a marker light to be seen with in low-visibility conditions.
High-Power Mode: Offers intense lighting for nighttime trail use.

Titan Core:

Patented Pass-Through Front Cooling: Provides superior thermal management.
3-Source LED Optics: Delivers comprehensive lighting coverage - short, mid, and long-range.
Linkable and Curvable: Patented Infinity Ring® system offers expandable widths and the option to curve or straighten your setup.
Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light.
MoistureBlock® Technology: An integrated plug built directly into the housing to keep water out, while maintaining a secure connection.

EXPERIENCE MEETS INNOVATION

The saga of Titan™ is one of enduring legacy and groundbreaking advancements. It started with the Gravity® Pro6 – a game-changer at a time when nothing else came close. Leveraging our rich experience, we took the nostalgia for classic round lights and the demand for LED light bars, and infused all of that together with cutting-edge GRD® optic technology. This move didn't just light up trails; it sparked a revolution in off-road lighting. Titan stands as a testament to our commitment to push boundaries and fuel off-road adventures.

TRAIL-READY PERFORMANCE

Enter the all-new Titan core. Delivering a massive leap in lighting performance, you'll get to the podium or back to camp with ease.

34.7% larger Illumination Zone than the Gravity Pro6
68.2% brighter peak intensity than the Gravity Pro6
26.8% more beam distance than the Gravity Pro6

BE SEEN IN STYLE

Make a statement with the Titan's integrated Amber LED Dust Light. This marker light stands out in low-visibility conditions like dust and snow, ensuring you're seen by others on the trail, day or night. Brighter than traditional backlights, it's designed not just for function, but for flair. While it may not replace a forward projecting light, it excels in making sure you're visible and safe in challenging environments. Turn it on, and it's not just a light – it's a statement.

INFINITY RING

The industry-first Infinity Ring system allows you to customize your light bar. Like Legos® for grown-ups, it offers expandable widths, modular beam shapes, and the option to curve or straighten your setup. Create a custom radius to change the way your beams display. The configuration is up to you. Plus, if a light on your light bar ever gets damaged, switching it out is simple (unlike other, non-modular lightbars which require the entire bar to be replaced).

POWER IN. WATER OUT. MOISTUREBLOCK® TECHNOLOGY.

An innovative wiring plug built directly into the housing features MoistureBlock® technology in partnership with DSM&T. This keeps all the bad stuff out, while ensuring the Titan maintains a secure and weather-proof connection despite what the trails throw at you. Don't even bother looking up the weather report.

THE PERFECT BLEND

The fusion of multiple beam patterns into one bar brings together the far-reaching precision of Spot Beams with the expansive coverage of Wide-40 Beams, ensuring total illumination in every scenario. Whether you're racing through the desert in Baja, cruising forest trails, or navigating rugged mountain paths, this light bar leaves nothing in the shadows.

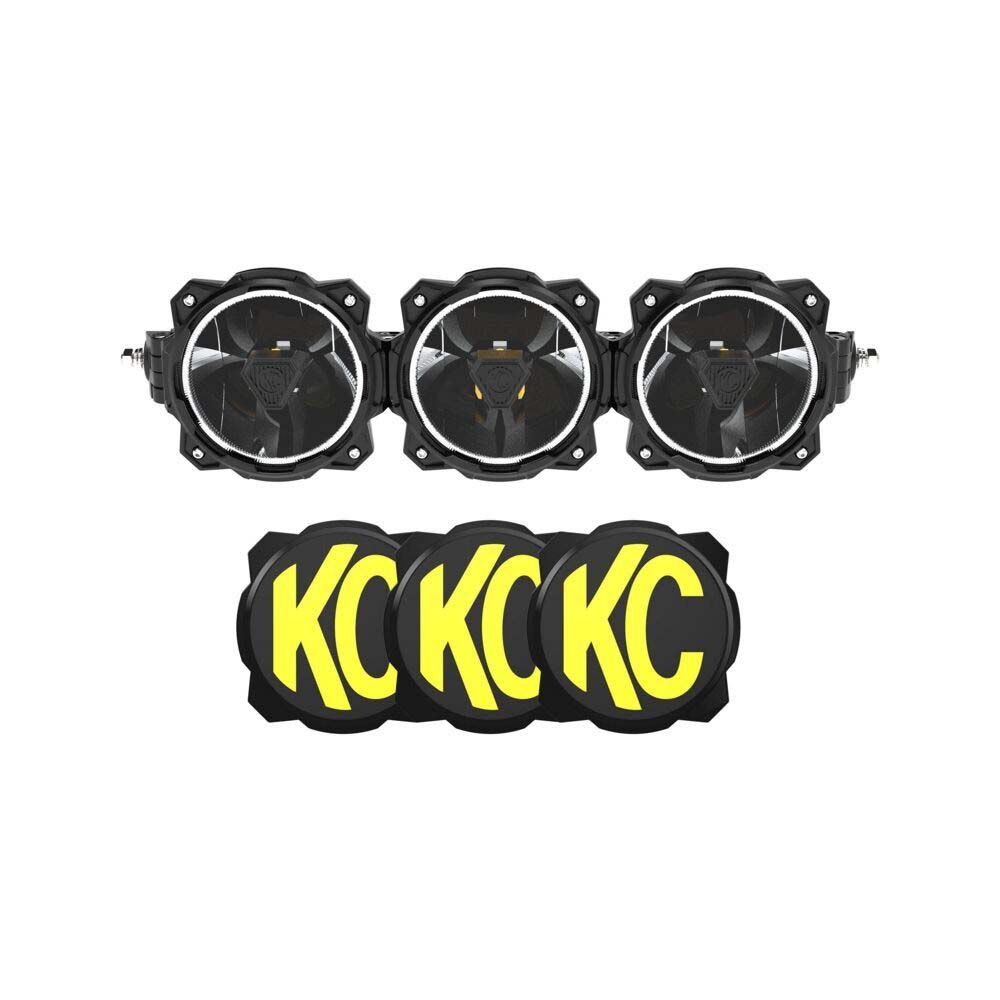

KCH-91413

Includes:

(1) 20" Gravity® Titan™ LED Light Bar - 3-Light
(3) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Gravity® Titan 3-Light Light Bar Daisy-Chain Back Harness
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(4) R-Type Cable Clamp
(4) M4-0.7x6mm Phillips Screw

Specifications:

Weight: 13.500000
Wattage Per Light: 39W
Total Wattage: 118W
Amp Draw Per Light: 3.29 a
Total Amp Draw: 9.87 a
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 8,916 lm
Lux Per Light: 1,443lx (Spot) / 1,550lx (Wide 40)
Total Lux: 2,993 lx
Candela Per Light: 144,250cd (Spot) / 155,000cd (Wide 40)
Total Candela: 299,250 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 547 m
Light Technology: LED
Mount Location: Bumper, Overhead
Size of Products: 20"
Material: Aluminum Alloy
Included Components: 1 x 20" Gravity® Titan™ LED Light Bar - 3-Light, 3 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914134
IP Rating: IP68

KCH-91414

Includes:

(1) 26" Gravity® Titan™ LED Light Bar - 4-Light
(4) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Gravity® Titan 4-Light Light Bar Daisy-Chain Back Harness
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(5) R-Type Cable Clamp
(5) M4-0.7x6mm Phillips Screw

Specifications:

Weight: 20.000000
Wattage Per Light: 39W
Total Wattage: 158W
Amp Draw Per Light: 3.29 a
Total Amp Draw: 13.16 a
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 11,888 lm
Lux Per Light: 2,886lx (Spot) / 1,550lx (Wide 40)
Total Lux: 4,435 lx
Candela Per Light: 288,500cd (Spot) / 155,000cd (Wide 40)
Total Candela: 443,500 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 666 m
Light Technology: LED
Mount Location: Bumper, Overhead
Size of Products: 26"
Material: Aluminum Alloy
Included Components: 1 x 26" Gravity® Titan™ LED Light Bar - 4-Light, 4 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914141
IP Rating: IP68

KCH-91415

Includes:

(1) 32" Gravity® Titan™ LED Light Bar - 5-Light
(5) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Gravity® Titan 5-Light Light Bar Daisy-Chain Back Harness
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(6) R-Type Cable Clamp
(6) M4-0.7x6mm Phillips Screw

Specifications:

Weight: 27.000000
Wattage Per Light: 39W
Total Wattage: 197W
Amp Draw Per Light: 3.29 a
Total Amp Draw: 16.45 a
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 14,860 lm
Lux Per Light: 4,329lx (Spot) / 1,550lx (Wide 40)
Total Lux: 5,878 lx
Candela Per Light: 432,750cd (Spot) / 155,000cd (Wide 40)
Total Candela: 587,750 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 767 m
Light Technology: LED
Mount Location: Bumper, Overhead
Size of Products: 32"
Material: Aluminum Alloy
Included Components: 1 x 32" Gravity® Titan™ LED Light Bar - 5-Light, 5 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914158
IP Rating: IP68

KCH-91416

Includes:

(1) 39" Gravity® Titan™ LED Light Bar - 6-Light
(6) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Gravity® Titan 6-Light Light Bar Daisy-Chain Back Harness
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(1) Bumpstop
(6) R-Type Cable Clamp
(6) M4-0.7x6mm Phillips Screw

Specifications:

Weight: 32.400000
Wattage Per Light: 39W
Total Wattage: 237W
Amp Draw Per Light: 3.29 a
Total Amp Draw: 19.74 a
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 17,832 lm
Lux Per Light: 5,772lx (Spot) / 1,550lx (Wide 40)
Total Lux: 7,320 lx
Candela Per Light: 577,000cd (Spot) / 155,000cd (Wide 40)
Total Candela: 732,000 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 856 m
Light Technology: LED
Mount Location: Bumper, Overhead
Size of Products: 39"
Material: Aluminum Alloy
Included Components: 1 x 39" Gravity® Titan™ LED Light Bar - 6-Light, 6 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914165
IP Rating: IP68

KCH-91417

Includes:

(1) 45" Gravity® Titan™ LED Light Bar - 7-Light
(7) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Gravity® Titan 7-Light Light Bar Daisy-Chain Back Harness
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(1) Bumpstop
(7) R-Type Cable Clamp
(7) M4-0.7x6mm Phillips Screw

Specifications:

Weight: 35.000000
Wattage Per Light: 39W
Total Wattage: 276W
Amp Draw Per Light: 3.29 a
Total Amp Draw: 23.03 a
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 20,804 lm
Lux Per Light: 7,215lx (Spot) / 1,550lx (Wide 40)
Total Lux: 8,763 lx
Candela Per Light: 721,250cd (Spot) / 155,000cd (Wide 40)
Total Candela: 876,250 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 936 m
Light Technology: LED
Mount Location: Overhead
Size of Products: 45"
Material: Aluminum Alloy
Included Components: 1 x 45" Gravity® Titan™ LED Light Bar - 7-Light, 7 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914172
IP Rating: IP68

KCH-91418

Includes:

(1) 50" Gravity® Titan™ LED Light Bar - 8-Light
(8) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(1) Bumpstop

Specificatins:

Weight: 37.500000
Wattage Per Light: 11.2W (Amber) / 39.48W (White)
Total Wattage: 89.6W (Amber) /315.84W (White)
Amp Draw Per Light: 0.93 a (Amber) / 3.29 a (White)
Total Amp Draw: 7.47 a (Amber) / 26.32 a (White)
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 23,776 lm
Lux Per Light: 1,443lx (Spot) / 775lx (Wide 40)
Total Lux: 10,205 lx
Candela Per Light: 144,250cd (Spot) / 77,500cd (Wide 40)
Total Candela: 1,020,500 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 1,010 m
Light Technology: LED
Mount Location: Overhead
Size of Products: 50"
Material: Aluminum Alloy
Included Components: 1 x 50" Gravity® Titan™ LED Light Bar - 8-Light, 8 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Product Dimensions: W: 51.58 " x H: 6.05 " x D: 3.27 "
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914189
IP Rating: IP68

KCH-91419

Includes:

(1) 57" Gravity® Titan™ LED Light Bar - 9-Light
(9) Gravity 6" Light Cover - Black with Yellow KC Logo
(1) Complete Plug-N-Play Wiring Harness with 3-Position Switch
(1) Cover Removal Tool
(2) Bumpstop

Specifications:

Weight: 39.350000
Wattage Per Light: 11.2W (Amber) / 39.48W (White)
Total Wattage: 100.8W (Amber) / 355.32W (White)
Amp Draw Per Light: 0.93 a (Amber) / 3.29 a (White)
Total Amp Draw: 8.40 a (Amber) / 29.61 a (White)
Voltage: 9V-36V
Lumens Per Light: 2,972 lm
Total Lumens: 26,748 lm
Lux Per Light: 10,101lx (Spot) / 1,550lx (Wide 40)
Total Lux: 11,648 lx
Candela Per Light: 144,250cd (Spot) / 77,500cd (Wide 40)
Total Candela: 1,164,750 cd
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White
Beam Pattern: Combo What's this?
Beam Distance: 1,079 m
Light Technology: LED
Mount Location: Overhead
Size of Products: 57"
Material: Aluminum Alloy
Included Components: 1 x 57" Gravity® Titan™ LED Light Bar - 9-Light, 9 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware
Color: Black
Tag Line: Iconic Design. Unmatched Performance.
UPC: 084709914196
IP Rating: IP68
