KC HiLiTES 6" Daylighter with Gravity LED G6 Pair Pack System

KC's 6" Gravity LED Daylighter available with bright CREE LEDs in a spot pattern for focused width and distance (Spot) or 20w LED bulbs in a SAE legal driving pattern (Driving). Black steel housing, polycarbonate lens and FLEXible base for easy aim. System includes wiring harness, switches, and yellow covers.. Black steel housing and polycarbonate lens with FLEXible base for easy aiming. Pair includes complete wiring harness, switches, and ABS stone guards.

Features:

• 2 x 20W Gravity® LED G6 optical inserts
• Black Powder Coated Steel housing
• Hard Coated Polycarbonate Lens
• Spot Beam Pattern or Driving Beam Pattern

LIGHT PERFORMANCE (PER LIGHT):

• Raw Lumens: 2,300 lm
• Lux @ 10 Meters: 1,310 lx
• Candela: 131,000 cd
• Beam Distance (Meters): 724m

SPECIFICATIONS (PER LIGHT):

• Wattage: 20W
• LED Source: CREE XPL HD LED
• Amp Draw: 1.63A
• Voltage: 9V-32V
• IP Rating: IP67
• Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

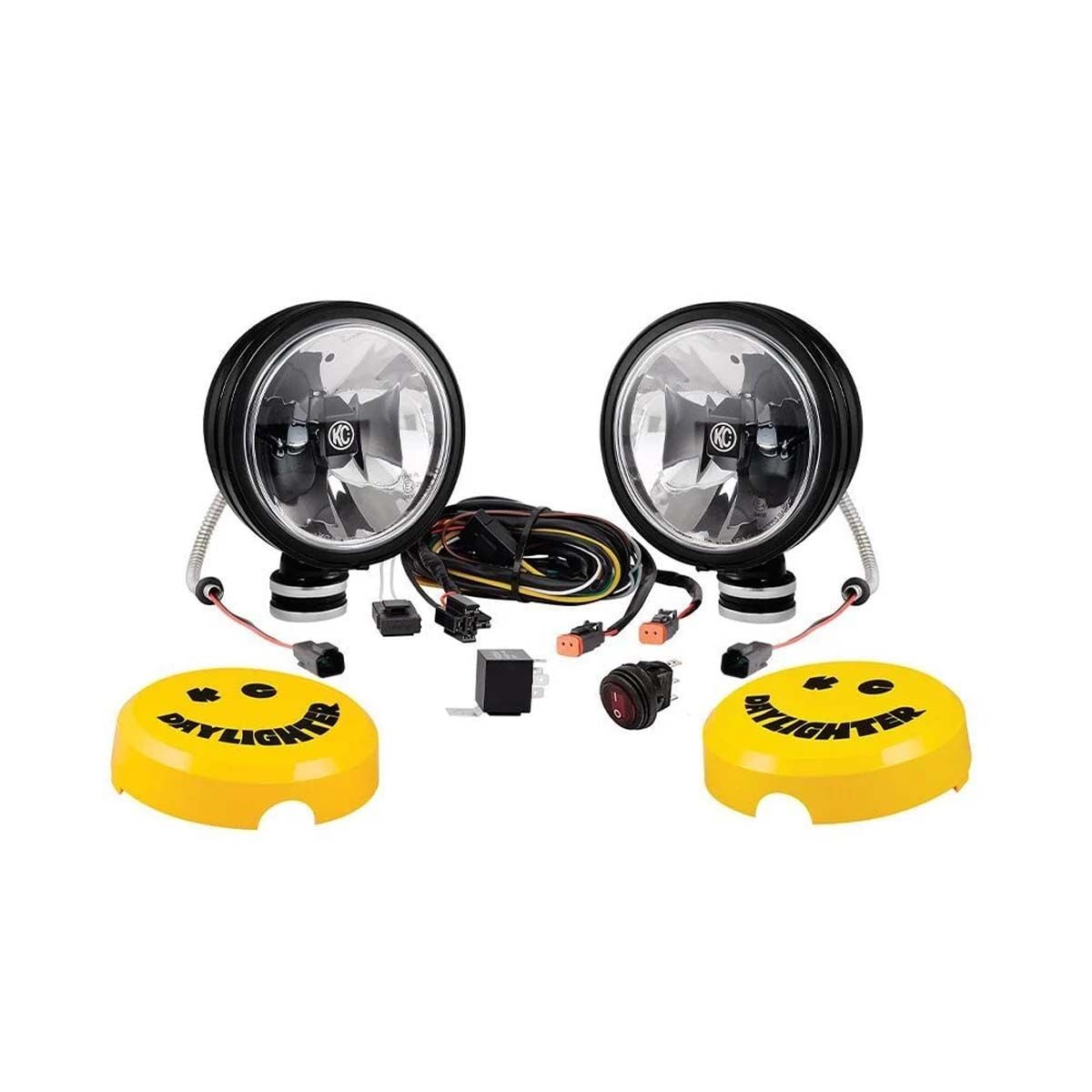

PARTS INCLUDED:

• (2) 20W 6" Gravity® LED Daylighter lights
• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• (2) Protective KC Daylighter light Guards
• 30A Illuminated Switch w/ Switch Panel

GRAVITY® GRD EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by KC HiLiTES G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. KC HiLiTES patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES

• Spot Beam - Provides focused bright light for maximum forward distance and high-speed visibility.
• Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC HiLiTES time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with KC HiLiTES IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

Specifications:

KCH-0651

• Weight: 8.000000
• Wattage Per Light: 20W
• Total Wattage: 40W
• Amp Draw Per Light: 3.3 a
• Voltage: 9V-32V
• Lumens Per Light: 2,300 lm
• Lux Per Light: 2,150 lx
• Candela Per Light: 215,000 cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Spot
• Beam Distance: 972 m
• Light Technology: LED
• Mount Location: A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
• Size of Products: 6"
• Material: Stainless Steel
• Product Finish: Black
• Included Components: 2 x Gravity LED™ Daylighter(Black Steel) Spot Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware
• Color: Black
• Product Dimensions: W: 6.22 " x H: 8.42 " x D: 5.38 "
• UPC: 084709006518
• IP Rating: IP67

KCH-0653

• Weight: 8.000000
• Compliance DOT/SAE/ECE: SAE J581, ECE R112 (Driving)
• Wattage Per Light: 20W
• Total Wattage: 40W
• Amp Draw Per Light: 3.3 a
• Voltage: 9V-32V
• Lumens Per Light: 2,300 lm
• Lux Per Light: 1,310 lx
• Candela Per Light: 131,000 cd
• Light Temp: 5000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Driving
• Beam Distance: 724 m
• Light Technology: LED
• Mount Location: A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
• Size of Products: 6"
• Material: Stainless Steel
• Product Finish: Black
• Included Components: 2 x Gravity LED™ Daylighter(Black Steel) SAE/ECE Driving Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware
• Color: Black
• Product Dimensions: W: 6.22 " x H: 8.42 " x D: 5.38 "
• UPC: 084709006532
• IP Rating: IP67
