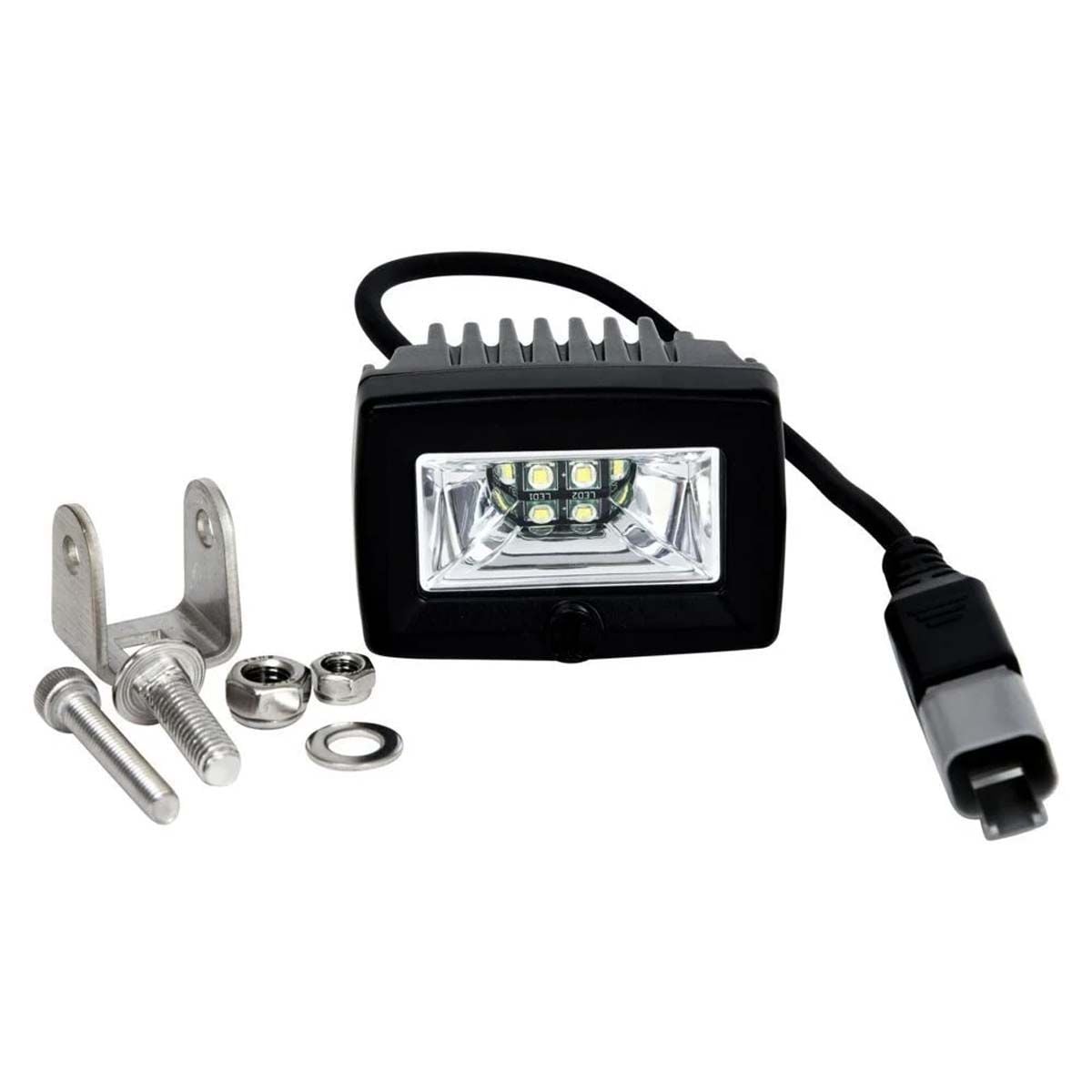

KC HiLiTES C2 LED 2" Flood Beam

KC's 2" C2 area flood light uses an ultra-wide 120-degree Flood Beam Pattern to provide powerful peripheral illumination around your vehicle, greatly improving night time visibility.

KC's C2 Backup flood light uses an ultra-wide 120-degree Flood Beam Pattern to provide powerful peripheral illumination around your vehicle, improving night time visibility when reversing.

Features:

• 20W 2" C2 LED Area Light
• Durable Diecast 6063 Aluminum Housing
• UV Resistant Black Powder Coated Housing
• Dual Oversized Heat Sink Design for Cooler, Brighter and Longer Lasting LED Performance
• Gore® Military Grade Breather Membrane to prevent condensation and entry of dust/contaminants
• Optically Clear and Shatter Proof Lexan Lens
• Ideal for Illuminating Immediate Areas as a Work or Effective Backup Reverse light
• 120° Area Flood Beam Pattern For Evenly Distributed Lighting

LIGHT PERFORMANCE (PER LIGHT):

• RAW Lumens: 2,200 lm
• LUX @ 10 meters: 27 lx
• Candela: 2,700 cd
• Beam Distance (Meters): 104m

SPECIFICATIONS (PER LIGHT):

• Wattage: 20W
• LED Source: CREE XMK
• LED Color: 6000K
• Amp Draw: 1.6A
• Voltage: 9V-36V
• IP Rating: IP67
• Product Dimensions: W - 2.85" x H - 2.21/1.91" x D - 2.17"

Notes:

Please keep in mind that the wiring harness is not included in the Single version of this light, but it is included in the Pair Pack / System version.

OPTICAL PERFORMANCE AND LED EFFICIENCY
KC's C2 utilizes ultra-wide 120-degree flood reflector optics to provide smooth and evenly distributed light across a horizontal field of vision. This light is ideal for illuminating immediate areas as a work or flood light, dramatically improving nighttime safety and visibility.

DURABLE CONSTRUCTION FOR RELIABLE LIGHT PERFORMANCE
Constructed from a lightweight military-grade (US MIL-810-STD) IP67 rated sealed Aluminum Die-Cast Housing with shatterproof GE® Lexan lens for an impenetrable, waterproof housing. The C2 flood light was built to last, utilizing advanced Dual Heat-Sink design for maximum heat dissipation to ensure optimum light performance for up to 50,000 hours.

Specifications:

KCH-0328 / KCH-1328

• Weight: 1.250000
• Wattage Per Light: 20W
• Total Wattage: 20W
• Amp Draw Per Light: 1.67 a
• Total Amp Draw: 1.67 a
• Voltage: 9V-36V
• Lumens Per Light: 2,200 lm
• Total Lumens: 2,200 lm
• Lux Per Light: 27 lx
• Candela Per Light: 2,700 cd
• Total Candela: 2,700 cd
• Light Temp: 6000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Flood
• Beam Distance: 104 m
• Light Technology: LED
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 2"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 2" C2 LED C-Series LED Scene Light
• Color: Black
• Product Dimensions: W: 2.85" x H: " x D: 2.17"
• IP Rating: IP67

KCH-0519 / KCH-1519

• Weight: 4.000000
• Wattage Per Light: 20W
• Total Wattage: 40W
• Amp Draw Per Light: 1.67 a
• Total Amp Draw: 3.3 a
• Voltage: 9V-36V
• Lumens Per Light: 2,200 lm
• Total Lumens: 4,400 lm
• Lux Per Light: 27 lx
• Candela Per Light: 2,700 cd
• Total Candela: 2,700 cd
• Light Temp: 6000 K
• Lens Color: Clear
• LED Color: White
• Beam Pattern: Flood
• Beam Distance: 104 m
• Light Technology: LED
• Package Options: Includes Wiring
• Mount Location: A-Pillar / Ditch, Bumper, Overhead
• Size of Products: 2"
• Material: Aluminum Alloy
• Product Finish: Black
• Included Components: 2 x 2" C2 LED C-Series LED Scene Light, Wire Harness with weatherproof DT
• connectors, Illuminated LED light switch
• Color: Black
• Product Dimensions: W: 2.85" x H: " x D: 2.17"
• IP Rating: IP67
